Hey all, I'm stripping out my vt 5ltr to race car spec. I have stripped out all the unnecessary wiring from inside the car including the bcm, fan and heating, the dash, airbags, central locking, everything not required. I bought a vt 5ltr chip from commodoregear off ebay that has vats removed and have installed the it into the pcm. I have also relocated the battery to the boot and wired up the starter and alternator correctly back to the original engine bay fuse box. I have installed an igntion switch and push button stater. The ignition switch is connected to the pink/black wire which powers the engine control relay and the fuel pump. It also powers the push button starter. The push button starter is connected to the red/white wire to the start relay via fuse 10
When I turn on the ignition the fuel pump primes for a second then turns off, I push the start button and nothing happens although the wire is pushing 12.5volts to start relay. So I tried removing the start relay and bridged the main wires and the engine started but won't keep running
I tested spark and there is plenty the and continues to spark as the engine is turned over so that is working fine. I then put a test light across and injector plug and nothing
So my questions are
1. Could the chip be faulty or not have vats removed as the engine doesn't continue to run?
2. It seems like the pcm isn't grounding the start relay (grey wire to pcm feom relay)
3. Am I missing a wire somewhere to ground the start relay???

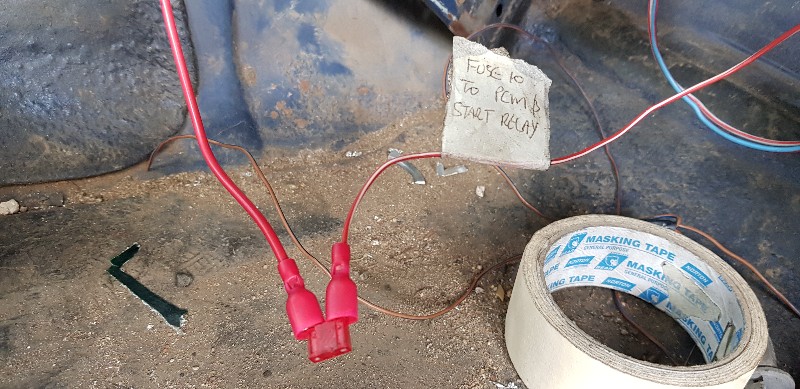

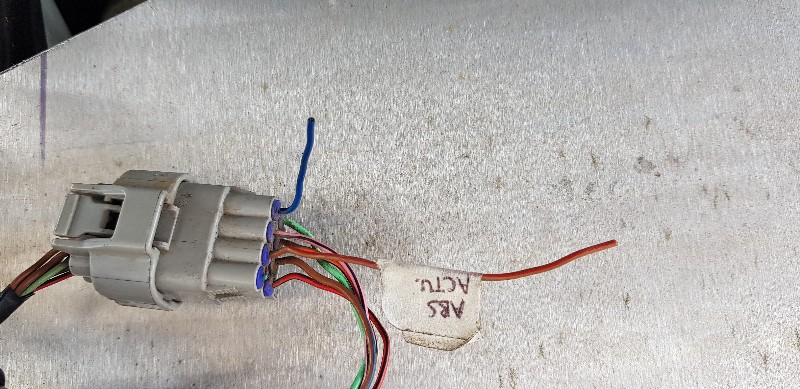

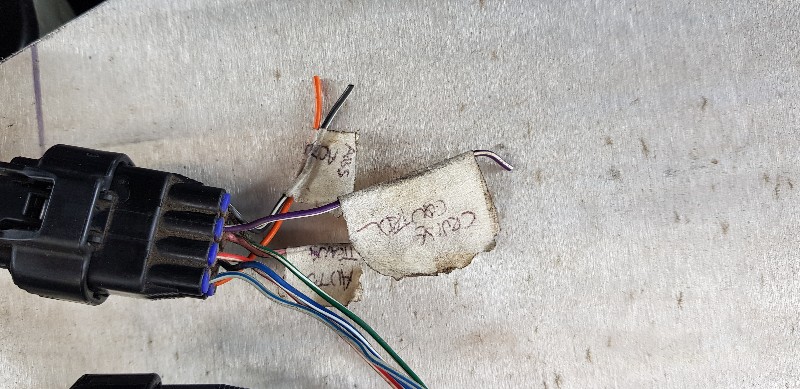

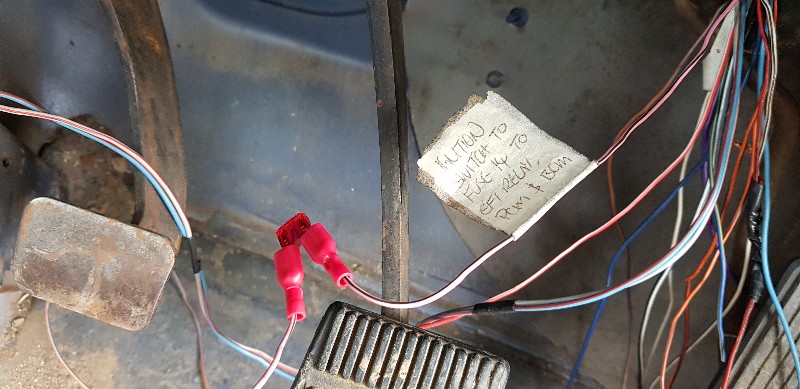

Pics are of the pcm harness plugs showing wires that were discarded and of ignition wire (pink/black) and start wire (red/white)
Please help
VT 5ltr race car wiring
VT 5ltr race car wiring
- Attachments
-
- 20190120_085553-800x389.jpg (123.9 KiB) Viewed 3982 times
-
- 20190120_085641-800x389.jpg (117.33 KiB) Viewed 3982 times
-
- 20190120_085720-800x389.jpg (102.85 KiB) Viewed 3982 times
-
- 20190120_085853-800x389.jpg (96.98 KiB) Viewed 3982 times
-
- 20190120_085909-800x389.jpg (122.76 KiB) Viewed 3982 times
-
- Posts: 591
- Joined: Thu Nov 03, 2011 7:57 pm
- cars: hsv enhanced vs ss
vt xu6
fb holden
toyota landcruiser
vt ss s1 - Location: perth wa
Re: VT 5ltr race car wiring
The pcm should ground that relay when vats is clear. The fact the starter relay isn’t earthing and it fires and stops sounds like vats is certainly still on.
Just my thoughts anyway..
Just my thoughts anyway..
-
- Posts: 483
- Joined: Thu May 03, 2012 10:50 pm
- cars: HZ One Tonner
VE Ute - Location: Castlemaine, Vic
Re: VT 5ltr race car wiring
Definitely sounds like VATS
-
- Posts: 591
- Joined: Thu Nov 03, 2011 7:57 pm
- cars: hsv enhanced vs ss
vt xu6
fb holden
toyota landcruiser
vt ss s1 - Location: perth wa
Re: VT 5ltr race car wiring
Also the pink and black wire( I think it’s the one marked auto) has to get switched ign power as well. From memory this runs power for the oxygen sensors and maf.
Just make sure that terminals B8 and A8 have power.
Just make sure that terminals B8 and A8 have power.
Re: VT 5ltr race car wiring
Thanks guys. I was thinking vats but just wasn't quite sure. First attempt at anything like this but I made sure I was pretty thorough with following the wiring diagrams to get everything right and only remove what was required
Vs ss, B8 and A8 are the orange/black wire from the pcm to the harness connector YE112 (grey connector in the top photo) which is still definitely connected
The wire marked auto on connector YE110 (2nd top photo) has no wire coming from the pcm (other side of connector) and had no fuse (f32) in relay/fuse panel that it was connected to. The pink/black wire is connected from the ignition switch to the efi relay and also branches off to power the pcm.
I have a replacement memcal coming which will hopefully rectify all this
Thanks again
Vs ss, B8 and A8 are the orange/black wire from the pcm to the harness connector YE112 (grey connector in the top photo) which is still definitely connected
The wire marked auto on connector YE110 (2nd top photo) has no wire coming from the pcm (other side of connector) and had no fuse (f32) in relay/fuse panel that it was connected to. The pink/black wire is connected from the ignition switch to the efi relay and also branches off to power the pcm.
I have a replacement memcal coming which will hopefully rectify all this
Thanks again
-
- Posts: 591
- Joined: Thu Nov 03, 2011 7:57 pm
- cars: hsv enhanced vs ss
vt xu6
fb holden
toyota landcruiser
vt ss s1 - Location: perth wa
Re: VT 5ltr race car wiring
Ok cool, the fact it’s priming is a good indication that the wirings correct but just wanted to check. But your certainly on to it, so anyhow let us know how you get on. Cheers.
Re: VT 5ltr race car wiring
New memcal arrived today. Fired up with push button starter and ran a treat!
