VZ Ute speedo not working
- Madmatt2006
- Posts: 369
- Joined: Fri Aug 31, 2018 2:48 pm
- cars: VZ SVZ Commodore
VH Commodore
JZZ30 Soarer GTT - Location: Katandra West
- Contact:
Re: VZ Ute speedo not working
Thank you Delcowizzid I will try this on the weekend and post back the results, once again thank you very much for helping me
- Madmatt2006
- Posts: 369
- Joined: Fri Aug 31, 2018 2:48 pm
- cars: VZ SVZ Commodore
VH Commodore
JZZ30 Soarer GTT - Location: Katandra West
- Contact:
Re: VZ Ute speedo not working
Hi Guy's sorry to take so long to post back. I unplugged the gearbox wiring so I could get a better look, it's still plugged into the engine loom for testing.
Just needed to clarify is it the black and white wire for signal? there is an orange, pink and blue wire also. I need to make sure I'm testing right.

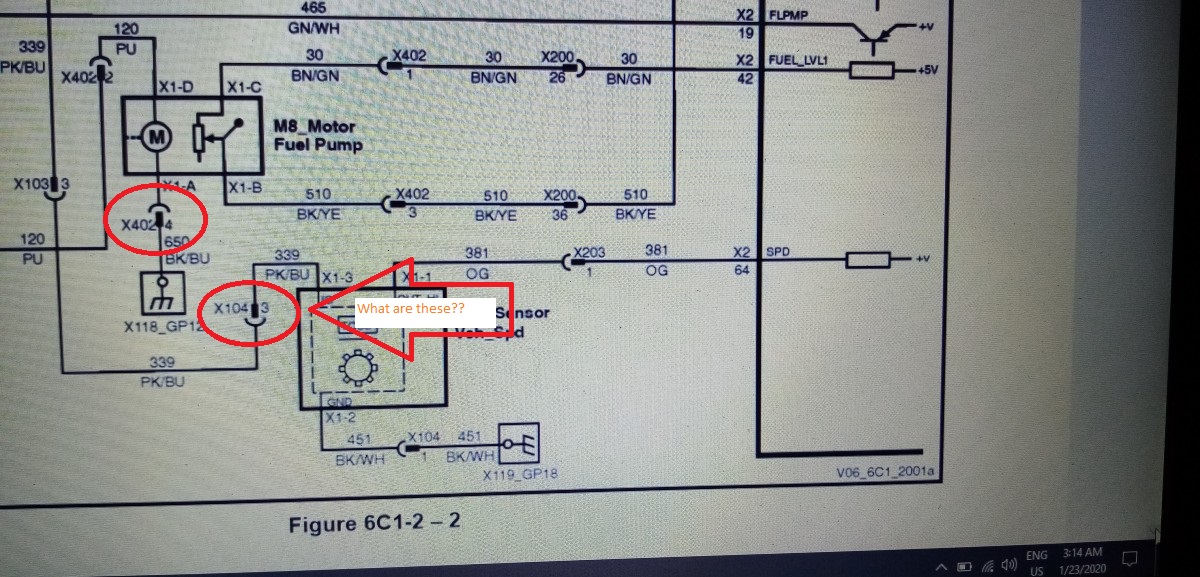

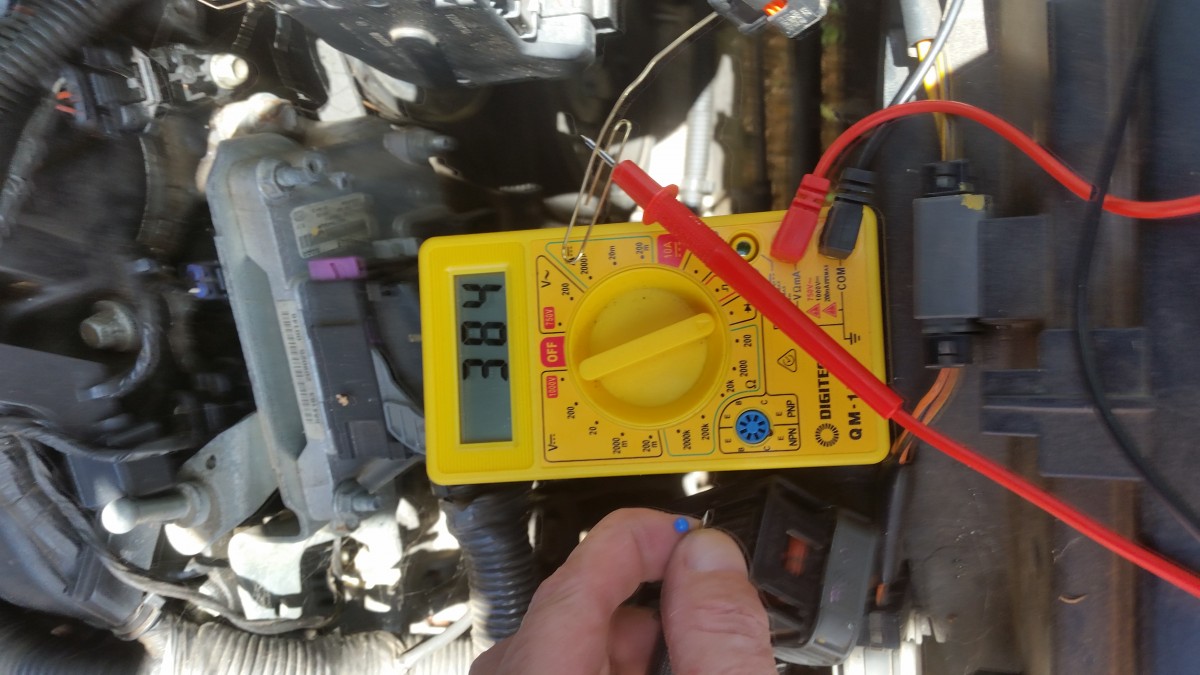

When I test the black white wire back to pin 64 for polarity the meter get a reading 384 should be 001 if polarity is right

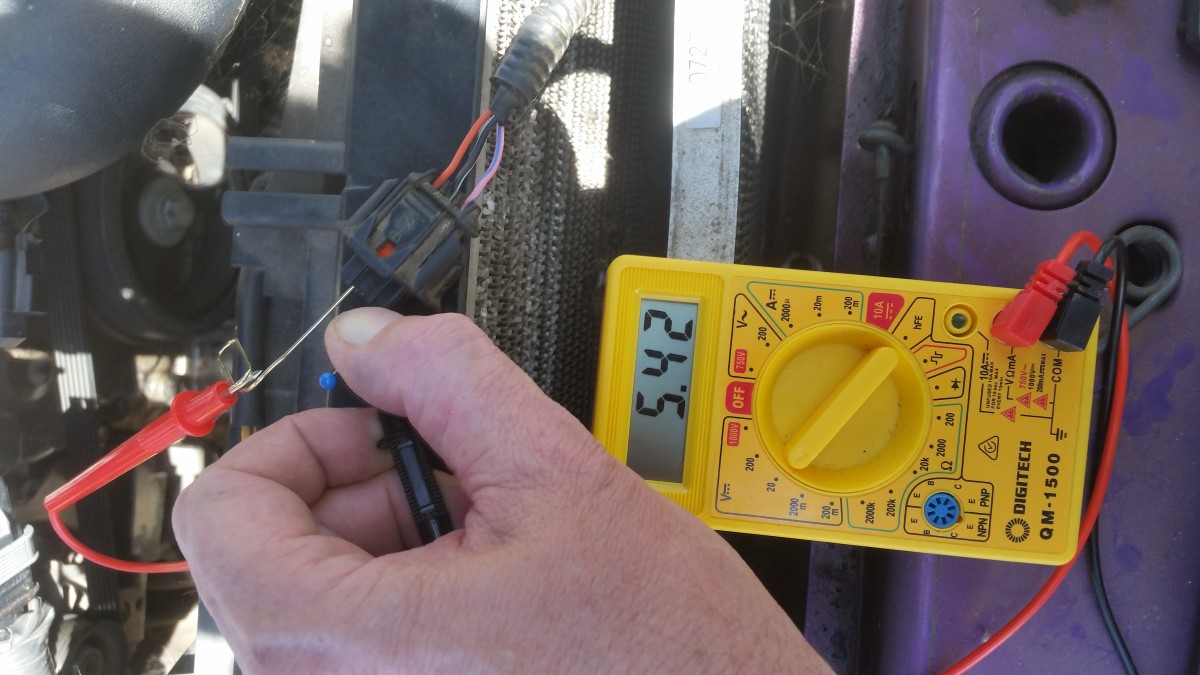

if the black and white wire is signal, the pink and blue wire and orange only put's out 5.42v need to confirm
black white wire =
orange wire =
pink and blue wire =

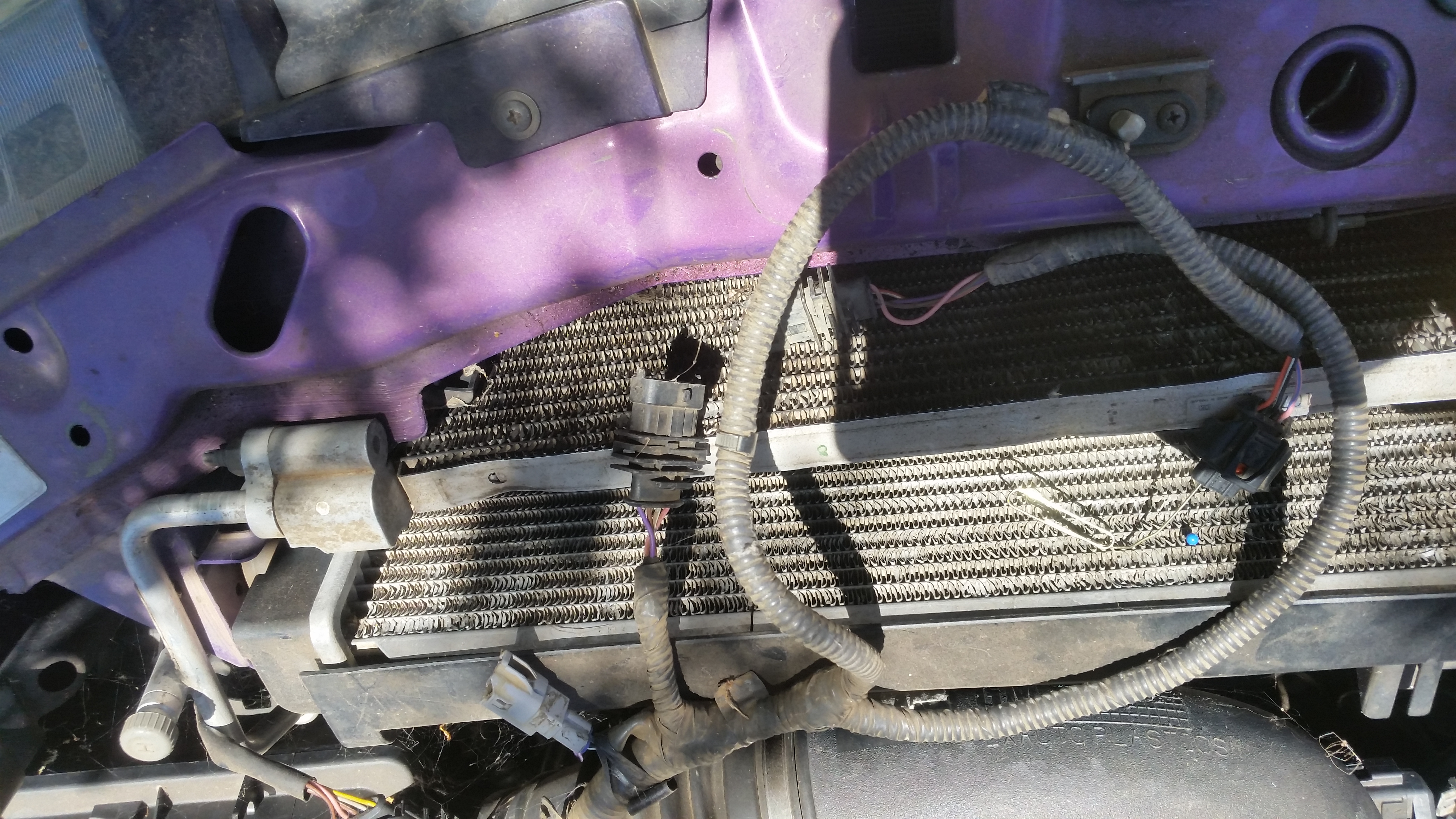

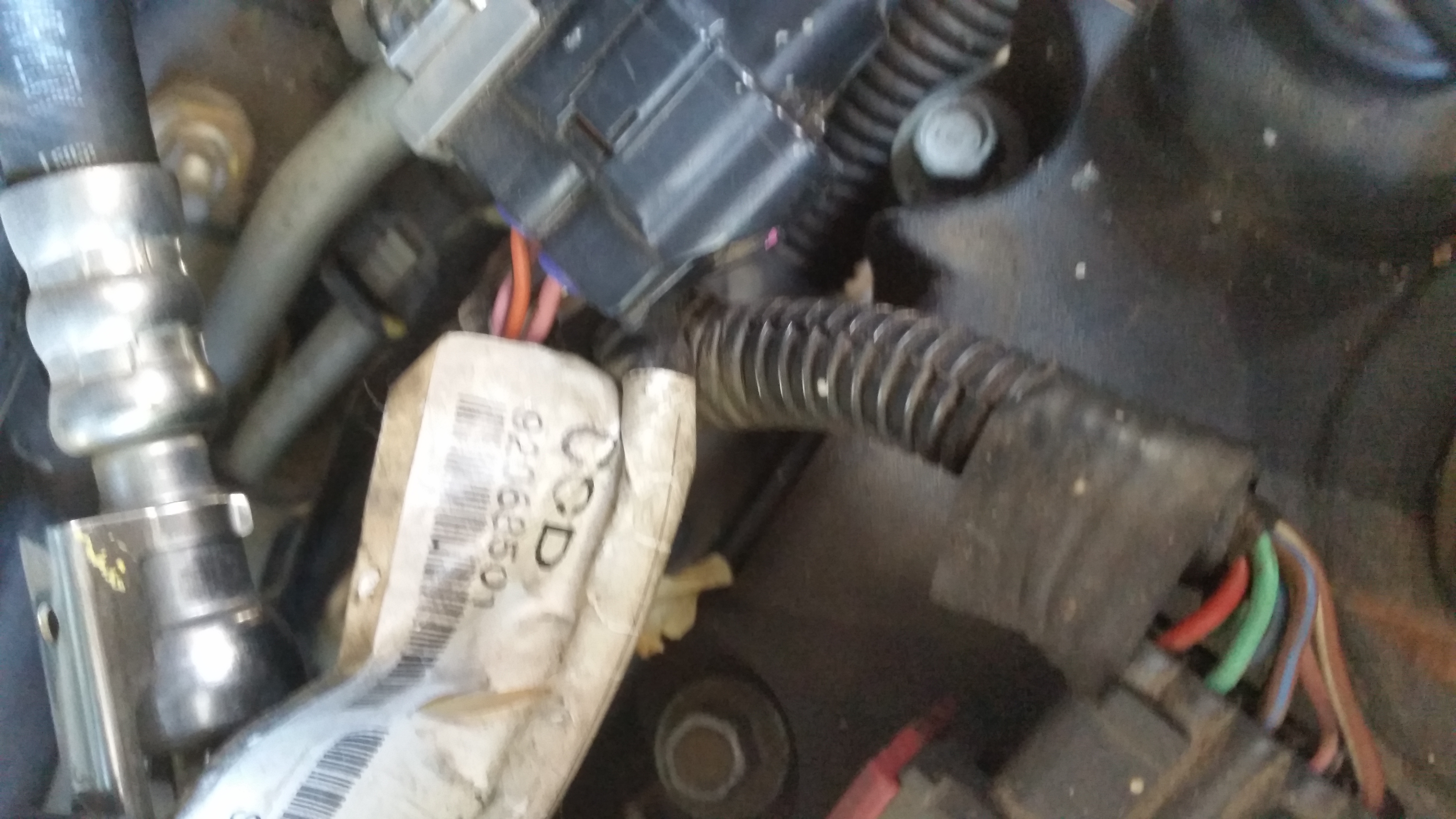

also in the picture below the plug on the right is the gearbox loom, left side is where it plugs onto engine loom I see no orange wire on the left. so I looked around the orange wire from the speed sensor seems to go into the plug under the glove box..

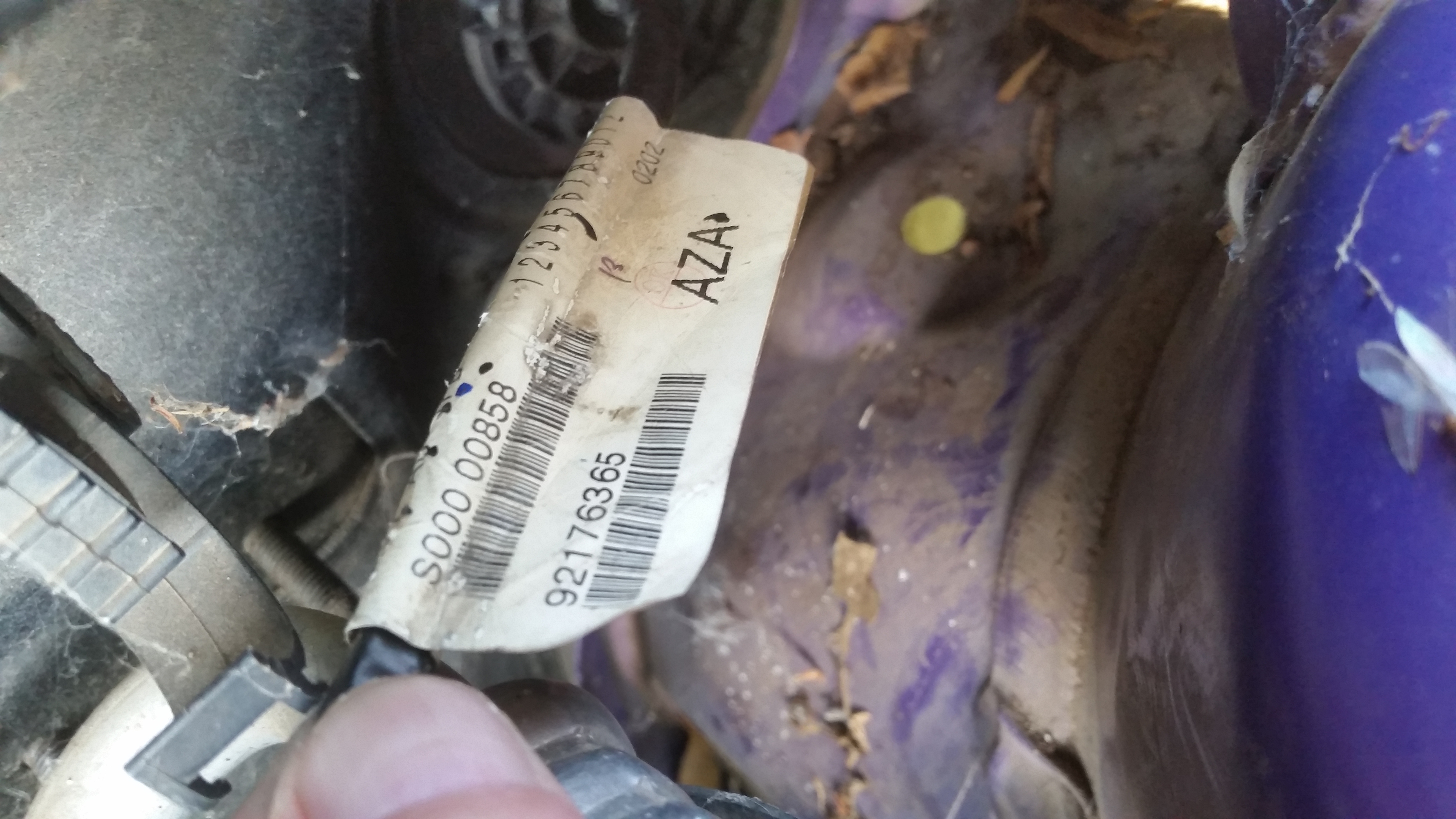

loom numbers
box 92176365 engine 92068501
Just needed to clarify is it the black and white wire for signal? there is an orange, pink and blue wire also. I need to make sure I'm testing right.
When I test the black white wire back to pin 64 for polarity the meter get a reading 384 should be 001 if polarity is right
if the black and white wire is signal, the pink and blue wire and orange only put's out 5.42v need to confirm
black white wire =
orange wire =
pink and blue wire =
also in the picture below the plug on the right is the gearbox loom, left side is where it plugs onto engine loom I see no orange wire on the left. so I looked around the orange wire from the speed sensor seems to go into the plug under the glove box..
loom numbers
box 92176365 engine 92068501
- Madmatt2006
- Posts: 369
- Joined: Fri Aug 31, 2018 2:48 pm
- cars: VZ SVZ Commodore
VH Commodore
JZZ30 Soarer GTT - Location: Katandra West
- Contact:
Re: VZ Ute speedo not working
Deerr I'm so stupid it was in your post I look like an idiot!!delcowizzid wrote:Here you go fired up the laptop at 3am lol
Pin 64 on x2 which is the ecu plug that goes to the body is vss signal in most likely via the big white loom plug behind the glove box where the auto loom and tcm plug into the dash loom after coming through the firewall. pin 22 on the same ecu plug is to the dash
Now I know og = orange and it don't make it to pin 64 on the ECU
Black white is earth
pink blue is power
I guess PU/WH is purple white from pin 22 on ecu to speedo
Man I feel so dumb now, that's a brain fart
Now I stuck the clutch in and put brain in first, I should be able to work it out I will post back
- Madmatt2006
- Posts: 369
- Joined: Fri Aug 31, 2018 2:48 pm
- cars: VZ SVZ Commodore
VH Commodore
JZZ30 Soarer GTT - Location: Katandra West
- Contact:
Re: VZ Ute speedo not working
Brain is now in second gear the sensor has no power. Tested the black/white wire and the pink/blue it has no power!
So put brain in 3rd gear tested pink/blue wire, plugged + multi meter into pink/blue wire, put - multi meter to negative on battery no reading
So I did that in reverse to test black/white wire got 12v no worries so earth is ok
So pink/blue wire has the issue

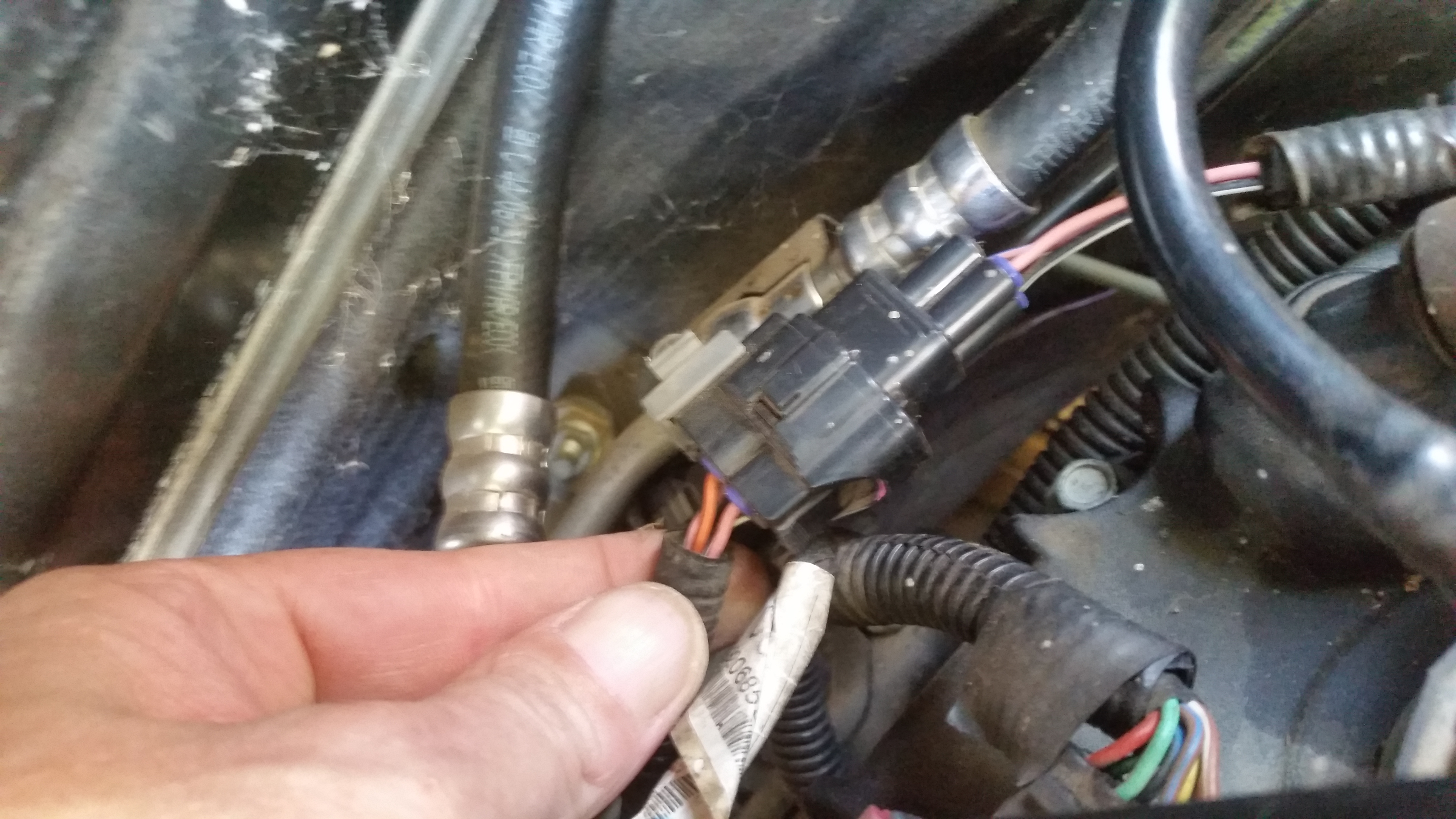

when I tested this the gear box loom is hooked up to the engine loom and plugged in under glove box. The O2 sensor plugs and reverse switch plug and speed senor plug where disconnected, so I could move the loom up to the engine bay for testing.
Any ideas why? is there a fuse? or plug else where? I had a quick look at another engine loom I have it looks like the pink/blue wire goes from speed sensor plug to the ecu ( I could be wrong ) any idea which pin?
So put brain in 3rd gear tested pink/blue wire, plugged + multi meter into pink/blue wire, put - multi meter to negative on battery no reading
So I did that in reverse to test black/white wire got 12v no worries so earth is ok
So pink/blue wire has the issue
when I tested this the gear box loom is hooked up to the engine loom and plugged in under glove box. The O2 sensor plugs and reverse switch plug and speed senor plug where disconnected, so I could move the loom up to the engine bay for testing.
Any ideas why? is there a fuse? or plug else where? I had a quick look at another engine loom I have it looks like the pink/blue wire goes from speed sensor plug to the ecu ( I could be wrong ) any idea which pin?
- delcowizzid
- Posts: 5493
- Joined: Sat Feb 28, 2009 8:38 pm
- Location: Wellington NZ
- Contact:
Re: VZ Ute speedo not working
Shared with o2 sensor power and purge solinoid I think but not sure. I would jut give it a power feed from the purge solinoid if it has 12v
If Its Got Gas Or Ass Count Me In.if it cant be fixed with a hammer you have an electrical problem
- Madmatt2006
- Posts: 369
- Joined: Fri Aug 31, 2018 2:48 pm
- cars: VZ SVZ Commodore
VH Commodore
JZZ30 Soarer GTT - Location: Katandra West
- Contact:
Re: VZ Ute speedo not working
No worries I give it a shot tonight when I get home I'll quickly hook it the the positive on the battery for testing. I'll post back and let you know what happensdelcowizzid wrote:Shared with o2 sensor power and purge solinoid I think but not sure. I would jut give it a power feed from the purge solinoid if it has 12v
Just out of interest any idea where the other end of the pink/blue wire goes to?
another question

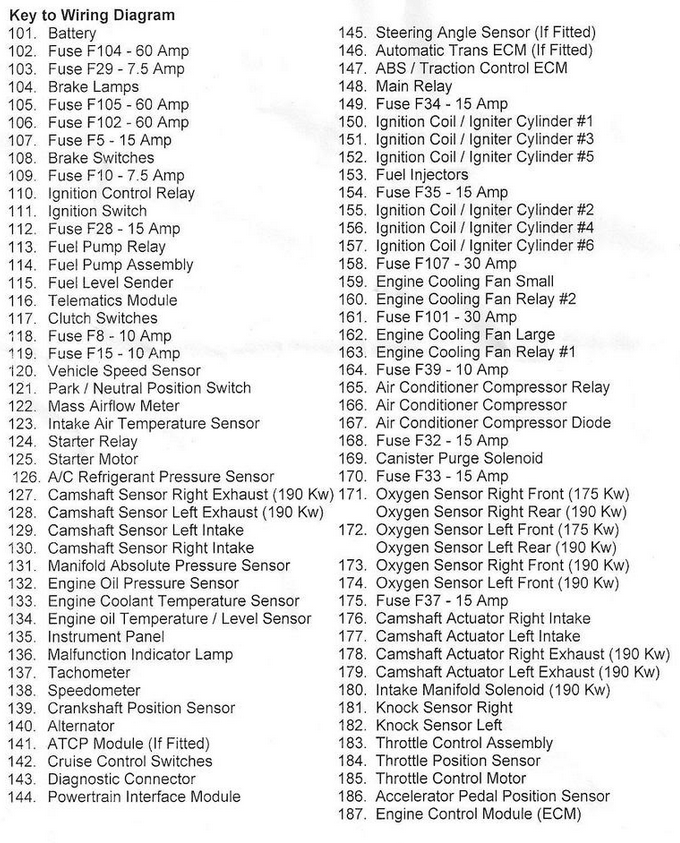

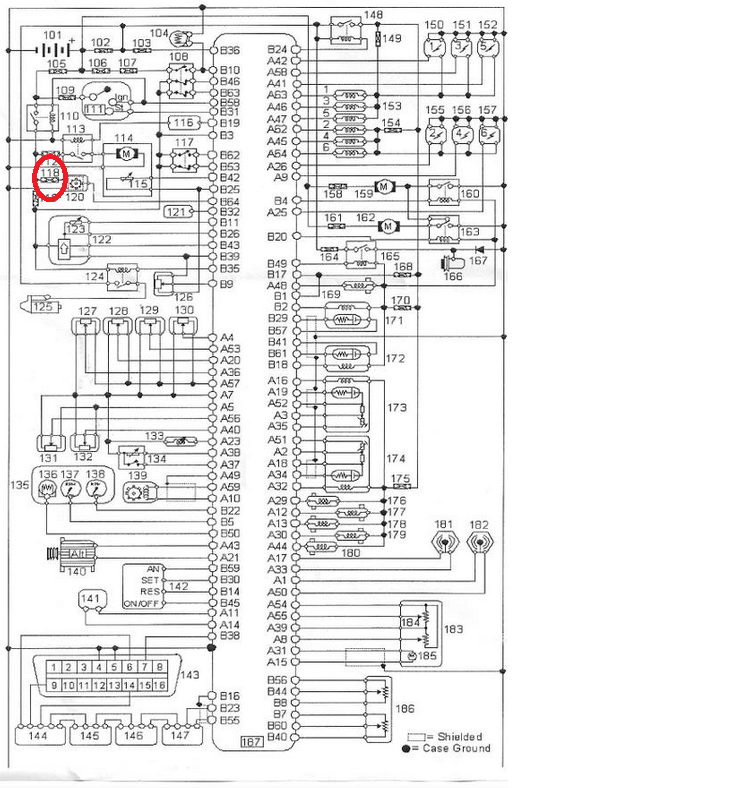

in the diagram here would the fuse circled in red have anything to do with this issue? where is this fuse??
- Madmatt2006
- Posts: 369
- Joined: Fri Aug 31, 2018 2:48 pm
- cars: VZ SVZ Commodore
VH Commodore
JZZ30 Soarer GTT - Location: Katandra West
- Contact:
Re: VZ Ute speedo not working
[youtube]https://www.youtube.com/watch?v=DhlPAj38rHc[/youtube]
We friken did it . Sir Delcowizzid!!!! you are the best when every where else couldn't work it out YOU did . Your the best man!!!!!!!!!!!!!!!
We friken did it . Sir Delcowizzid!!!! you are the best when every where else couldn't work it out YOU did . Your the best man!!!!!!!!!!!!!!!
- delcowizzid
- Posts: 5493
- Joined: Sat Feb 28, 2009 8:38 pm
- Location: Wellington NZ
- Contact:
Re: VZ Ute speedo not working
That fuse is speed sensor power lol
If Its Got Gas Or Ass Count Me In.if it cant be fixed with a hammer you have an electrical problem
- Madmatt2006
- Posts: 369
- Joined: Fri Aug 31, 2018 2:48 pm
- cars: VZ SVZ Commodore
VH Commodore
JZZ30 Soarer GTT - Location: Katandra West
- Contact:
Re: VZ Ute speedo not working
You've got to be joking lol the first thing I did was triple check the fuses none look to be blown maybe it's missing... Any idea on which fuse and location?delcowizzid wrote:That fuse is speed sensor power lol
None say speed sensor fuse
Google search is a great help https://www.google.com/search?client=fi ... f9_bms6rck
nothing
- delcowizzid
- Posts: 5493
- Joined: Sat Feb 28, 2009 8:38 pm
- Location: Wellington NZ
- Contact:
Re: VZ Ute speedo not working
Fuse 8 10amp it's in your list above
If Its Got Gas Or Ass Count Me In.if it cant be fixed with a hammer you have an electrical problem
