FS: USB ALDL Interface

Postby antus » Sat Jun 28, 2014 4:51 pm

Antus and Biggvl can supply. Send a msg to order USB ALDLs.
Note that if you are also looking for an NVRAM Antus can supply with ECM NVRAM and Biggvl can supply with PCM NVRAM.

Suitable for applications with ALDL available on pin 9 of an OBD port.

For Engine and 4L60E transmission logging, or realtime tuning on NVRAM equipped vehicles this includes:
VR to VY Commodores, except LS1 V8.

This cable is still good for limited body functionality on VY and VZ with LS1 or L98 V8 engines.

aldl interface rear small.gif
aldl interface rear small.gif (36.79 KiB) Viewed 16311 times


Design
The interface is the latest revision of VL400s design, which includes a genuine FTDI chip, signal filtering and regeneration.

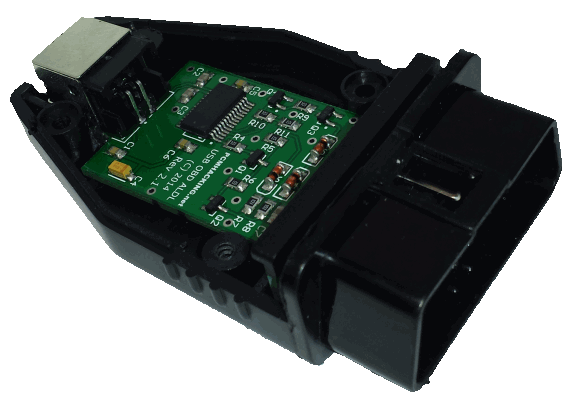

internal pic.gif
internal pic.gif (48.01 KiB) Viewed 16311 times


The included 1.5 Meter USB cable includes a ferrite bead for maximum noise immunity (often required when being used near big sparks, such as boost applications or a misfiring engine).

usb ferrite bead.png
usb ferrite bead.png (68.05 KiB) Viewed 16311 times


In the kit
1x USB ALDL Cable
1x 1.5m Shielded USB cable with ferrite bead.

Beware the clones
PCMHACKING.net products use only genuine components. Our ECM Comms boards use a genuine FTDI chip which works fine with the latest drivers. Clone FTDI chips are in circulation. See here for more information http://hackaday.com/2014/02/19/ft232rl-real-or-fake/

More information
If you need more information about the use of this hardware, click the FAQ button at the top/right of the forums and have a read of the documents available for download there.

Purchasing
USB ALDL Interfaces are $100 plus $20 postage and handling. Combined shipping is available when purchased with a PCMHACKING.net ECM or PCM NVRAM.

If purchasing with an ECM NVRAM Antus can supply.
Have you read the FAQ? For lots of information and links to significant threads see here: viewtopic.php?f=7&t=1396
