VZ PIM
Didn't find any info searching..
With the reliability of VZ replacing the ecm can be a bit of a pain.
All you need is the PIM and ECM from a donor (If the engine computer isn't already stuffed, it's hit and miss sometimes).

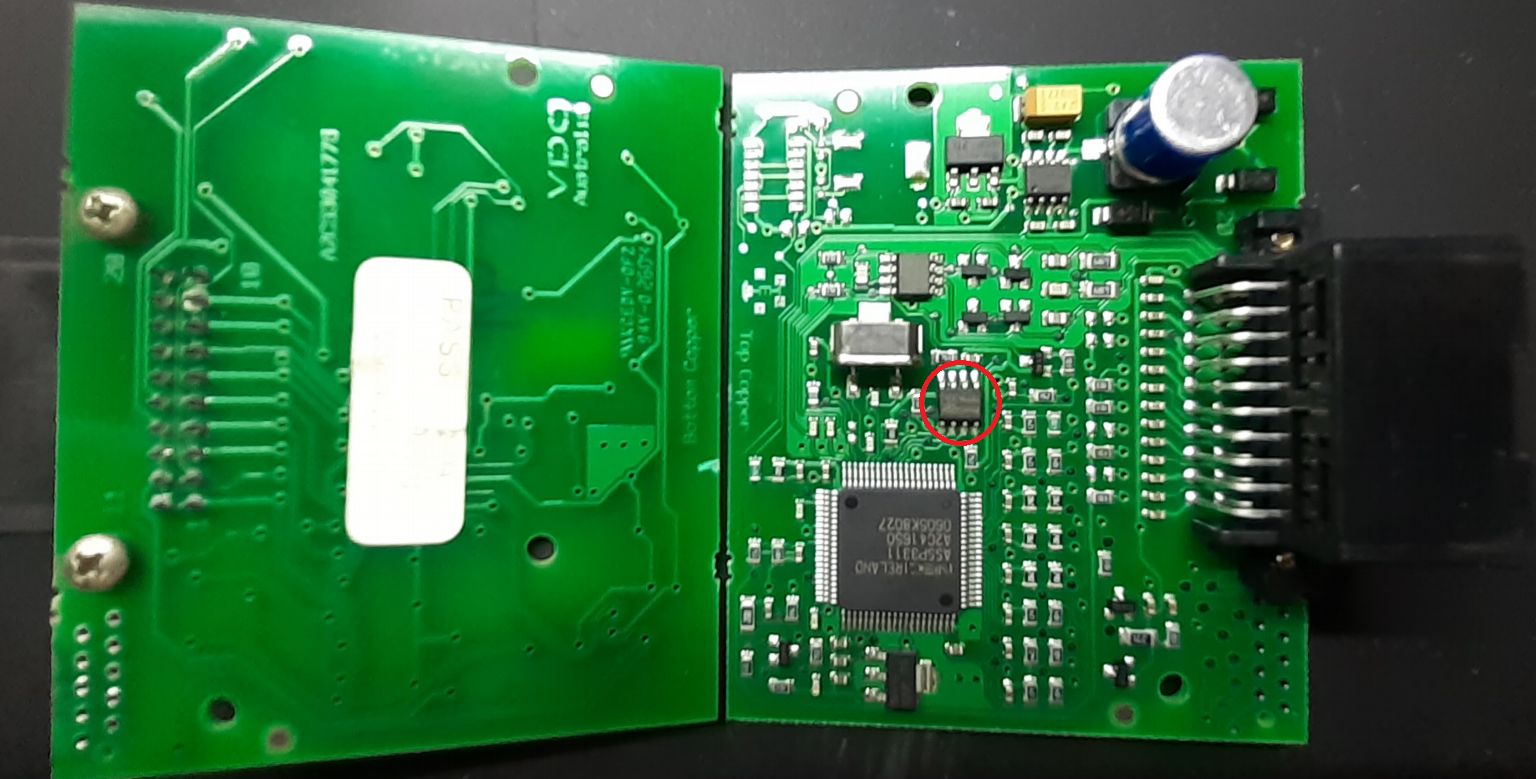

Rip the PIM eeprom.
VIN 6G1ZK52B05LHOLDEN
Bit of magic with the last bit of code
6919
Code for this pair is "9691"
Hook these up and go thru the ECM and PIM resets, don't have to link them to anything to do this.
Both are clear and ready to install, If you know the security code for the original PIM (and it hasn't already been changed) hook that back up and link the blank ECM to the car.
If you have the code for vin from holden, you could rewrite the eeprom with the correct code for the next poor sucker that has to do it after resetting the ecm.
Most already know how to get the BCM code to do this.
2 more that are not a security concern, the vehicles have gone to heaven
With the reliability of VZ replacing the ecm can be a bit of a pain.
All you need is the PIM and ECM from a donor (If the engine computer isn't already stuffed, it's hit and miss sometimes).
Rip the PIM eeprom.
VIN 6G1ZK52B05LHOLDEN
- Code: Select all
00 01 00 00 01 01 44 11 92 10 19 02 51 26 02 05 ���D’Q&
00 28 0A 02 54 62 00 07 00 00 50 4F 4C 45 7B 74 �(��Tb���POLE{t
2E E6 64 44 7A 5B 59 C6 18 E9 5B F9 C3 2A 03 00 .ædDz[YÆé[ùÃ*�
00 03 00 00 00 00 00 00 FC 00 33 01 FF 01 00 01 �������ü�3ÿ�
24 01 FF 01 EA FF FF 12 FF FF FF FF 45 4E 4C 44 $ÿêÿÿÿÿÿÿENLD
48 4F 35 4C 42 30 35 32 5A 4B 47 31 FF 36 00 00 HO5LB052ZKG1ÿ6��
12 00 FF FF FF FF 08 15 13 01 04 06 01 11 12 01 �ÿÿÿÿ
04 03 68 24 00 02 FE 01 FF FF FF FF 36 39 31 39 h$�þÿÿÿÿ6919
Bit of magic with the last bit of code
- Code: Select all
HEX
36 39 31 39
6919
Code for this pair is "9691"
Hook these up and go thru the ECM and PIM resets, don't have to link them to anything to do this.
Both are clear and ready to install, If you know the security code for the original PIM (and it hasn't already been changed) hook that back up and link the blank ECM to the car.
If you have the code for vin from holden, you could rewrite the eeprom with the correct code for the next poor sucker that has to do it after resetting the ecm.
Most already know how to get the BCM code to do this.
2 more that are not a security concern, the vehicles have gone to heaven
Last edited by jxx on Mon Jan 11, 2021 8:31 pm, edited 2 times in total.
- Holden202T
-
- Posts: 10271
- Joined: Sat Feb 28, 2009 9:05 pm
- Location: Tenambit, NSW
Re: VZ PIM
nice work!
No matter what the question is, the answer is always more horsepower!
Just starting out? Have a read of the getting started guide
Basic tuning of a delco ECM with $12P thread
Advanced tuning of a delco ECM with $12P thread

Just starting out? Have a read of the getting started guide
Basic tuning of a delco ECM with $12P thread
Advanced tuning of a delco ECM with $12P thread
Re: VZ PIM
At the end of the day it's just proving that bcm, keyfob, ecu and pim don't need to be sold in a bundle (Like ebay and most wreckers think).
So cheaper and a crapload less work for anyone replacing these, I know it works because I've done it a couple of dozen times now.
Nothing worse than calling holden with a vin and getting a code that doesn't match the pim and ecu you're working on and swearing because someone has changed everything previously and not done the job properly to give one motivation to figure something out.
I was only interested in the important bits, haven't bothered checking a reset PIM to a linked one, never delved into the configuration information, but that stuff shouldn't take long to work out. Not that it's needed as most scantools can reconfigure these anyway.
Although interesting when you flip the bits to make sense you see "OPEL"
So cheaper and a crapload less work for anyone replacing these, I know it works because I've done it a couple of dozen times now.
Nothing worse than calling holden with a vin and getting a code that doesn't match the pim and ecu you're working on and swearing because someone has changed everything previously and not done the job properly to give one motivation to figure something out.
I was only interested in the important bits, haven't bothered checking a reset PIM to a linked one, never delved into the configuration information, but that stuff shouldn't take long to work out. Not that it's needed as most scantools can reconfigure these anyway.
Although interesting when you flip the bits to make sense you see "OPEL"
- Code: Select all
���D’&Q
(���bT���OPELt{
æ.Dd[zÆYéù[*Ã�
��������ü3ÿ�
$ÿÿêÿÿÿÿÿNEDL
OHL50B25KZ1G6ÿ��
�ÿÿÿÿ
$h�þÿÿÿÿ9691
- VX L67 Getrag
- Posts: 2763
- Joined: Sun Aug 02, 2009 9:16 pm
- Location: Bayside, Melbourne, Victoria
Re: VZ PIM
This is great work & will definitely help out in future for others once numpties have screwed with things!
Re: VZ PIM
Thanks for posting! Ive added a link to this thread in to the FAQ.
Have you read the FAQ? For lots of information and links to significant threads see here: viewtopic.php?f=7&t=1396
Re: VZ PIM
Nice work with this, Great option for transplants.
There is also a brute force method for the ecu in another thread, will have to finish that program!
There is also a brute force method for the ecu in another thread, will have to finish that program!
Re: VZ PIM
I have seen that thread, great work if it's the last choice (which is going to be the case someday soon).
Even though this is manual desolder, rip and resolder, it's under a 10 min job.
I don't even bother calling holden anymore lol..... sadly it takes longer to talk to someone.
Even been lucky to find the details in some wrecks on the oem docs.... which didn't match.
Even though this is manual desolder, rip and resolder, it's under a 10 min job.
I don't even bother calling holden anymore lol..... sadly it takes longer to talk to someone.
Even been lucky to find the details in some wrecks on the oem docs.... which didn't match.
Re: VZ PIM
yeh what a cluster F these setups are.
You dont even need to desolder the PIM ones, BCM ones you do as they have a Capacitor inline to F up the read.
Use one of these to just clip on and read the PIM eeprom.
https://www.ebay.com.au/itm/Soic8-Sop8- ... 0008.m2219
I put the Brute Force reset tool here.
viewtopic.php?f=38&t=7090
You dont even need to desolder the PIM ones, BCM ones you do as they have a Capacitor inline to F up the read.
Use one of these to just clip on and read the PIM eeprom.
https://www.ebay.com.au/itm/Soic8-Sop8- ... 0008.m2219
I put the Brute Force reset tool here.
viewtopic.php?f=38&t=7090
