VY BCM - ABS - SRS - Wiring Diagrams

Wiring diagrams and questions
User avatar
Posts: 4079
Joined: Mon Jan 04, 2010 10:23 am

VY BCM - ABS - SRS - Wiring Diagrams

Postby The1 » Mon Aug 29, 2016 10:37 pm

VY BCM - ABS - SRS - Wiring Diagrams
Attachments

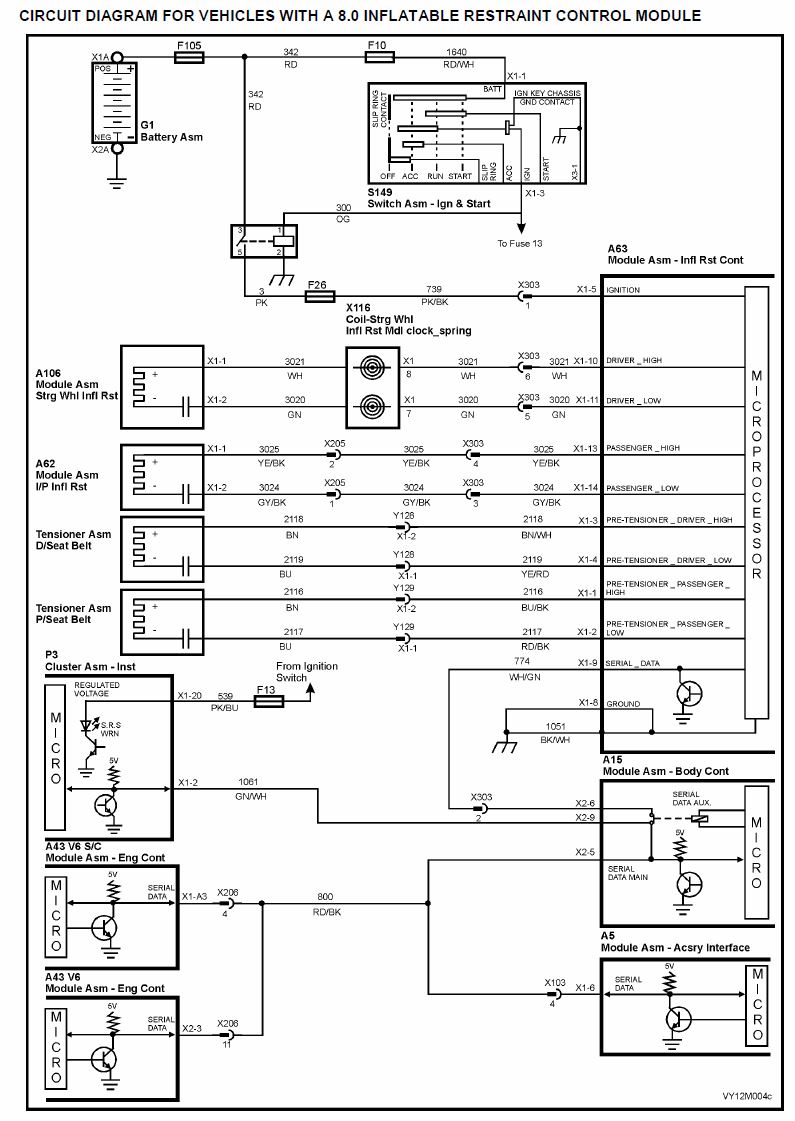

VY SRS 8.1 Wiring.JPG
VY SRS 8.1 Wiring.JPG (177.44 KiB) Viewed 2724 times
VY SRS 8.0 Wiring.JPG
VY SRS 8.0 Wiring.JPG (143.42 KiB) Viewed 2724 times

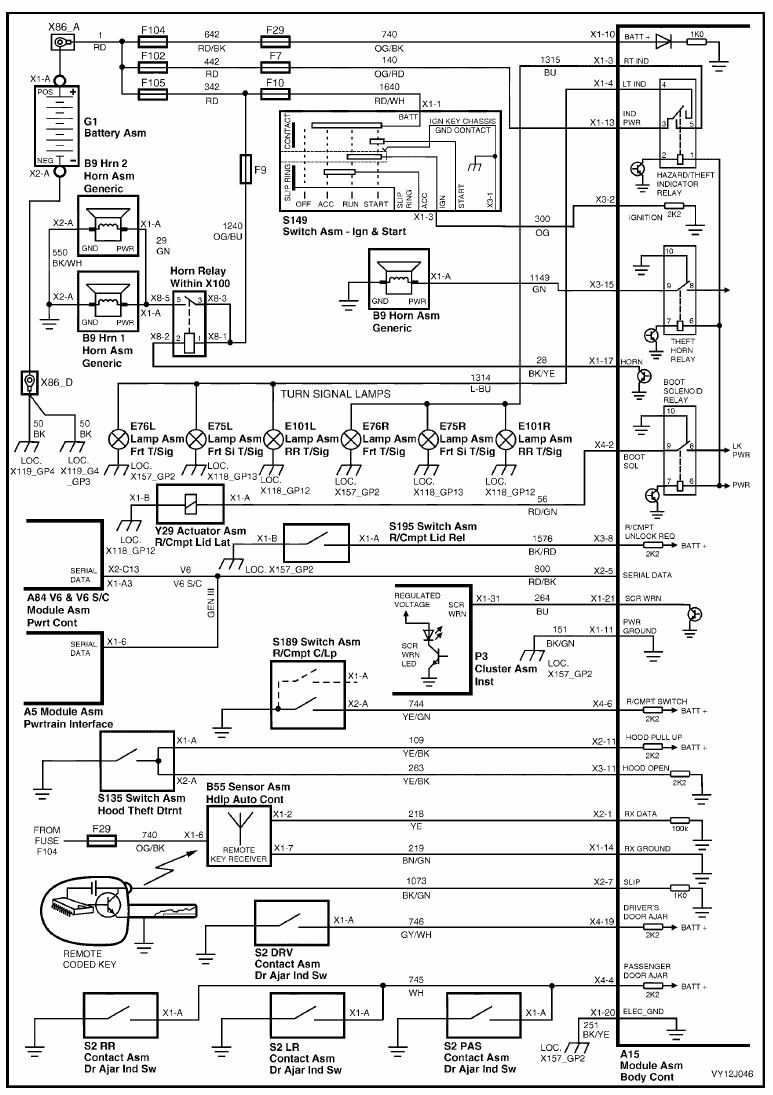

VY BCM Wiring.JPG
VY BCM Wiring.JPG (177 KiB) Viewed 2724 times

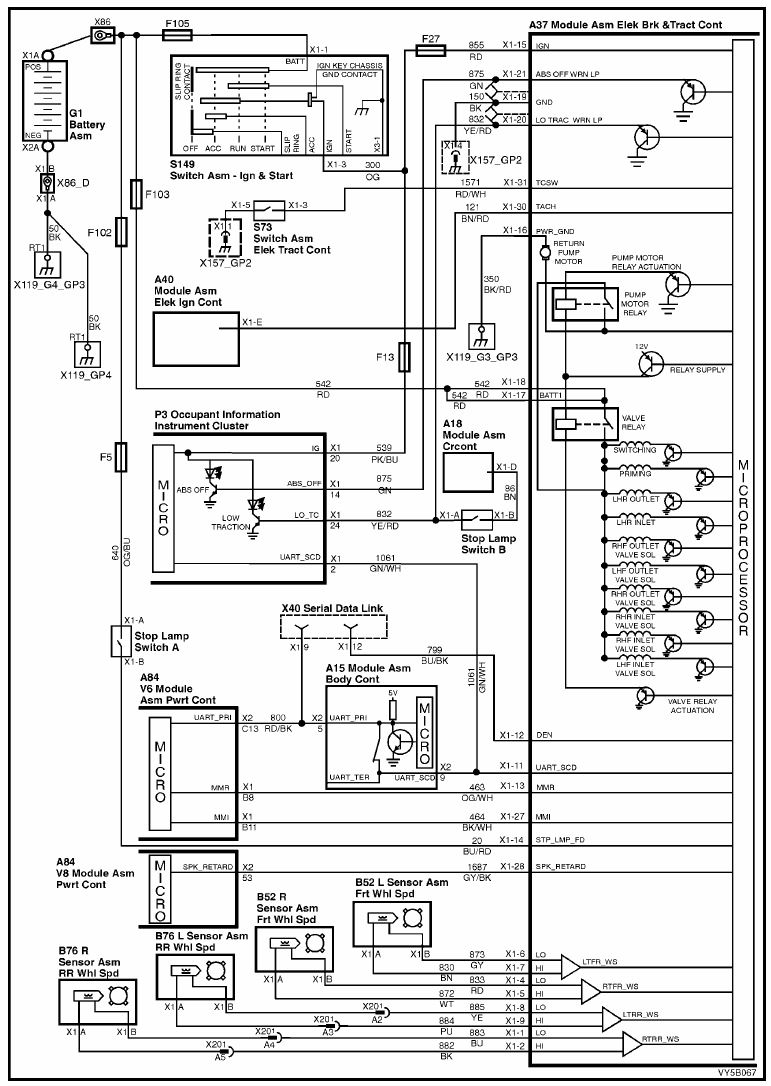

VY ABS Wiring.JPG
VY ABS Wiring.JPG (174.09 KiB) Viewed 2724 times

User avatar
Posts: 319
Joined: Thu May 09, 2013 6:50 pm

Re: VY BCM - ABS - SRS - Wiring Diagrams

Postby hsv08 » Tue Aug 30, 2016 6:29 pm

Brilliant work! Black and white! Thanks
