Re: GM E38 E67 Kernel/Bootloader Development Extravaganza

Postby Tazzi » Tue Mar 24, 2020 5:30 pm

In-Tech wrote:Tazzi, the more I think about this, the more I like it. I'll dig out my bga crap and see what my 80 pin stuff is. For me that will decide if I use the 9 x 11, or 11 x 13 sized bga instead of the PQFP footprint. Then I can have some adapter boards made using some pins placed where you were attaching to the original PQFP footprint on the bottom of the board. So, again, curious what all you hooked up to accomplish that great task you did. Thinking this type of thing might be useful in next gen stuff too. I can make up a big handful of these and give them out to all the interested parties here.


So I soldered all the legs, using 30awg wire. It took quite some time to do.

I think the spacing is 0.3mm.. maybe? Assuming that can be put onto a pcb.. would just press on.

Posts: 86
Joined: Mon Mar 09, 2020 4:35 pm

Re: GM E38 E67 Kernel/Bootloader Development Extravaganza

Postby In-Tech » Tue Mar 24, 2020 6:49 pm

Tazzi,
Man I can't imagine soldering all 80 of those wires and that tiny 30 gauge hurts my head. I would have done this :wall: :mrgreen:

Here are the specs of the qfp package and bga.
QFP package
17mm x 23mm pads
14mm x 20mm body
18mm x 24mm pins
80 pin .8mm pin spacing center to center(that's what the spec sheet says, I think it's .65mm but whatever)

BGA package
11mm x 13mm body or
9mm x 11mm
80 pin

There are some seriously small needle tip pogo pins available and I think if I use the 9mm x 11mm bga we will be able to put these tiny pogo pins all the way around the bga and just push this daughter board down onto the bottom of the ecu, we will be fine. Also, instead of worrying about having the right bga adapter for my programmer I can just program a few of them ICP on the daughter board.

When you did yours did you just cut one of the wires when you were ready or what do you recommend the procedure to be? A small momentary switch on the daughter board comes to mind. Anyway, this will take a bit to get accomplished but I like your idea and it would be a great thing for all of us to have in our "toolboxes"

Posts: 17
Joined: Fri Aug 25, 2017 5:28 pm
Location: Adelaide

Re: GM E38 E67 Kernel/Bootloader Development Extravaganza

Postby julespatch » Wed Mar 25, 2020 8:35 pm

ironduke wrote:If I get time this week I am going to pull out my BDM tool and see if this works on my bricked E38..



Nice find on the BDM pdf!

Has anyone tried it? Ive got 2 wrong os scrambled e38s here I'm happy to donate to the cause. One is completely trashed from opening but could still be hooked up to BDM

Posts: 48
Joined: Thu Feb 13, 2020 11:32 pm

Re: GM E38 E67 Kernel/Bootloader Development Extravaganza

Postby ironduke » Wed Mar 25, 2020 10:37 pm

julespatch wrote:
ironduke wrote:If I get time this week I am going to pull out my BDM tool and see if this works on my bricked E38..



Nice find on the BDM pdf!

Has anyone tried it? Ive got 2 wrong os scrambled e38s here I'm happy to donate to the cause. One is completely trashed from opening but could still be hooked up to BDM


lol.. Don't thank me. that was all In-Tech.. I just chimed in on his findings... Gotta find time to try it though!!

Posts: 86
Joined: Mon Mar 09, 2020 4:35 pm

Re: GM E38 E67 Kernel/Bootloader Development Extravaganza

Postby In-Tech » Fri Mar 27, 2020 8:16 pm

The USB BDM NT isn't here yet so I'm curious what you guys find out. I can't seem to find any software for the bdm100 I bought that isn't full of virus and app deleting crap. I visited with the USB BDM NT guy online on his website which was very nice and can't wait to try it.

Hey Tazzi, didn't you say you got an E92? Is it an E92 or E92A? Any plans on how to get the micro welded bottom plate off? It's pretty neat how they do that.

Posts: 86
Joined: Mon Mar 09, 2020 4:35 pm

Re: GM E38 E67 Kernel/Bootloader Development Extravaganza

Postby In-Tech » Fri Mar 27, 2020 8:33 pm

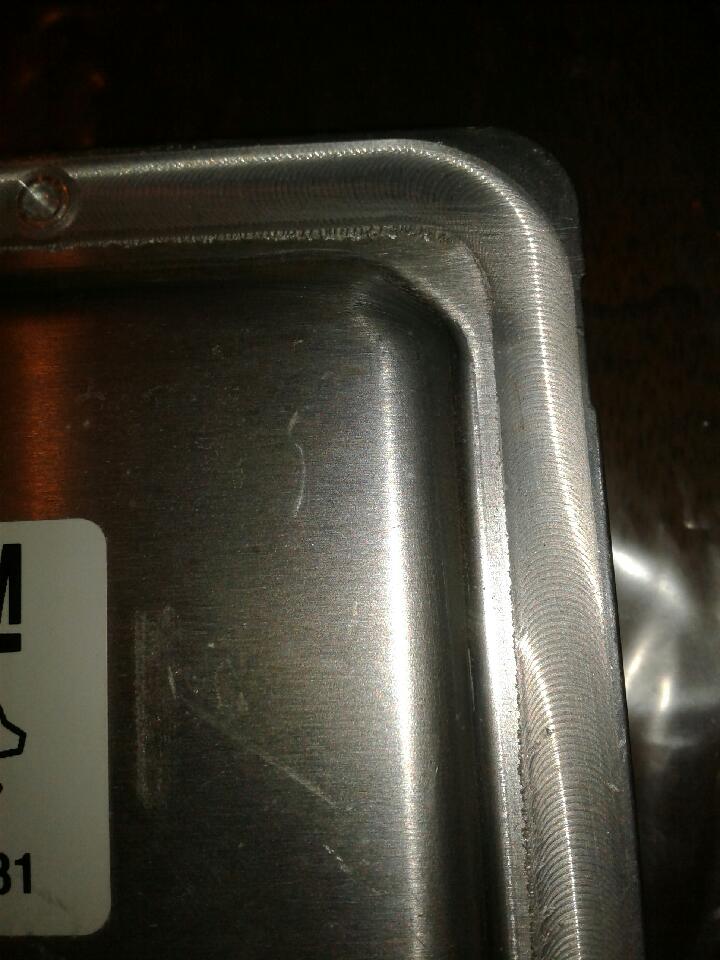

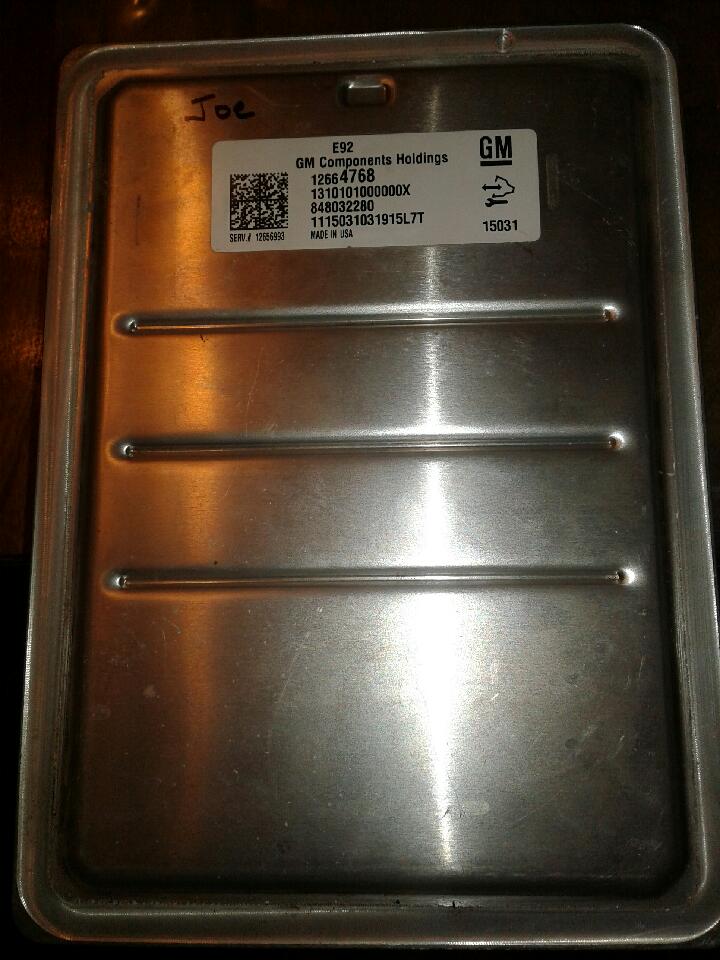

Pics e92 backing plate.


User avatar
Posts: 2070
Joined: Thu May 17, 2012 8:53 pm
Location: WA

Re: GM E38 E67 Kernel/Bootloader Development Extravaganza

Postby Tazzi » Sat Mar 28, 2020 3:11 pm

Im a bit confused, so its welded on? It cant be pried apart??

*Edit
Oh wow.. I just took a closer look at mine.. looks like it was welded then milled to smooth finish.

Hmm.... Im going to have to cut it open.. but hope I dont cut any components on board...

Posts: 86
Joined: Mon Mar 09, 2020 4:35 pm

Re: GM E38 E67 Kernel/Bootloader Development Extravaganza

Postby In-Tech » Sat Mar 28, 2020 4:53 pm

I'm going to try one with a small bit in the mill. GM got it from nasa
https://www.nasa.gov/topics/nasalife/friction_stir.html

My "donor" ebay e92 seemed dead dead dead, tunercat couldn't see it, scanner couldn't see it then as a last ditch efilive saw it was an e92. Woah, so then I tried to read it in efi and it read, very mysterious, it acted like it read a pretty big chunk in just a few seconds, then continued on like normal. Of course the file was junk, only saw the OS. It gave me a bit of hope so I used the recover function in tunercat and about an hour and a half later it finished, no vin, no seed, no traceability etc. So, I wrote it again(with a 2014 file I had just read out of another e92) and now it programmed in about 20 minutes and populated modules 1-6. Did it again and this time it wrote the vin and traceability came back although a different number than the donor 2014 file. So, I guess what I am saying is it's breathing a little life now but still a good donor ;)
I'm not sure I will have time to mill the back plate off this weekend but I'll try, paying jobs come first since who knows in the current climate when that will dry up.

I would like to talk more about the "slave" chip you did. If this isn't a good place, we can pm or I can start another thread. The small 9mm x 11mm BGA chips look to have never been made so I will order some 11mm x 13mm bga's next week then have a few boards made for pogo sticks as money allows. NSFW's 3d printed jig for the Blue/red and Blue/green PCM's is super cool and would be nice to do that for the e38, e67 and e92 too if we can figure out the bdm stuff for it.

Posts: 86
Joined: Mon Mar 09, 2020 4:35 pm

Re: GM E38 E67 Kernel/Bootloader Development Extravaganza

Postby In-Tech » Sun Mar 29, 2020 4:50 pm

Just thinking outloud about the mirror image required since we are dealing with the bottom side of the board. Kinda throws a wrench it how to make the bga adaptor board.

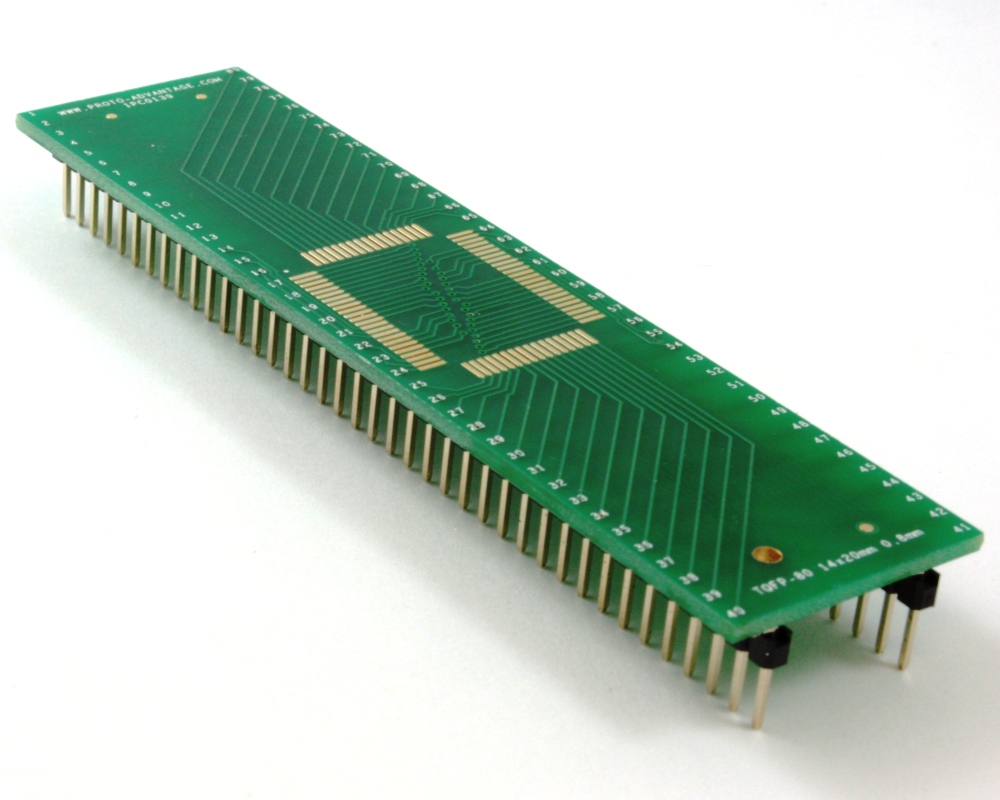

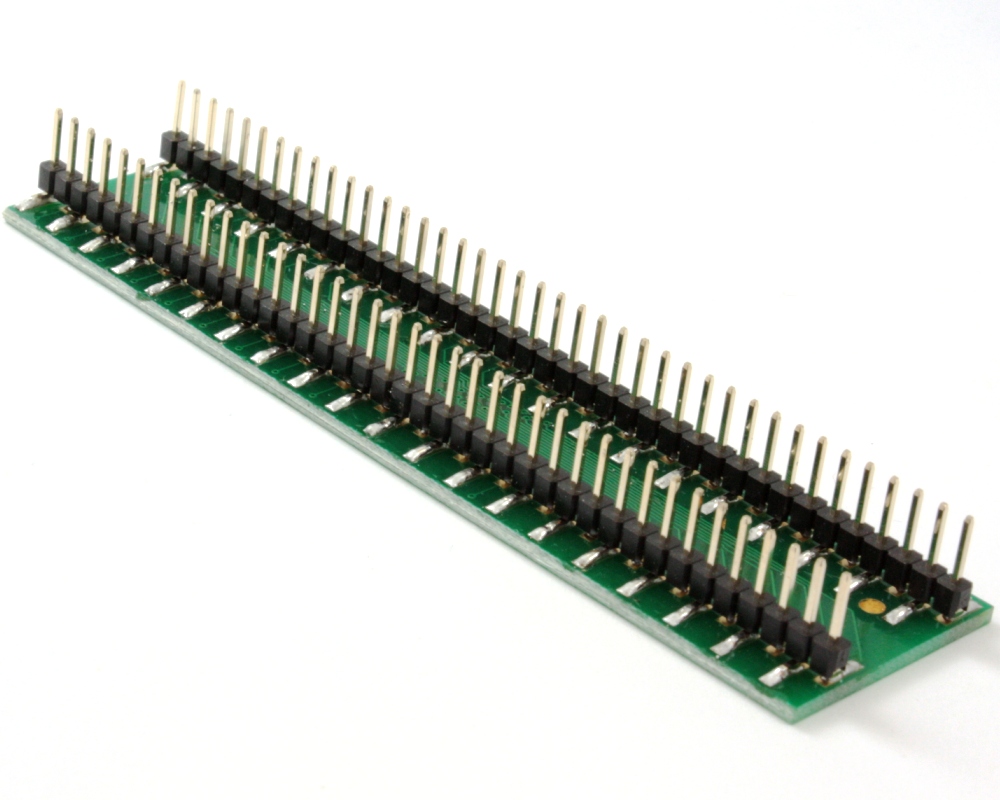

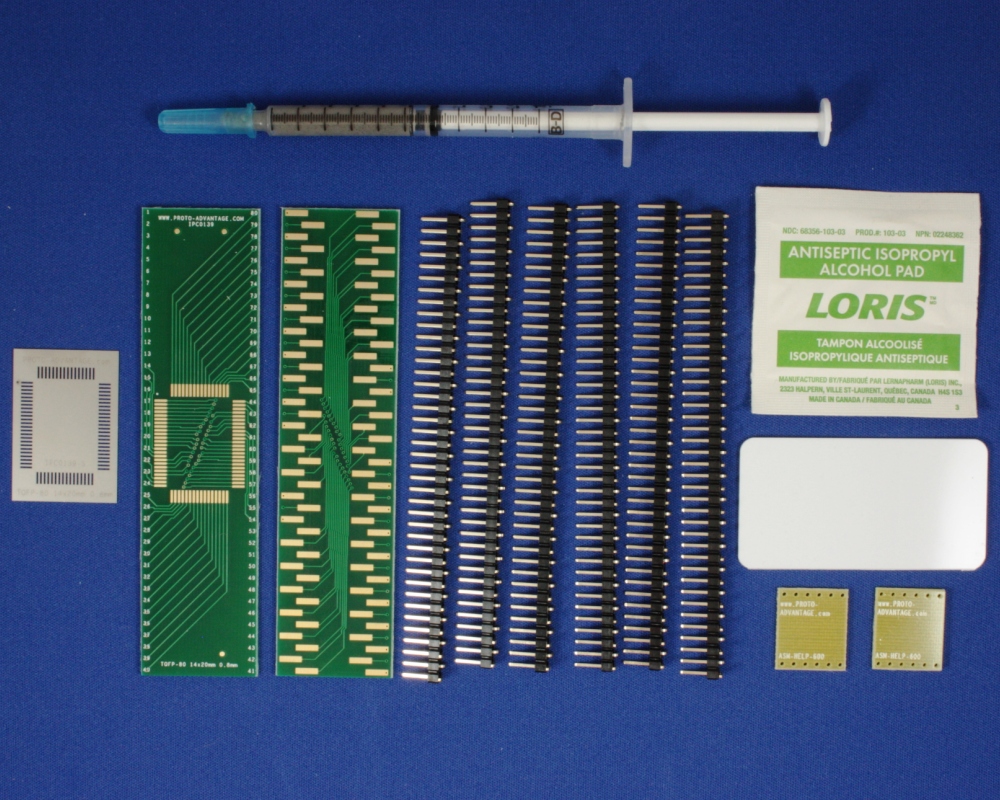

So, maybe something like this to start and just use the qfp package. :study:





User avatar
Posts: 2070
Joined: Thu May 17, 2012 8:53 pm
Location: WA

Re: GM E38 E67 Kernel/Bootloader Development Extravaganza

Postby Tazzi » Sun Mar 29, 2020 8:10 pm

You should be able to buy 0.8mm spaced headers. There are really small obviously but they can be bought.

Will need to design a custom PCB to have the QPF pads on one end of the pcb, and have the traces run to the through-hole headers which will press onto the PCB.

Could even use a couple of the mounting screw holes as guides actually so it holds in in the exact place, although this is getting to a fairly high level o precision!
