V6 ability for pcm hammer.

They go by many names, P01, P59, VPW, '0411 etc . Circa 1999 to 2006. All VPW OBD2 PCMs.
Posts: 181
Joined: Wed Dec 06, 2017 1:02 pm

Re: V6 ability for pcm hammer.

Postby Vampyre » Sat Feb 15, 2020 11:11 am

i was going to attempt this but cant find were its at in code to edit it

kur4o wrote:
Writing will be the same as p01 and p59 intel and amd chips except for the following changes:

Code: Select all
chip init

Load
$0006 - word_fffffa4c
$6820 - word_fffffa4a
$7020 - word_fffffa4e

$0006 - word_fffffa48

For intel chip only:
before erase or program
bitset #0 word_ffffe2fa
wait till

bit #5 is set at word_fffffa19

after erase or program
bitclear #0 word_ffffe2fa
wait till

bit #5 is cleared at word_fffffa19

amd chip id 22AB
segments
0
2000
4000
6000
8000
10000
20000
30000
40000
50000
60000
70000

Site Admin
User avatar
Posts: 6281
Joined: Sat Feb 28, 2009 8:34 pm

Re: V6 ability for pcm hammer.

Postby antus » Sat Feb 15, 2020 11:59 am

Its through the flash.c flash.h flash_intel.c and flash_amd.c files but you might not be able to see it because its split out in to different functions and written in C with more detailed wording as to whats what.

https://github.com/LegacyNsfw/PcmHacks/ ... op/Kernels

For example, you see FFFFE2FA mentioned above, and thats here https://github.com/LegacyNsfw/PcmHacks/ ... lash.h#L11 so when you see a mention of HARDWARE_IO in the C, that is the address its referring to.
Have you read the FAQ? For lots of information and links to significant threads see here: viewtopic.php?f=7&t=1396

Posts: 79
Joined: Thu Sep 21, 2017 3:00 pm

Re: V6 ability for pcm hammer.

Postby 160plus » Thu Feb 20, 2020 7:21 pm

Just gonna leave these here.......
Xpro Elm.PNG
Xpro Elm.PNG (45.61 KiB) Viewed 2645 times


Had to make a few tweaks since I was doing this over Bluetooth but it ended up working....

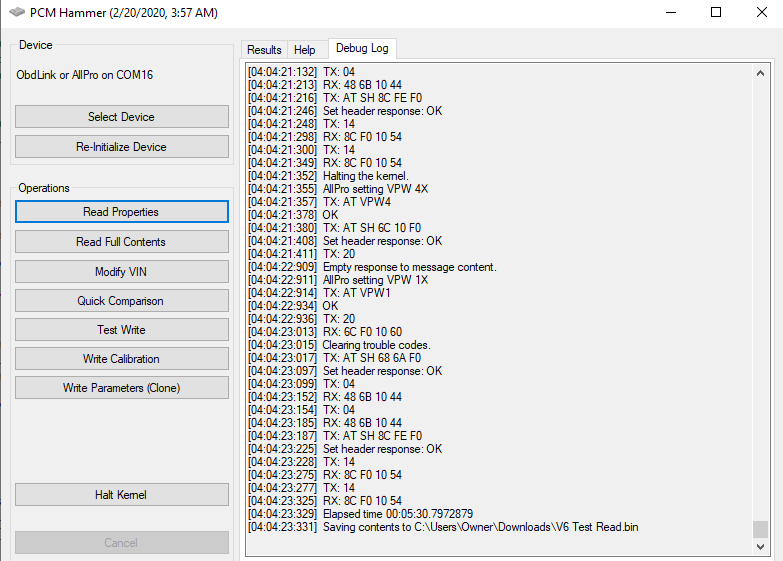

V6 Read Complete.PNG
V6 Read Complete.PNG (44.69 KiB) Viewed 2645 times


There are a LOT of things that were a bit sketchy and it had to request a number of blocks multiple times but given the number of possible variables that could have been the cause and the fact I not only hacked a kernel from Ls Droid into this but also hacked an OBD Xpro VT in using Elm commands over Bluetooth I'm pretty amazed it even worked :punk:

Posts: 181
Joined: Wed Dec 06, 2017 1:02 pm

Re: V6 ability for pcm hammer.

Postby Vampyre » Sat Feb 22, 2020 7:23 am

Nice

Site Admin
User avatar
Posts: 6281
Joined: Sat Feb 28, 2009 8:34 pm

Re: V6 ability for pcm hammer.

Postby antus » Sun Feb 23, 2020 4:22 pm

Keep in mind that is a very old version of the pcmhammer code base, and not a kernel are likely to use. It is very cool to see, but it doesnt mean v6 support is nearly ready. P59 full flash support nearly is, and that is what we have been looking at first. Once thats out, and time permitting we'll move on to P04.
Have you read the FAQ? For lots of information and links to significant threads see here: viewtopic.php?f=7&t=1396

Posts: 699
Joined: Sat Dec 15, 2018 7:38 am

Re: V6 ability for pcm hammer.

Postby Gampy » Sun Feb 23, 2020 9:27 pm

Wow 160plus,

COM16 ... Need some port cleaning??

If interested here are the steps ... If not maybe someone else does!
Open Admin prompt ...
Type,
Code: Select all
set DEVMGR_SHOW_NONPRESENT_DEVICES=1
devmgmt.msc
Select: View
Select: Show hidden devices
Expand: Ports (COM & LPT)

Then start cleaning ...
I typically delete them all and allow what gets used to reinstall.

Hopefully that is useful to someone ...
Temporary is a permanent problem!

Posts: 181
Joined: Wed Dec 06, 2017 1:02 pm

Re: V6 ability for pcm hammer.

Postby Vampyre » Wed Feb 26, 2020 11:09 am

antus wrote:Keep in mind that is a very old version of the pcmhammer code base, and not a kernel are likely to use. It is very cool to see, but it doesnt mean v6 support is nearly ready. P59 full flash support nearly is, and that is what we have been looking at first. Once thats out, and time permitting we'll move on to P04.



yeah just nice to see it is possible

Posts: 79
Joined: Thu Sep 21, 2017 3:00 pm

Re: V6 ability for pcm hammer.

Postby 160plus » Wed Feb 26, 2020 1:05 pm

Gampy wrote:Wow 160plus,

COM16 ... Need some port cleaning??



Did you know that Windows will only allow 256 comports? Ask me how I know :comp:

Posts: 699
Joined: Sat Dec 15, 2018 7:38 am

Re: V6 ability for pcm hammer.

Postby Gampy » Wed Feb 26, 2020 9:02 pm

160plus wrote:Did you know that Windows will only allow 256 comports? Ask me how I know :comp:

Yup I did, however I don't think we learned that the same way ... :shock:
Temporary is a permanent problem!

Posts: 203
Joined: Sun Apr 10, 2016 9:20 pm

Re: V6 ability for pcm hammer.

Postby kur4o » Fri Feb 28, 2020 2:48 am

Vampyre wrote:Here is a complete list of every P04 OSID I could find from GM its about 1400 from 98-05 also sorted them by yr and hardware found in



Vampyre,
If you have access to more resources related with the OS list, can you generate a new list with the OS numbers linked with the checksum location for the given OS.
It needs to be a simple text file in the following format.
OS:checksum address
or
9352820:7231a
9352823:7231a
7231a is the address where the checksum is stored for OS p/n ...
