Can anyone identify this memcal?

Holden/Delco Tuning. ALDL, OBD 1.5. Circa 1989 to 2004.
Posts: 22
Joined: Mon Jul 13, 2015 1:03 pm

Can anyone identify this memcal?

Postby Jackson. » Sun Aug 02, 2020 5:39 pm

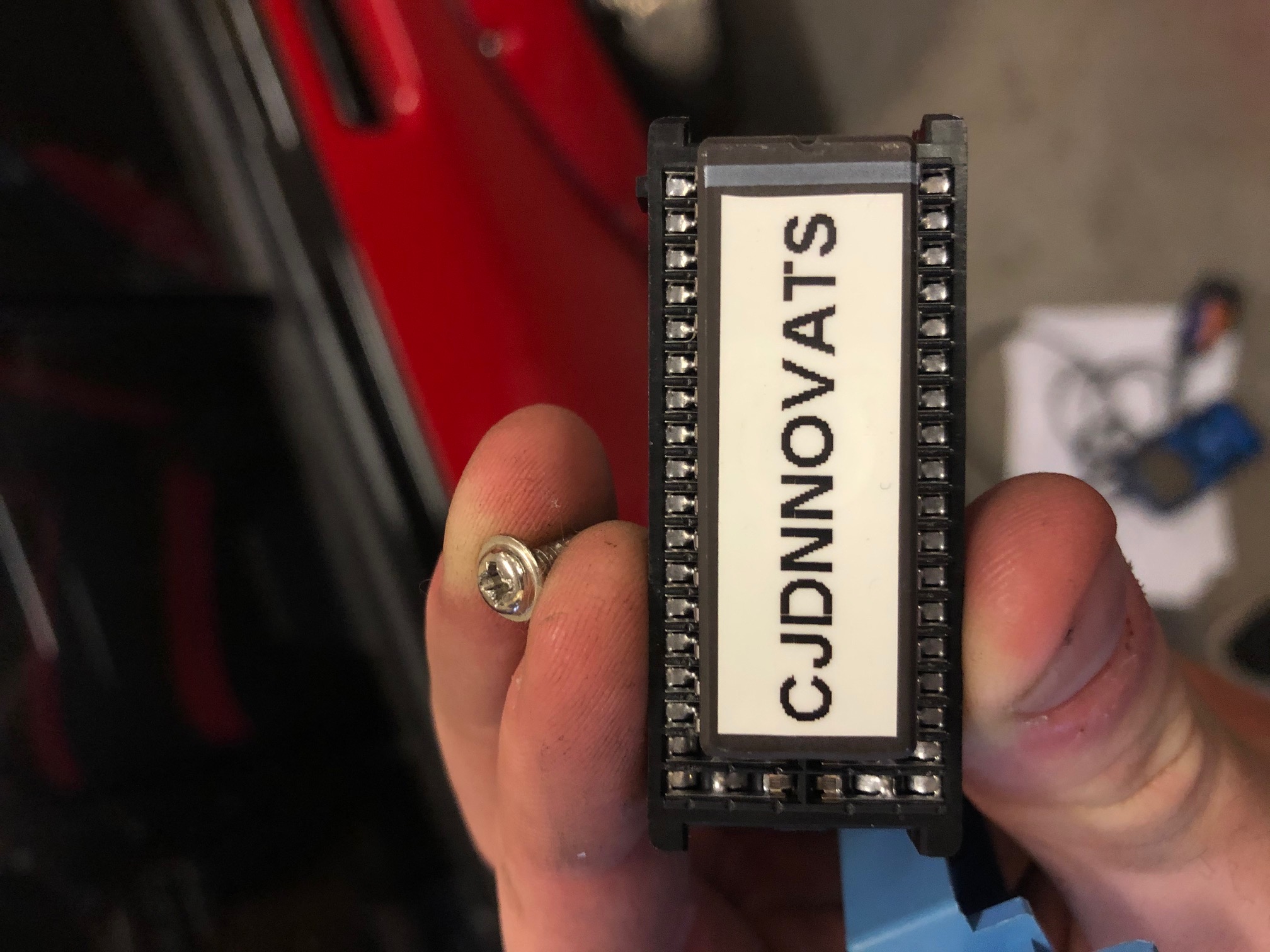

Does this memcal look familiar to anyone?

I bought a VT 5l conversion a fair while back that had the VATS removed already. Its all in the car and running but is super rich and runs like dogs balls. Backfiring out the intake if you give it a throttle stab

Just wanted to try trackdown whoever has done this for a little info. Should it not just run like a stock car
Attachments

Posts: 2505
Joined: Sun Aug 02, 2009 9:16 pm
Location: Bayside, Melbourne, Victoria

Re: Can anyone identify this memcal?

Postby VX L67 Getrag » Sun Aug 02, 2020 9:01 pm

I’m pretty sure that’s how horse power factory label their memcal... but could be anyone with 1 of those generic label makers!

Posts: 331
Joined: Sun Mar 22, 2009 11:52 am
Location: Sydney

Re: Can anyone identify this memcal?

Postby kojab » Mon Aug 03, 2020 5:59 am

Looks and sounds like it's screwed ?

User avatar
Posts: 10007
Joined: Sat Feb 28, 2009 9:05 pm
Location: Tenambit, NSW

Re: Can anyone identify this memcal?

Postby Holden202T » Mon Aug 03, 2020 7:39 am

well CJDN is VT 5L Auto .... so one would assue if that is the base and just vats removed then it should run a stock engine.

is the dizzy set correctly ? if you put it in diag mode do you get any error codes from it ?

Posts: 22
Joined: Mon Jul 13, 2015 1:03 pm

Re: Can anyone identify this memcal?

Postby Jackson. » Mon Aug 03, 2020 9:32 am

Have played around with timing a fair amount and not had much luck.

Ive done a little more reading and apparently these ECUs lean heavy on data from the vehicle speed sensor and can cause this problem?

I have a T56 behind the VT 5l, what would i need to do regarding the vss

Posts: 401
Joined: Thu May 03, 2012 10:50 pm
Location: Castlemaine, Vic

Re: Can anyone identify this memcal?

Postby pman92 » Mon Aug 03, 2020 11:59 am

Shouldn't have to play around with the timing, you should put it in diagnostic mode so it's static and set it at 10 degrees by turning the distributer.

No VSS might cause mild driveability problems, but not when the car is stationary in neutral and idling.

Have you checked the fuel pressure?
VR-VY Holden BCM Simulator: LINK
Ford Smartlock Bypass Module: LINK

Posts: 1285
Joined: Sat Aug 06, 2011 7:58 am
Location: Padstow NSW

Re: Can anyone identify this memcal?

Postby Charlescrown » Mon Aug 03, 2020 4:57 pm

Did this memcal ever work? Have you checked the fuel pressure before condemning it? A lot more info is required to help.
Usually backfiring is caused by a lean mixture.

Posts: 22
Joined: Mon Jul 13, 2015 1:03 pm

Re: Can anyone identify this memcal?

Postby Jackson. » Tue Aug 04, 2020 9:54 pm

Am i able to check fuel pressure without any tools? Checking air/fuel ratio through an aldl cable doesnt help does it?

I bridged the earth and diagnostic wires and set the timing but was still pretty garbage

I have an ALDL cable and advanced engine diagnostics from envyous customs. Is there anything i can check in there or any other software

Posts: 401
Joined: Thu May 03, 2012 10:50 pm
Location: Castlemaine, Vic

Re: Can anyone identify this memcal?

Postby pman92 » Tue Aug 04, 2020 10:10 pm

There's no proper way to check fuel pressure via software. You need to connect a physical gauge.

If the pressure behind the injector isn't what the software expects, it doesn't matter how many fancy calculations the software does to work out how long to open the injector, the fuel delivery will never be right.

Especially since this is a engine going into a new vehicle, you obviously would of had to setup or plumb up a fuel pump and fuel return line, even if the pump was something the vehicle already had, so you should be checking and confirming it even if you didn't notice any problems.
VR-VY Holden BCM Simulator: LINK
Ford Smartlock Bypass Module: LINK
