ABS Hacking

jlvaldez · Post by **jlvaldez** » Thu Jan 30, 2020 11:41 pm

I have TIS200 on my computer and a tech 2. Also have a J2534. I can pull the cal ID from my EBCM no issues. Not sure where it would live on my machine though, if it's already in TIS2000.

Upon some googling, I realize you apparently can't use a J2534 device to sniff the bus. However, I can use a "shim DLL" to intercept the J2534 calls from TIS2000 to my J2534 tool and dump that to a file for analysis... I'll play with this tonight and see if I can get anywhere.

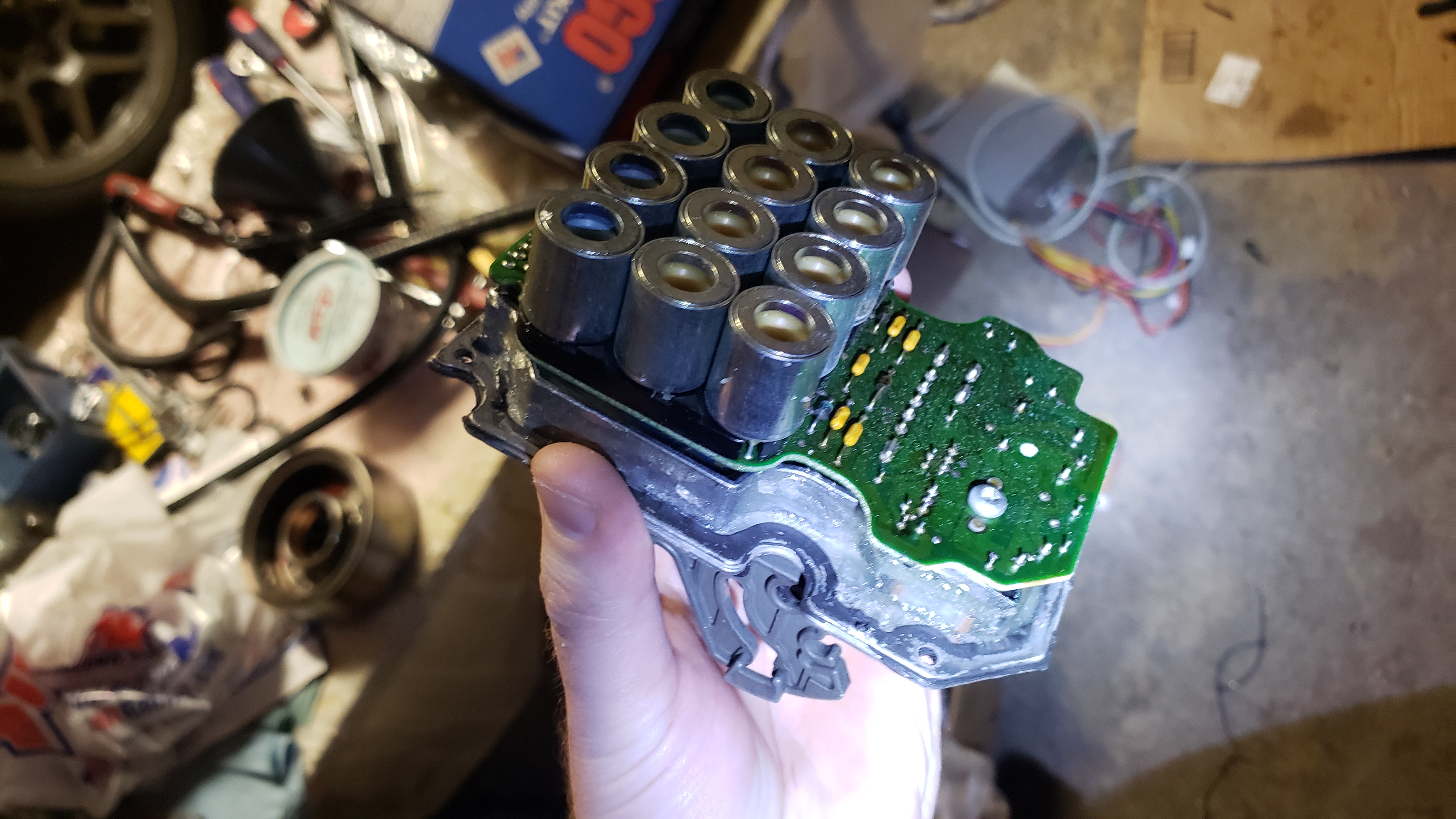

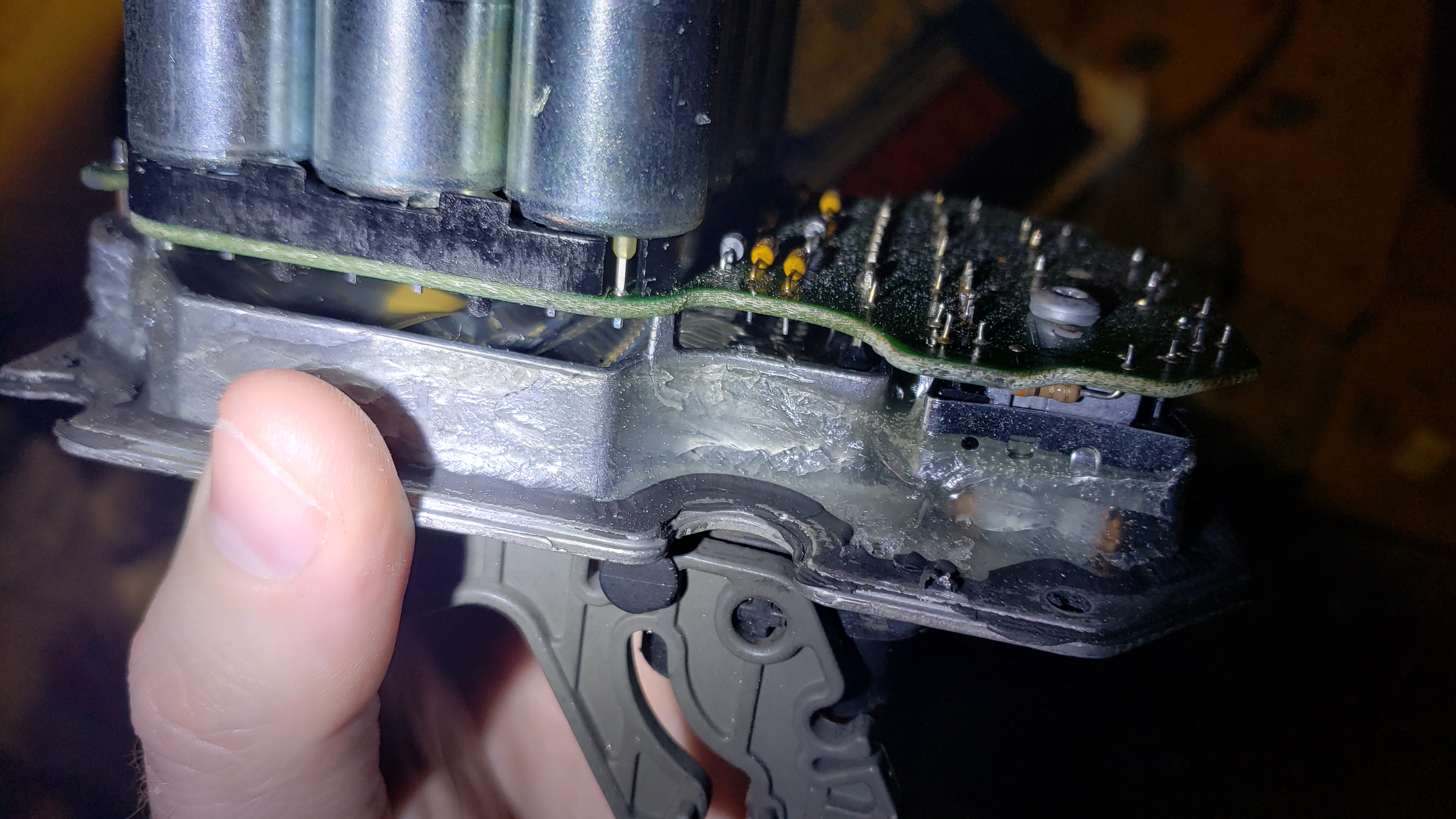

I have the 2001+ module semi disassembled. Looks like I'll need to desoldee the two boards and then remove the epoxy to get anywhere, though.

Post by **kur4o** » Fri Jan 31, 2020 12:01 am

I did some hack job and this is what I got.

flash_data_upload.txt

12220685.bin

It looks like that only 01-02 ebcm can be updated via tis2000. 03-04 might be already upto date.
The ebcm also could be a delphi variant of bosch 5.3 ebcm. If that is the case, no wonder it is complete POS.
The binary doesn`t look similar to motorola code. It is also a calibration update only. The main code might reside on the processor.

jlvaldez · Post by **jlvaldez** » Fri Jan 31, 2020 12:22 am

In my Vette, tech 2 reports:
part number: 12204890
Base part number: 9390570
ROM part number: 12204888
Calibration part number: 12204887
System ID: B6B0
Config ID: 10A2A8

My TIS2000 isn't connecting to my J2534 and my tech2 is in my other vehicle

Post by **kur4o** » Fri Jan 31, 2020 12:48 am

12220685.bin is an update for Calibration part number: 12204887
I guess the base and rom are the missing link. Rom also suggest it is a Read only memory.

Post by **Tazzi** » Fri Jan 31, 2020 12:59 am

If you can shoot me a VIN, I can see if I cant grab some files from an online GM programming session?

jlvaldez · Post by **jlvaldez** » Fri Jan 31, 2020 1:08 am

Tazzi wrote:If you can shoot me a VIN, I can see if I cant grab some files from an online GM programming session?

1G1YY12S315113275

From what I have read, there's a scalar that describes the maximum allowed deceleration rate before assuming you're on ice. This should live in the cal, section I'd think. Just to find the OS...

Post by **antus** » Fri Jan 31, 2020 3:25 am

that bin above looks more like cal, and doesnt seem to be hc11 or 68k code. i think your right about the rom, I think we are looking at calibration data, but how make sense of it with no code and no off the shelf tools. our bcm code here seems to be in rom, with a built in eeprom for cal data. I think that was the design choice for most the smaller module in the car. maybe we will need to build a tool that can unlock the module and start sending read commands and see if we can locate and read the rom.

Post by **Tazzi** » Fri Jan 31, 2020 4:26 am

So we have the following update using that VIN:


Attached is the file it uploads

Post by **Tazzi** » Fri Jan 31, 2020 4:32 am

I think I have also extracted the kernel... although no way of verifying without simulating a module on bench.

jlvaldez · Post by **jlvaldez** » Fri Jan 31, 2020 7:29 am

Tazzi wrote:So we have the following update using that VIN:
Attached is the file it uploads

Nice, I'm two versions out of date.

So now to figure out how to read out the on CPU EEPROM?

As mentioned, I have a later mode EBCM I can use (or ship to someone who knowledgeable).
