Awesome! Did you wanna sell a trigger wheel? Will need to investigate the sensor mounting and how that can be done, not much room on the front oil pump cover.wake77 wrote:I now have a new project and i am putting a 1uz into a hx 1 tonner, i have a trigger wheel already cut to mount on the back of the balancer and just have to make the sensor mounts for it. will be a little while untill i get it running stil getting the engine mounted in the car at the moment.
1UZ Toyota Ignition Conversion
- VL400
- Posts: 4991
- Joined: Sun Mar 01, 2009 2:54 pm
- cars: VL Calais and Toyota Landcruiser. Plus some toys :)
- Location: Perth, WA
- Contact:
Re: 1UZ Toyota Ignition Conversion
Re: 1UZ Toyota Ignition Conversion
VL400 i'm sure i could sell you a wheel , i just want to get it running first. i haven't decided on the mountin position for the sensors as yet.
- VL400
- Posts: 4991
- Joined: Sun Mar 01, 2009 2:54 pm
- cars: VL Calais and Toyota Landcruiser. Plus some toys :)
- Location: Perth, WA
- Contact:
Re: 1UZ Toyota Ignition Conversion
Thanks wake77, see what you can come up with first and will go from there. Will be looking forward to your updates!
Re: 1UZ Toyota Ignition Conversion
here are some pictures of the setup on the commodore
- Attachments
-
- IMGP3776.JPG (61.14 KiB) Viewed 7108 times
-
- IMGP3775.JPG (65.56 KiB) Viewed 7106 times
-
- IMGP3773.JPG (64.45 KiB) Viewed 7107 times
Re: 1UZ Toyota Ignition Conversion

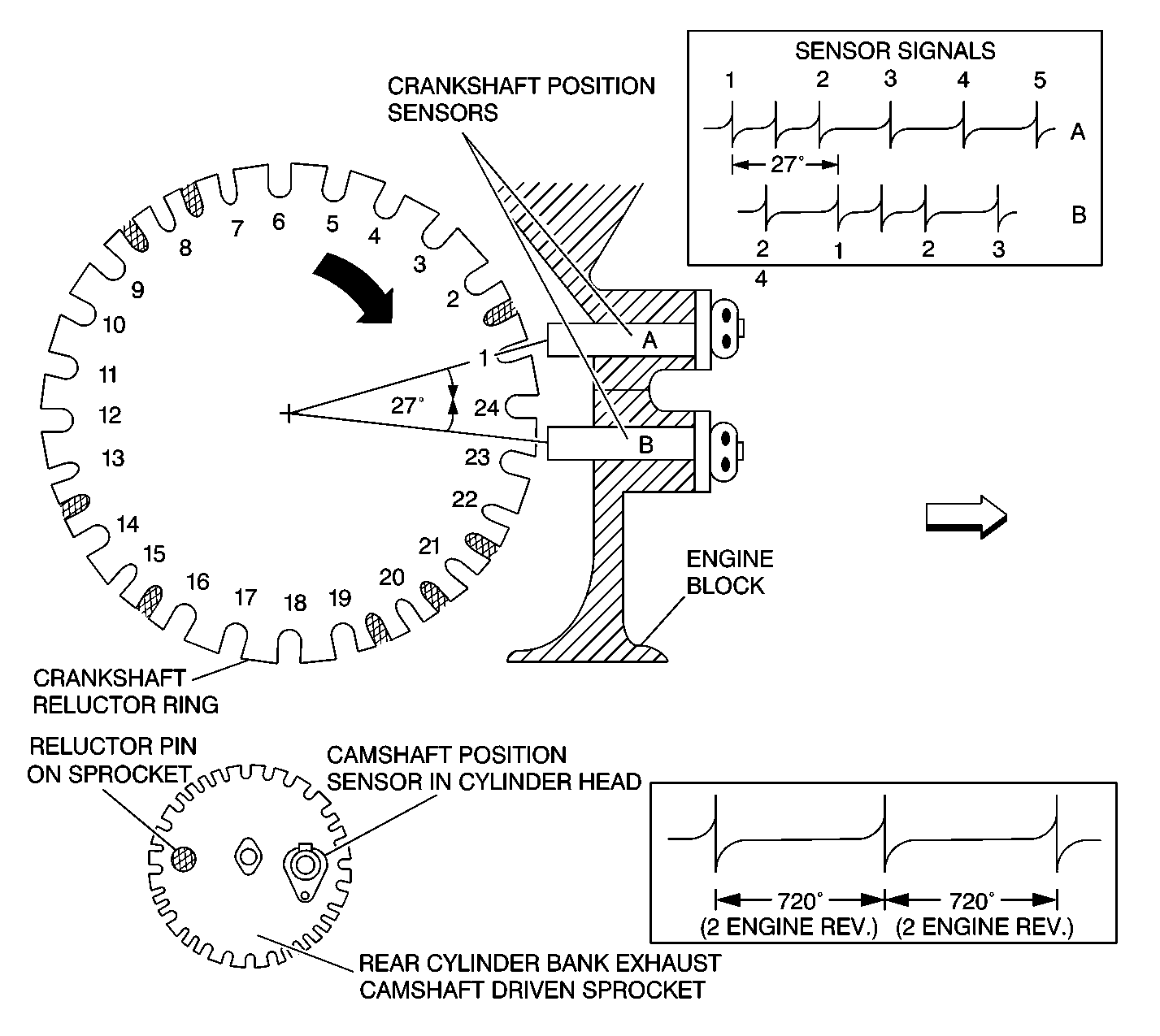

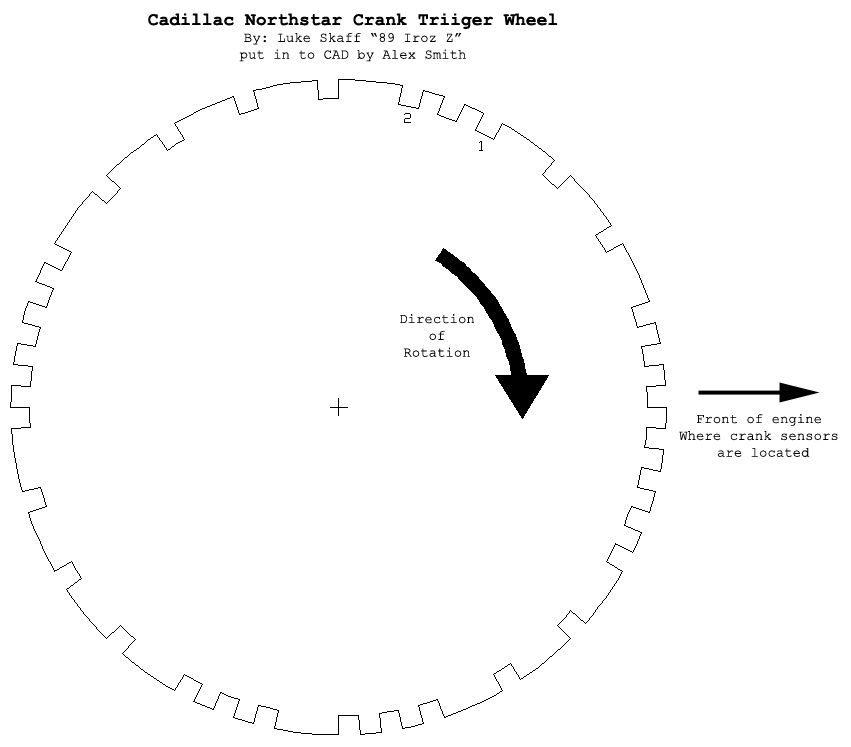

and some more details
- Attachments
-
- northstar.rar
- (973.3 KiB) Downloaded 415 times
-
- northstar setup.gif (34.37 KiB) Viewed 7099 times
-
- NordstarCrank.gif (10.73 KiB) Viewed 7097 times
- VL400
- Posts: 4991
- Joined: Sun Mar 01, 2009 2:54 pm
- cars: VL Calais and Toyota Landcruiser. Plus some toys :)
- Location: Perth, WA
- Contact:
Re: 1UZ Toyota Ignition Conversion
Thanks for the pics, really shows what a challenge it was to get the triggers setup! Nicely done. The biggest issue on the 1UZ i think is the lack of meat in the timing cover.

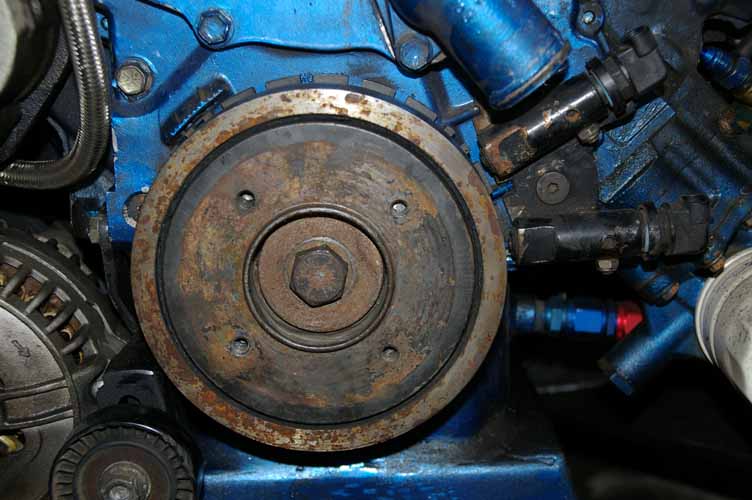

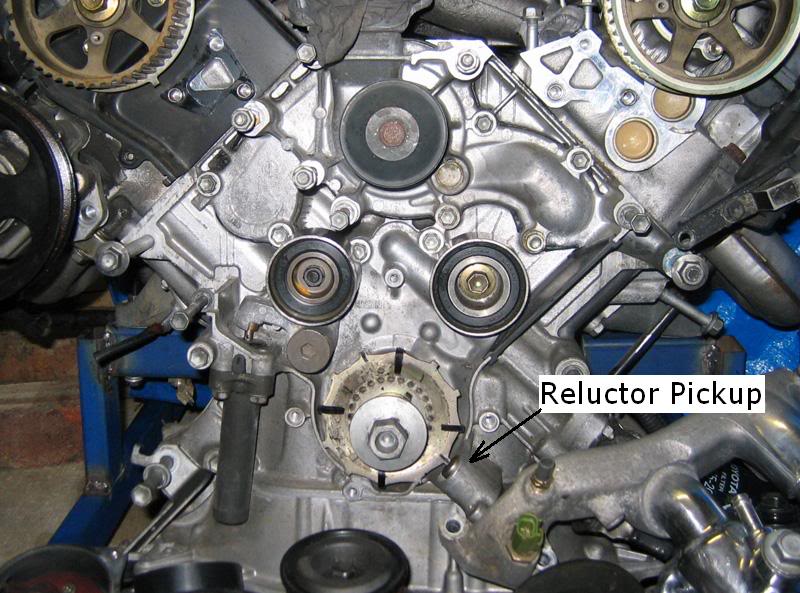

For others, this is what the crank trigger on a 1UZ looks like....
For others, this is what the crank trigger on a 1UZ looks like....
- VL400
- Posts: 4991
- Joined: Sun Mar 01, 2009 2:54 pm
- cars: VL Calais and Toyota Landcruiser. Plus some toys :)
- Location: Perth, WA
- Contact:
Re: 1UZ Toyota Ignition Conversion
I had a crazy idea for a really simple solution - I think!
After reading the thread here I thought why not use a D1927A 4 cyl DIS module. Instead of dual pole coils for a wasted spark 4cyl use two regular coils and feed the factory dizzies. The crank trigger needs to be basically double what the normal setup has, so two sync events for each crank rotation. The dizzies take care of which cyl to fire, all I need is for the ignition module to alternate the coils firing.
The disadvantage though is running a 4 Cyl DIS at double the RPM it was designed for and still have the dizzes which would be nice to get rid of.
Crazy idea?
After reading the thread here I thought why not use a D1927A 4 cyl DIS module. Instead of dual pole coils for a wasted spark 4cyl use two regular coils and feed the factory dizzies. The crank trigger needs to be basically double what the normal setup has, so two sync events for each crank rotation. The dizzies take care of which cyl to fire, all I need is for the ignition module to alternate the coils firing.
The disadvantage though is running a 4 Cyl DIS at double the RPM it was designed for and still have the dizzes which would be nice to get rid of.
Crazy idea?
- delcowizzid
- Posts: 5627
- Joined: Sat Feb 28, 2009 8:38 pm
- Location: Wellington NZ
- Contact:
Re: 1UZ Toyota Ignition Conversion
good thinking mate that will get past the crossfire issue.wonder what the max rpm a 4 cylinder dis module can go

If Its Got Gas Or Ass Count Me In.if it cant be fixed with a hammer you have an electrical problem
- VL400
- Posts: 4991
- Joined: Sun Mar 01, 2009 2:54 pm
- cars: VL Calais and Toyota Landcruiser. Plus some toys :)
- Location: Perth, WA
- Contact:
Re: 1UZ Toyota Ignition Conversion
Dunno, but that is my concern as at 6500RPM its like running a 4 cyl at 13k RPM.
Here is some more info...
http://www.megamanual.com/ms2/GM_DIS.htm
Here is some more info...
http://www.megamanual.com/ms2/GM_DIS.htm
Re: 1UZ Toyota Ignition Conversion
me thinking out side of the box
why not fit two 4 cyl units one each side two crank trigger wheel and pickups one for each side and wire them together and adjust the bin for 8 cyl
then thinking about it the 808 may not like the load of two units
may be able to get away with one trigger wheel and two sensors setup for each bank
just a thought
why not fit two 4 cyl units one each side two crank trigger wheel and pickups one for each side and wire them together and adjust the bin for 8 cyl
then thinking about it the 808 may not like the load of two units
may be able to get away with one trigger wheel and two sensors setup for each bank
just a thought
Don't make excuses. Make more horsepower.
