I've got double fire set to start at 6ms and stop at 3ms.
At warm idle the injector bpw is between 2.5 and 3, so it's double fire as soon as the throttle is cracked and single fire when it returns to idle.

I was giving mrfiat a hand with some fine tuning yesterday - originally we'd set his dekka 60s to single fire only, but injector DC was getting up to near 40% @ 10 psi boost so we set it for single fire below something like 1.5ms and double fire above that and it seemed to work well so we chucked more boost at it and raised the rev limit so the single/double fire settings were the first thing I checked on mine this morning (after the fan settings that is...)
Probably not really necessary to set mine up for single fire at idle, but mrfiat gave me his old 34lb injectors so when I swap those in it might come in handy.

And the oil leak is coming from... the timing cover
I've re-tightened everything and am about to go and see if that's fixed it, or whether I'm pulling it all apart again

[Holden202T]

yeah the single fire option is really handy at idle for big injectors, I have the same settings with deka 80's and methanol, need single fire below 3ms i think it is to get it to idle a bit better with the garden hose fittings

[festy]

After ignoring the car for a week or two the gasket fairy still hadn't snuck in one night and fixed it for me, so I started pulling it all apart again myself

Well I think I found the problem


That o ring is for the main oil passage, that's the oil pump outlet. There should probably be a hole in the gasket to accommodate that...


Obviously my oil pump works (or at least did) - it made enough pressure to *just* blow a small hole through the gasket. That explains why I couldn't stop the leak at least.

[Jayme]

well thats a useful gasket..... was it a purchased brand name one? I Assume it must fit various models hence the rather important hole missing?

[Holden202T]

yeah that's not going to work too well!

[festy]

well thats a useful gasket..... was it a purchased brand name one? I Assume it must fit various models hence the rather important hole missing?

I bought it from one of the largest Alfa parts shops in the US. It came with one left side gasket and 2 vastly different right side ones - the other one was completely different whereas this one lines up on the studs and the water jacket etc matches - it's just this one pesky hole that's in the wrong spot.
As far as I know this engine used the same timing cover (and block) from the 60s onwards so no idea what's happened here.
I'll send them the pics and see what they say about it

[festy]

I got a reply from the shop, they agreed that the gasket wasn't the right one for the engine but couldn't offer much of an explanation or solution
They did offer me a store credit for the $6 I'd paid for the gasket though, but didn't have any other types than what they'd sent me.

So I bought a roll of 0.8mm jointing paper from my local parts shop then spent half an hour making a couple of hole punches from whatever I could find and made my own gasket.
The two gaskets on the right are the ones I bought, the one on the left is mine:


While the harmonic balancer was off I took the opportunity to clean up the trigger notches a bit.

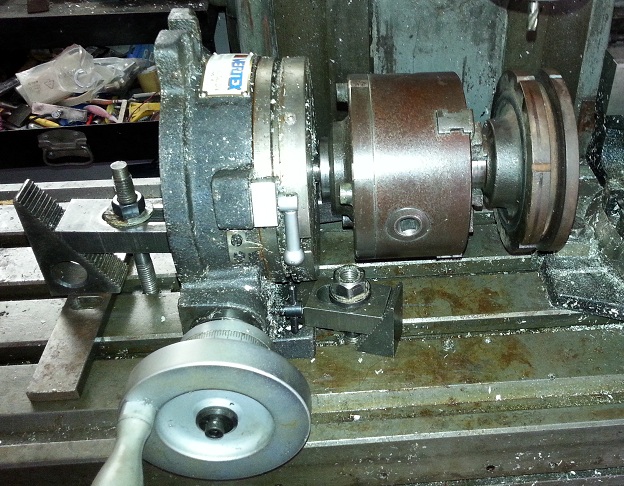

When I originally cut them I marked them out with a printed template then clamped the HB face down to my mill table and cut the notches with a 1/4" end mill so they had rounded bottoms rather than a square profile.
Since cutting them I've acquired a rotary table, which makes the process a million times easier and more accurate.


One of the notches was right on the TDC timing mark, so dial that in as 0*


The original notches were pretty close, at 120* they were still dead on but I did find one that was about 4* out. I was re-cutting them slightly wider, so managed to bring that down to about 1.5* out.

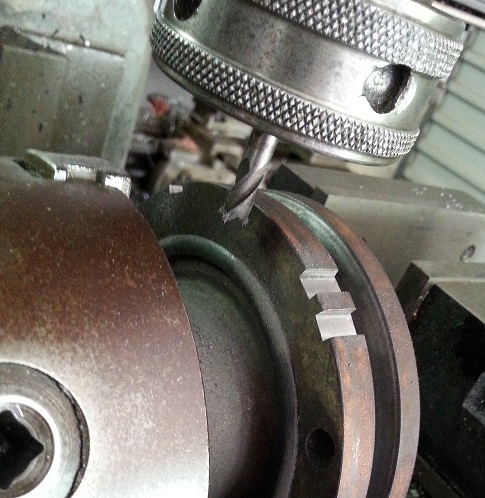

Now they're all equal depth and width, with a nice square profile


Then I thought seeing as I had the rotary table set up, why not add a couple of timing reference marks so I can work out what my actual reference angle should be set to.

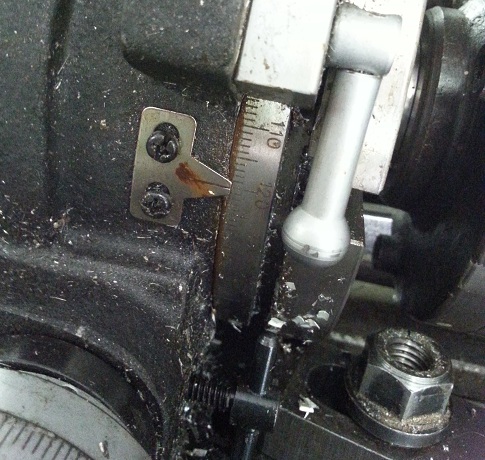

I dug out my smallest endmill and very cautiously engraved a mark at 0*, then 10* and then 20*. I was sure the tiny endmill was going to snap at any moment but it hadn't yet, so I threw caution to the wind and went back to quickly add 5 degree marks too.
After I finished the last one I grabbed some red enamel and filled the marks, and that was when I noticed I'd cut them at 0, 5, 10, 14 and 20 degrees
Oh well, I really only need the 0* and 10* marks anyway...


[festy]

When I was putting the radiator back in I noticed that the thermo fan's bearings had a bit of a growl, so made up some brackets to mount a smallish ebay fan that I had left over from something else.
It weighs a lot less and seems to move roughly the same amount of air, so will see if it will do the job.
If not I'll either add a second one or get a larger fan but it's not like this car will ever be stuck stationary in traffic...
