Coding my own aftermarket ECU [beta available]

[AngelMarc]

Missed a ";" in an "if" that Pico apparently didn't care about.

Code: Select all

   currentOffDelay4 = Scaled3;//On time after off time
    if (RPMTimeavg > 125000){
      Scaled3 = 0; //Fuel off if RPM below minimum = 20RPM
    }

Then a replace all. A space on the end of each of those by the way.
Yes, those visible typos were fixed after copying back to IDE.


Then added the "UL" markers on this constraint.

Code: Select all

RPMTimeavg = constrain(RPMTimeavg, 261UL, 125000UL);

Haven't tested yet, but it compiled.


Don't know if it has a 64 bit timer for micros(), so it may be a had idea without extra work.

[AngelMarc]

ohhhh fuck...
Shouldn't have updated original post without testing on Pico.
Luckily I saved a copy. That was before the rev limiter addition.
It'll be a minute.

[AngelMarc]

Fixed. Compiles for Teensy without braking Pico.
Haven't tested teensy and don't plan to any time soon.
the ";".
"UL" in the RPM averaging, rev limiter, and constraint line.
Backup had the rev limiter but not the 20RPM minimum.
Added that to backup.
Double checking those features now.

[AngelMarc]

Rev limiter is broken.

[AngelMarc]

Silver lining, my dumb ass broke it with the low RPM cut earlier.


AI fixed it...


Didn't add the high RPM fuel cut.
Retested and measured high cut.


Low works too. Had to manually count time per division at such low speed.


[AngelMarc]

Clearly I need to go back to putting updates in most recent comment and leave the original post alone.
After that test, I updated original post and verified it at least compiles for Teensy.

[AngelMarc]

God damn it. had to fix low RPM fuel cut too.

[AngelMarc]

What a way to start my morning.
But it's fixed, updated original post.

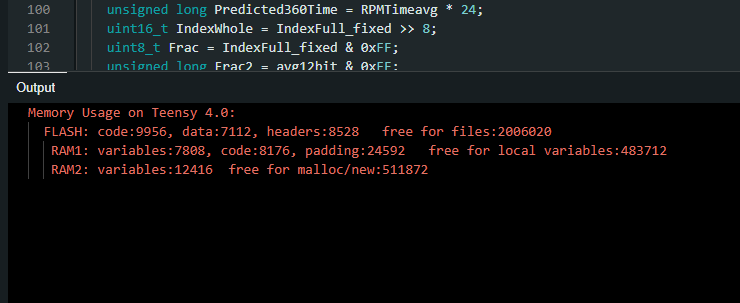

Compiles for Teensy 4.


And the constraint for indexing the array was set above zero, to same value I wanted to cut fuel; so it was never "less than".

[AngelMarc]

Without updating original post, I'm going to look into adding -
"keyed" on off, because just cutting power to fuel or spark causes unpredictable spark timing or lean condition. You'll want to be able to stop without blowing the engine if your throttle sticks open or something, or a nitrous leak, or whatever.
a fuel relay trigger, prime and if engine stops it shuts off, leaky injectors happen. Nobody likes hydrolock.
an alternator trigger, because duh.
and the external correction input for fuel and spark, people like they're widebands. The datalogger I eventually make should be able to calculate a desired difference. And transmission torque reduction, and whatever add-on people might make for some, idk, drag racing timed spark retard/2 step, without needing to make an entire ECU for it.

[MPC001]

Kudos
