Re: Toyota Powered VL Calais

Post by Holden202T »

hahahahaha love the blue brakes :) woulda been some smoke coming off them i reckon :P

handy of lexus to make the VSS so easy to mod!

also i slightly made your monitor pic smaller so you can see the right axis info ... so i am guessing the top degrees is advance and the bottom is engine coolant ?
User avatar
VL400
Posts: 4991
Joined: Sun Mar 01, 2009 2:54 pm
cars: VL Calais and Toyota Landcruiser. Plus some toys :)
Location: Perth, WA
Contact:

Re: Toyota Powered VL Calais

Post by VL400 »

Thanks. You just need a wider screen though :P Yeah top is green for spark advance and the bottom has both VSS and coolant as green - coolant is the trace at about 70deg.

The passenger side rear brake still had some old diff oil left in the pads (axle needed to be replaced after a diff shop used an angle grinder to remove the bearing collar and stuffed up where the oil seal runs) so was smoking heaps! Nothing like burning diff oil in the shed :lol:
User avatar
Holden202T
Posts: 10357
Joined: Sat Feb 28, 2009 9:05 pm
Location: Tenambit, NSW
Contact:

Re: Toyota Powered VL Calais

Post by Holden202T »

diff oil is bad enough without burning!! i've just tonight been doing ratio swap in the gemini, and i just can't get used to the smell!
User avatar
vlad01
Posts: 7953
Joined: Mon Oct 08, 2012 6:41 pm
cars: VP I S
VP I executive
VP II executive
VP II executive #2
VR II executive
Location: Kyneton, Vic

Re: Toyota Powered VL Calais

Post by vlad01 »

you mean nasal sensation?

I wouldn't call it a smell, more feeling in your nose. Its weird
I'm the director of VSH (Vlad's Spec Holden), because HSV were doing it ass about.
User avatar
VL400
Posts: 4991
Joined: Sun Mar 01, 2009 2:54 pm
cars: VL Calais and Toyota Landcruiser. Plus some toys :)
Location: Perth, WA
Contact:

Re: Toyota Powered VL Calais

Post by VL400 »

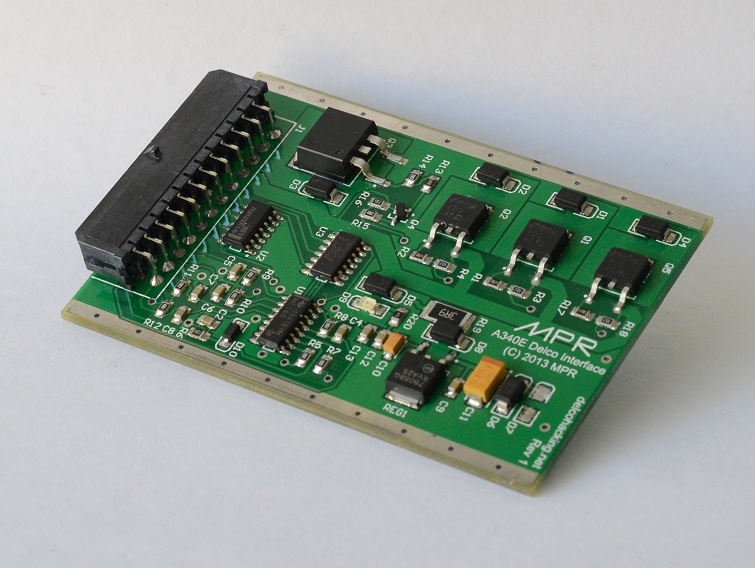

Finally got around to building the trans interface board. It takes the delco signals for the two shift solenoids and converts them to high side drivers (the toyota trans needs 12V switched unlike the delco switching ground), a reverse lights output driver, and a TCC driver (the delco cant supply enough current). It also takes the A340E Toyota shifter switch outputs (a switch for every position) and converts them to the 3 delco range signals it uses to interpret the shifter position.
A340E Rev1 SM.JPG
A340E Rev1 SM.JPG (175.25 KiB) Viewed 6344 times
VX L67 Getrag
Posts: 2935
Joined: Sun Aug 02, 2009 9:16 pm
Location: Bayside, Melbourne, Victoria
Contact:

Re: Toyota Powered VL Calais

Post by VX L67 Getrag »

Holy crap there's some smarts right there, right where the Delco needed it!
User avatar
The1
Posts: 4691
Joined: Mon Jan 04, 2010 10:23 am

Re: Toyota Powered VL Calais

Post by The1 »

awesome stuff VL
User avatar
Holden202T
Posts: 10357
Joined: Sat Feb 28, 2009 9:05 pm
Location: Tenambit, NSW
Contact:

Re: Toyota Powered VL Calais

Post by Holden202T »

surely this thing has to be close to some road testing ??
User avatar
VL400
Posts: 4991
Joined: Sun Mar 01, 2009 2:54 pm
cars: VL Calais and Toyota Landcruiser. Plus some toys :)
Location: Perth, WA
Contact:

Re: Toyota Powered VL Calais

Post by VL400 »

Still got one more major thing to get working before some road testing, will post some pics when its finished.
User avatar
Holden202T
Posts: 10357
Joined: Sat Feb 28, 2009 9:05 pm
Location: Tenambit, NSW
Contact:

Re: Toyota Powered VL Calais

Post by Holden202T »

:silent:
