VZ V6 E55 ECU Brute Force Reset Tool & PIM Relink

[jmsmotorsport]

When trying to brute force all I’m getting is a Buffer Empty No Response continuously coming up. I can get the ECU Info and even changed the VIN so I know it’s all connecting and doing as it should? What am I doing wrong?

[The1]

if buffer is empty then cable has no data from ecu or perhaps cable doesn't support commands. What cable are you using?

[d3mi]

Will this brute-force tool also work for an Opel Vectra OPC (Z28NET Engine) ECU? I believe it's also compatible with the E55 ECU.


I have several tools available (AutoTuner, K-Tag) but none of them can perform a Full Read

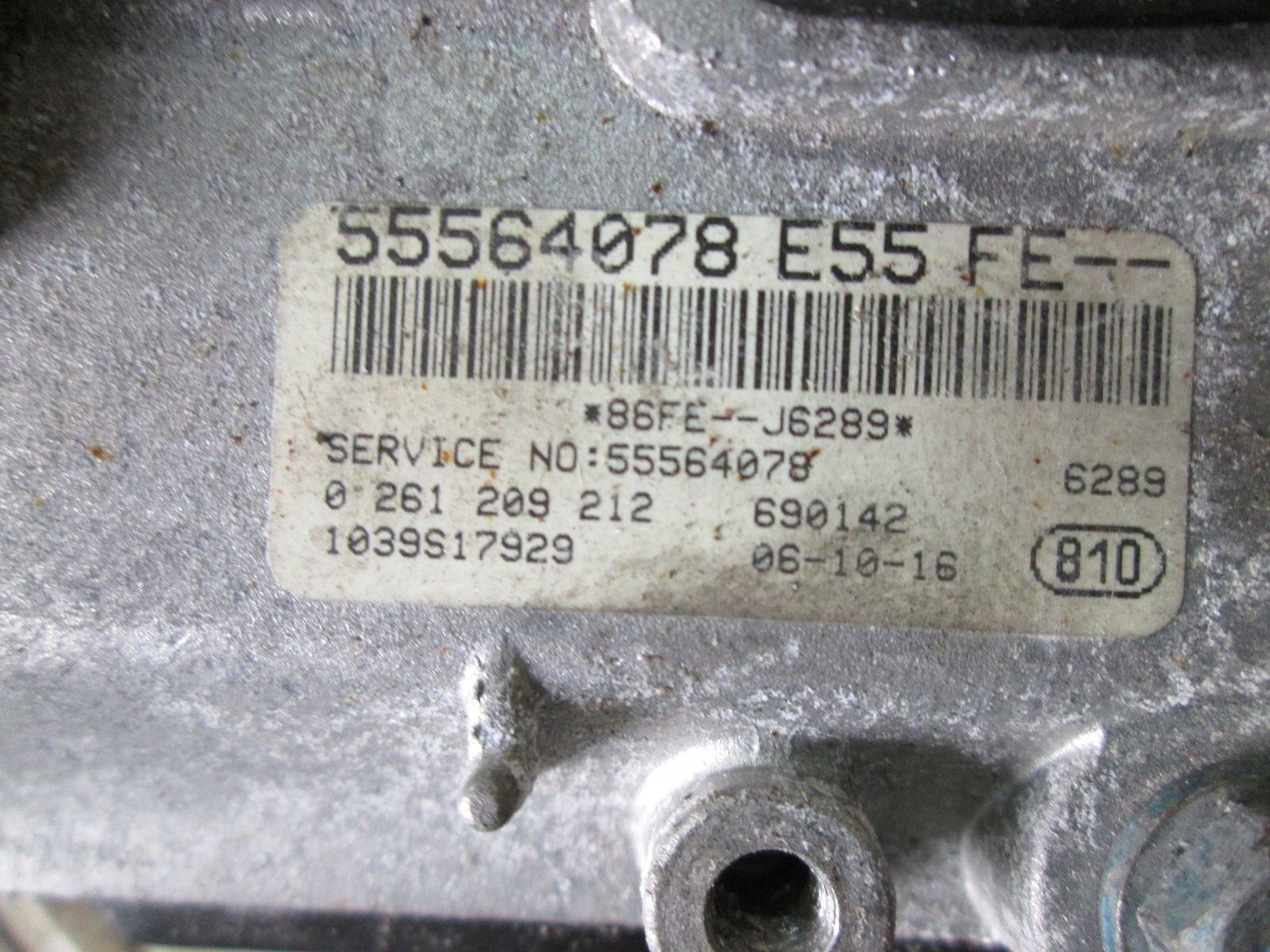

I purchased a donor ECU, because the previous one died . I only need the PIN, and I can unlink it using OP-COM. Its an Bosch ME9,6

WhatsApp Image 2025-01-19 at 16.58.20.jpeg

[The1]

im not sure sorry, depends if OS and cal is the same, can only try

[antus]

@d3mi Please do let us know how you go.

[d3mi]

i tried a vas5054a interface with j2534 passthru. but it didnt recognice the interface.

so i ordered an j2534 interface. it takes a few days to arrive. after that i will try and give a response.

[d3mi]

UPDATE
I got my J2534 cable and tried the Bruteforce tool, but I encountered errors. (Sorry for the photo, I couldn't insert the content directly as it was taken with a tablet.)


After that, I tried the Trionic CAN Flasher. I was able to perform an ECU calibration read and found this:


Could this be the PIN?

[Knackersjewels]

UPDATE

Could this be the PIN?

No, it isn't. Immo is in eeprom, not flash memory. You need pcmflash to read it

[The1]

as above my program wont work, your getting same response to all messages it is different ecu.

[The1]

Had a moment, some coding and vibe coding lol. Read somewhere that 7F area might be security. Normal 23 bin read reads area upto 27FFFF.

I tried reading through mode 23 the whole 7F area and can only read 7F8000-7FFFFF which is 32kb, in there i found my pin code twice 8207. Did quite a few reads you an see whats static and whats changing, looks like VIN and other details are in that area to. If anyone else wants a look. Could be IMMO data i dont know.

Another time i will try writing to the area and see what happens.
