Why I hate VZ V6 ECUs...

[delcowizzid]

I'll show you how I connected it prepare to be amassed or amused haha eeprom is emulated from what I have researched

[delcowizzid]

China clones have the bdm pinout upside down just probe it and find the power

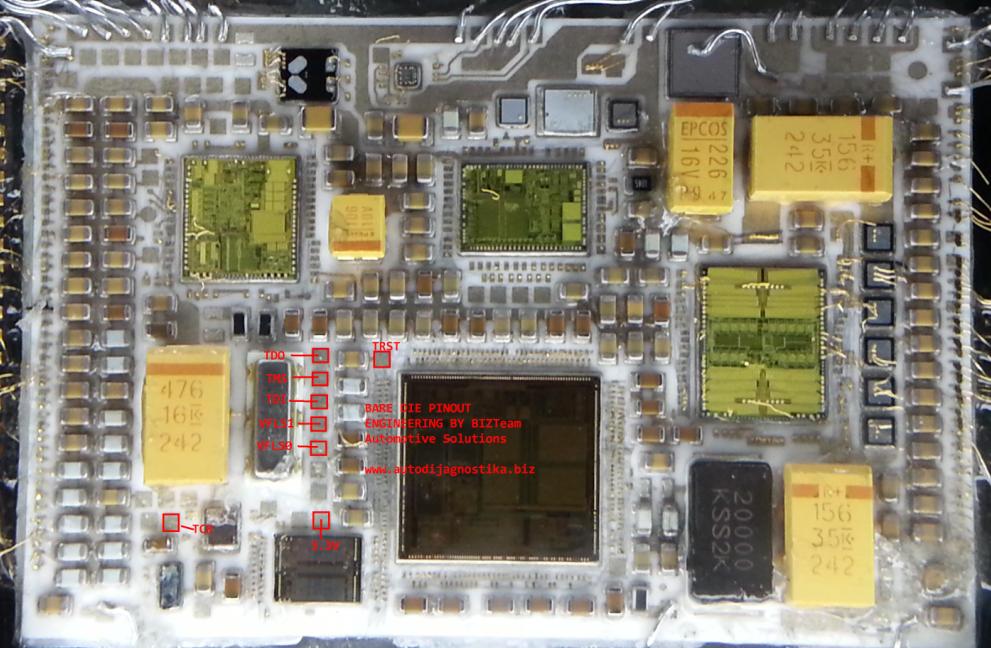

CONECTION BDM FOR ECU ME9.7 sl350 MERCEDES (1).JPG (161.3 KiB) Viewed 5426 times



[The1]

did you get a read delco?

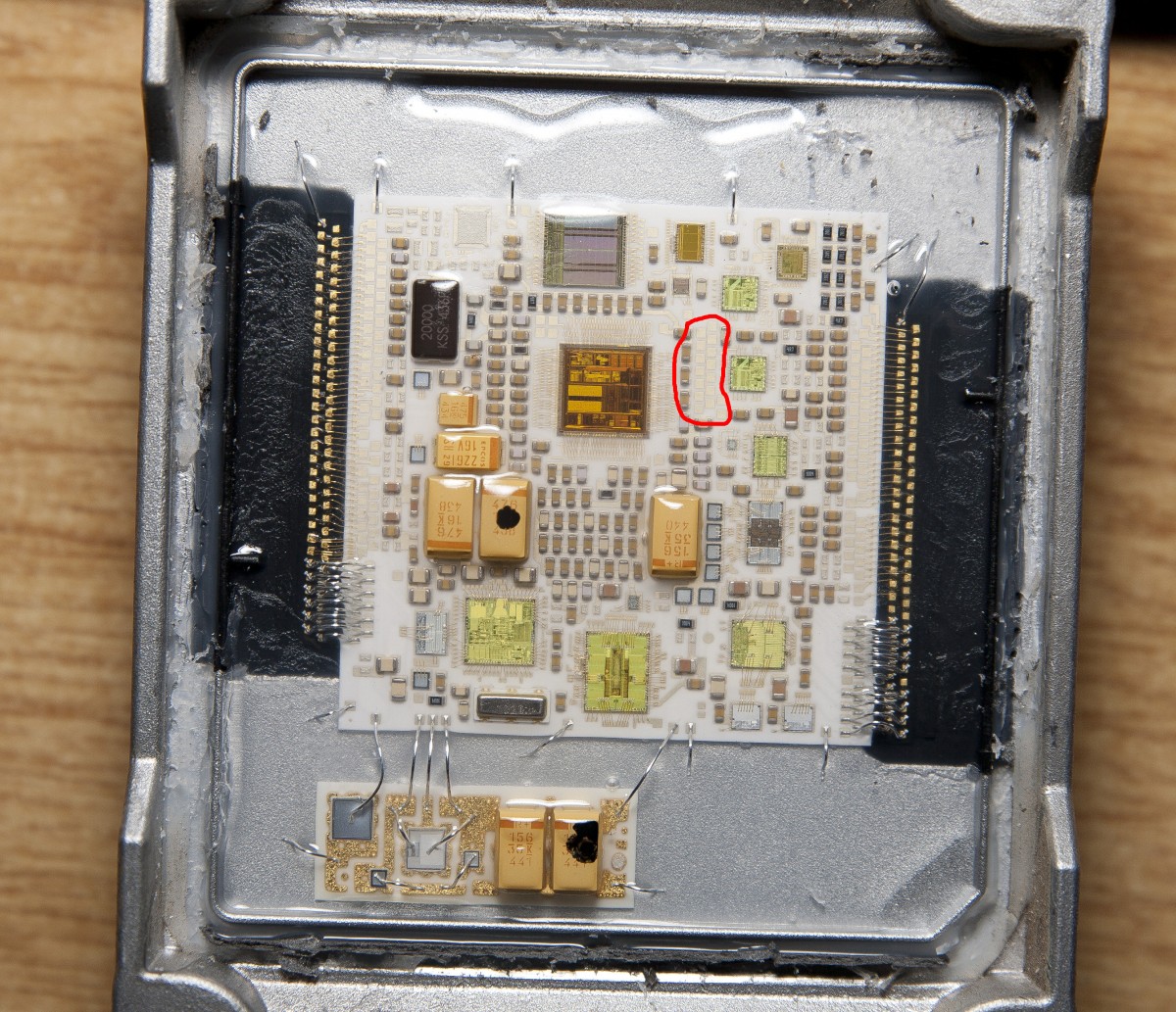

Looking at ECU id reckon these are BDM Pads. Then do like delco has with holes and pins down to the pads.

Found a similar setup on net from this page.
https://www.autodijagnostika.biz/other- ... t-adapter/


[delcowizzid]

I did get data out with jtag in a test mode designed by the people who make jtag so that you can send them the file so they can add ecus that arnt supported. There was no Me9.6 support in my version

[Tazzi]

Couldnt get a connection with PCM Micro. Although I did solder to the board.. and could very well likely messed up some wires. Just used an old junk ECU which I had the cover off anyways.

[delcowizzid]

The sprung loaded pins were cheap

[Tazzi]

The sprung loaded pins were cheap

I need some of those then.

If it is emulated eeprom, just like the E38/E67 then itll be a matter of just dumping the flash and overwriting.

Could just dump a brand new unit and flash that in to solve allllll the problems.

I have a BDM frame from the BDM100 sitting about, so that should help. All else fails... just 3d print something!

[The1]

i tried ME9 MPC563 on my KTAG but wouldn't even ID. though i tried solder on this one, yeh 3d print is a good idea, overlay a cad drawing on the image to get the exact locations then scale to size.

[Tazzi]

i tried ME9 MPC563 on my KTAG but wouldn't even ID. though i tried solder on this one, yeh 3d print is a good idea, overlay a cad drawing on the image to get the exact locations then scale to size.

Same, I couldn't even ID so I'm assuming iv probably buggered this on.

OK so.. Pogo pins it is.

Great idea with the overlay! I think the software with my UP printer allows importing an image which I can them manipulate. I'll see if I can't do that and then add though holes at the required spots.

[delcowizzid]

I layes the 10mm policarb on top dotted where I though the holes should be and drilled haha then glued the pins In I have some more 10mm if you need or could send you mine and some spare pins
