- overheat.jpg (453.82 KiB) Viewed 6454 times
Datsun 240z with L20ET
- antus
- Site Admin
- Posts: 8272
- Joined: Sat Feb 28, 2009 8:34 pm
- cars: TX Gemini 2L Twincam
TX Gemini SR20 18psi
Datsun 1200 Ute
Subaru Blitzen '06 EZ30 4th gen, 3.0R Spec B - Contact:
Re: Datsun 240z with L20ET

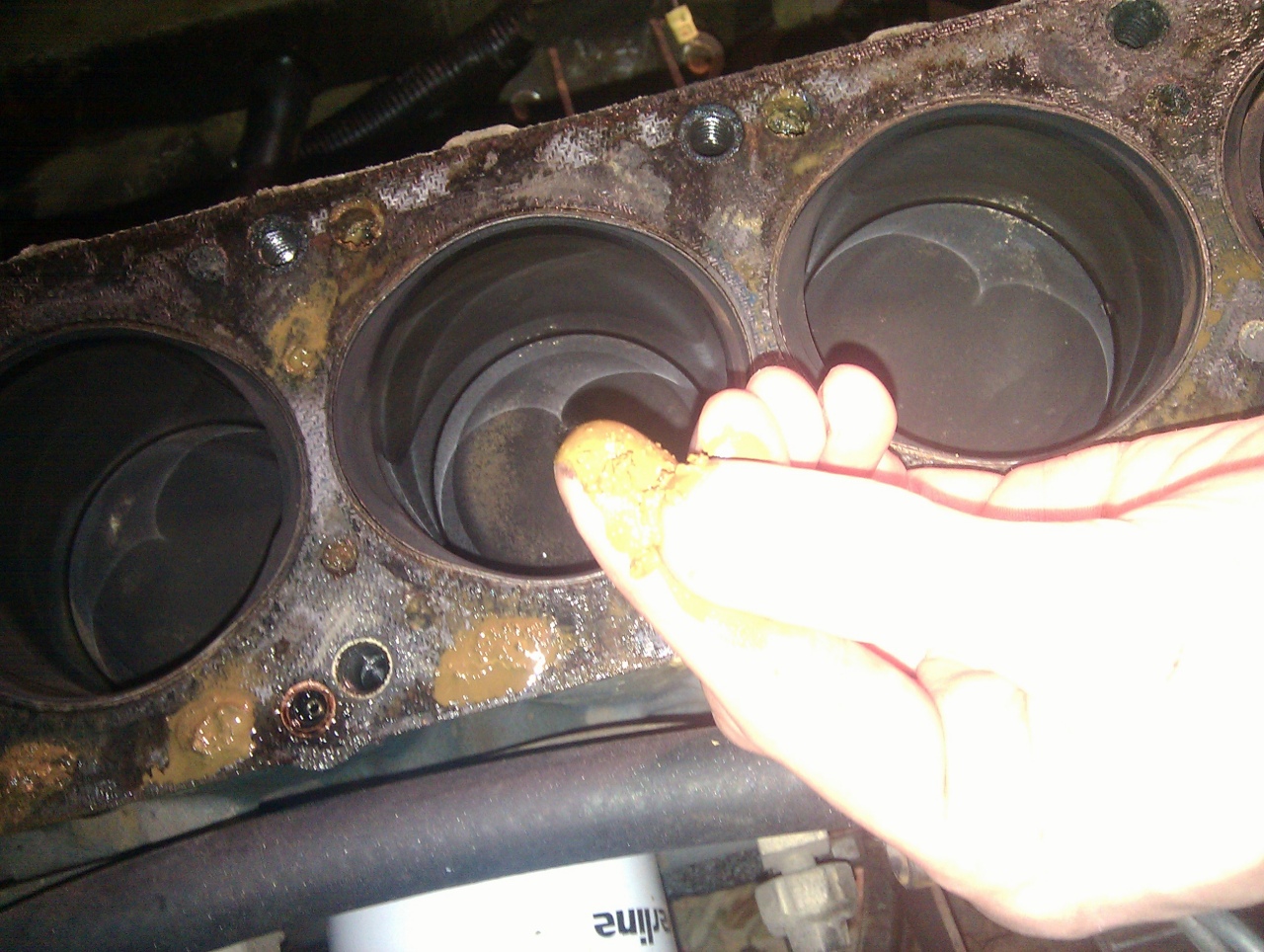

This would be why it was overheating... Some of the head bolts were definately not torqued enough, and it was the wrong gasket, missing many holes for proper water flow. So krud had just piled up in there....
Have you read the FAQ? For lots of information and links to significant threads see here: http://pcmhacking.net/forums/viewtopic.php?f=7&t=1396
- delcowizzid
- Posts: 5493
- Joined: Sat Feb 28, 2009 8:38 pm
- Location: Wellington NZ
- Contact:
Re: Datsun 240z with L20ET
gotta love the rusty mud you should see how much comes out of a v6 buick when you pull the frost plugs its like they are grout filled LOL .i pop all the frostplugs and water blast all the water jackets via the holes i do the same in the heads too before even fitting them into cars now
If Its Got Gas Or Ass Count Me In.if it cant be fixed with a hammer you have an electrical problem
Re: Datsun 240z with L20ET
frostplugs? you mean welsch plugs?
- Holden202T
- Posts: 10328
- Joined: Sat Feb 28, 2009 9:05 pm
- Location: Tenambit, NSW
- Contact:
Re: Datsun 240z with L20ET
yeah that NZ speak
Antus that is some nasty looking crud! i don't think it will take much to improve on that situation!!
Antus that is some nasty looking crud! i don't think it will take much to improve on that situation!!
No matter what the question is, the answer is always more horsepower!
Just starting out? Have a read of the getting started guide
Basic tuning of a delco ECM with $12P thread
Advanced tuning of a delco ECM with $12P thread
Just starting out? Have a read of the getting started guide
Basic tuning of a delco ECM with $12P thread
Advanced tuning of a delco ECM with $12P thread
- antus
- Site Admin
- Posts: 8272
- Joined: Sat Feb 28, 2009 8:34 pm
- cars: TX Gemini 2L Twincam
TX Gemini SR20 18psi
Datsun 1200 Ute
Subaru Blitzen '06 EZ30 4th gen, 3.0R Spec B - Contact:
Re: Datsun 240z with L20ET
We got Ross's home vacuum cleaner, stuck it in to a nearby empty coolant bottle (sealed it with tape), then made a thinner collector pipe also coming out the top of the bottle, and used that arrangement to suck the crap out the block and collect it in the coolant bottle. Worked pretty well for an ad-hoc solution, but next time we try it we reckon we can do it better. It was a funny situation!
Have you read the FAQ? For lots of information and links to significant threads see here: http://pcmhacking.net/forums/viewtopic.php?f=7&t=1396
-
- Posts: 345
- Joined: Sun Apr 05, 2009 1:07 pm
- cars: VN V6 Production Saloon
- Location: Gisborne NZ
Re: Datsun 240z with L20ET
Now thats a hard case way to do it allright might as well do some work on the head while its off and replace those FROST plugs and hose it out as delcowizzid suggested, more power = more heat so the cooling system needs to be in good shape - awesome effort guys, btw whats that writing on the doors?
Build it, Race it, Break/Bend it ; Repeat.
- antus
- Site Admin
- Posts: 8272
- Joined: Sat Feb 28, 2009 8:34 pm
- cars: TX Gemini 2L Twincam
TX Gemini SR20 18psi
Datsun 1200 Ute
Subaru Blitzen '06 EZ30 4th gen, 3.0R Spec B - Contact:
Re: Datsun 240z with L20ET
Well, this one we'll just re-assemble and run it for another couple of track days. We have a L28E lined up to replace this whole engine, and thats the one were doing for keeps. We have an MLS head gasket on order, and its in bits now to get the head chemical treated and to get it cleaned up as best we can. Then we'll run that with the same bolt ons, and if thats all good, then start upping the boost and see how quick we can make it.
The writing is "Garage of Awesome". Our race 'team' (even though were just practicing at this stage), and also Ross's and another mate Dave's car blog and business. They've got some interesting reading as well as import and local cars for sale over at garageofawesome.com.au - well worth a look if your looking for some interesting storys or another set of wheels.
The writing is "Garage of Awesome". Our race 'team' (even though were just practicing at this stage), and also Ross's and another mate Dave's car blog and business. They've got some interesting reading as well as import and local cars for sale over at garageofawesome.com.au - well worth a look if your looking for some interesting storys or another set of wheels.
Have you read the FAQ? For lots of information and links to significant threads see here: http://pcmhacking.net/forums/viewtopic.php?f=7&t=1396
- Six_Shooter
- Posts: 163
- Joined: Wed Aug 05, 2009 2:06 pm
- cars: 2005 Dodge Dakota - For Sale
2000 GMC Yukon - The Daily driver
1985 GMC Jimmy S-15 - Under reconstruction
1973 Datsun 240Z - Toy, uses GM EFI.
Re: Datsun 240z with L20ET
IIRC there was a revision to the headgasket that had less coolant passages in it to force the water to flow all the way through the engine to reduce the hot spotting of cylinders 5 and 6. The problem was that with many holes between the head and block, would allow coolant to flow through the engine without flowing past the rear cylinders.
There are also some cooling tricks to force water flow to the rear of the head to help reduce the hot spotting as well.
There are also some cooling tricks to force water flow to the rear of the head to help reduce the hot spotting as well.
2005 Dodge Dakota - The daily
1985 GMC Jimmy - A work in progress
1973 Datsun 240Z - The Toy, turbocharged and injected using GM EFI, and code59
If you're not living on the edge, you're taking up too much space.
1985 GMC Jimmy - A work in progress
1973 Datsun 240Z - The Toy, turbocharged and injected using GM EFI, and code59
If you're not living on the edge, you're taking up too much space.
- antus
- Site Admin
- Posts: 8272
- Joined: Sat Feb 28, 2009 8:34 pm
- cars: TX Gemini 2L Twincam
TX Gemini SR20 18psi
Datsun 1200 Ute
Subaru Blitzen '06 EZ30 4th gen, 3.0R Spec B - Contact:
Re: Datsun 240z with L20ET
It looks like we did not update this thread with the end of the saga. It turned out that the head gasket was not the problem, we had been sold an engine with missmatching head and block. The water galleys did not line up at all, and there was nothing we could do about it.
So we have been working on other projects, but we have acquired a good L28ET and swapped the delco gear on to it and got it in the car. We've installed some larger Ford XR6T injectors which should deliver enough fuel and hopefully the next update will be good news.
So we have been working on other projects, but we have acquired a good L28ET and swapped the delco gear on to it and got it in the car. We've installed some larger Ford XR6T injectors which should deliver enough fuel and hopefully the next update will be good news.
