[Chuff]

Perfect!

That fixed it.

[Tazzi]

Perfect!

That fixed it.

I wonder if it was the .net framework?? since the error kept mentioning 4.0 hmmm.. either way Im glad its running!!!!

[monaro308]

I haven't tried the lastest you just put up Tazzi but I had the same error message as chuff but mine was related to me setting up scantool to make sure my elm was working.
Changing the comm port number on scantool let me open SOE again...so anyone else make sure nothing else is using the same comm port.

Now my issue is SOE finds the elm device but seems force the elm to work on 115200 baud but it runs at 38400 on scantool.
Mine might be an early elm so the issue may be on my side.
I'll give your lastest one a try in a few minutes and report back.

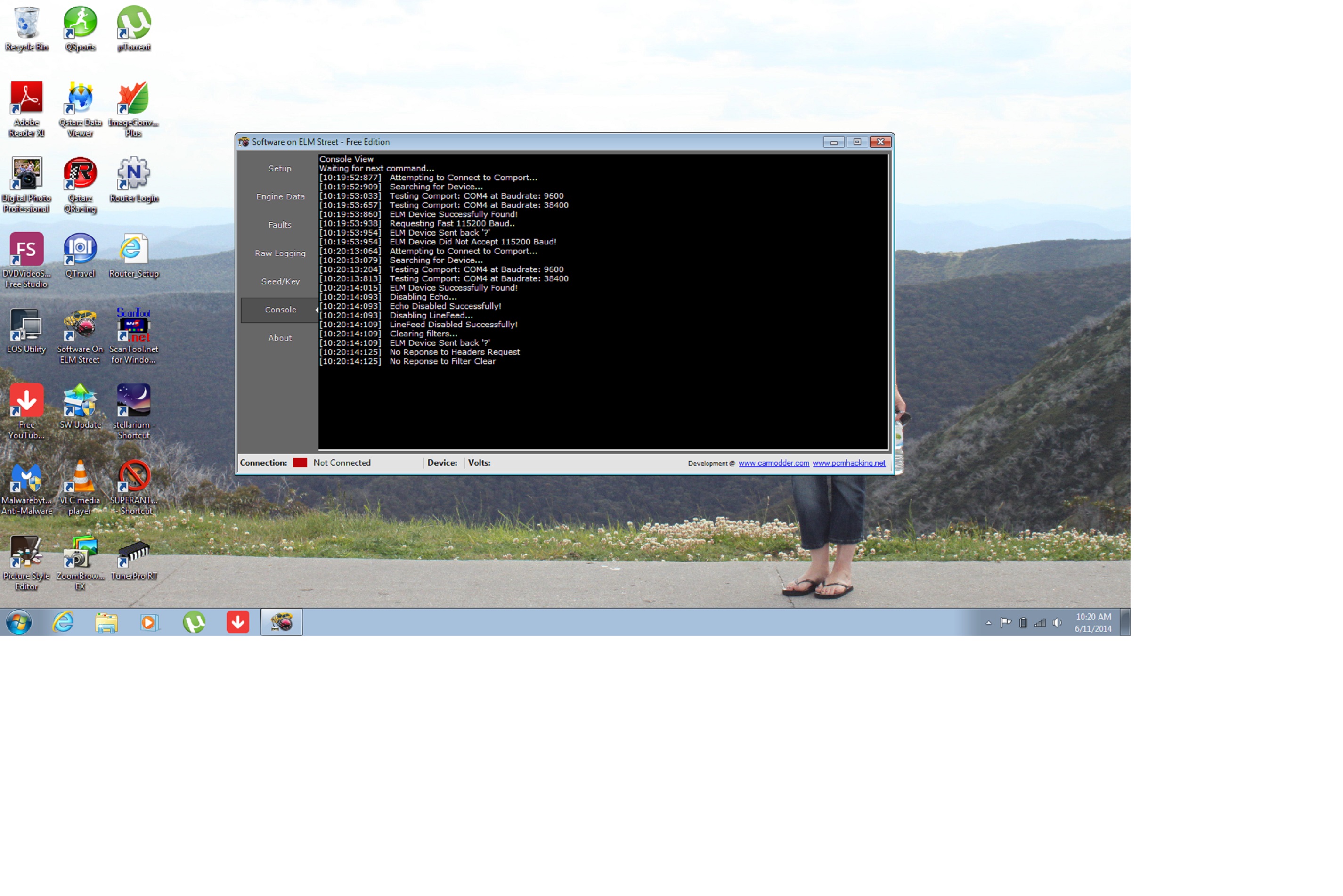

SOE connection.jpg (772.22 KiB) Viewed 4550 times

[Tazzi]

I haven't tried the lastest you just put up Tazzi but I had the same error message as chuff but mine was related to me setting up scantool to make sure my elm was working.
Changing the comm port number on scantool let me open SOE again...so anyone else make sure nothing else is using the same comm port.

Now my issue is SOE finds the elm device but seems force the elm to work on 115200 baud but it runs at 38400 on scantool.
Mine might be an early elm so the issue may be on my side.
I'll give your lastest one a try in a few minutes and report back.

It attempts to go to 115200 baud as its faster and will work alot smoother with the things it does since they are quite fast.

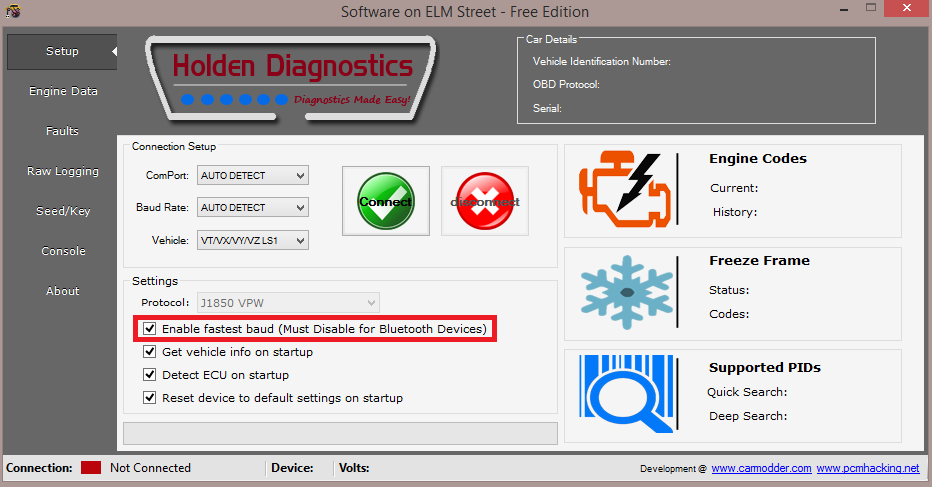

But, you can disable as seen in the image below, untick "fast baud"

Also, from the console log, it looks like your ELM doesnt support the "Clear filters" function (which is: ATAR). So it sent back a "?".
What version number is your ELM? Any idea?

The ELM must support filter clearing since I utilize it heaps in the application!


[monaro308]

I just tried the latest version and no go on my side.
I did uncheck the "enable fastest" and no luck with either versions.
Not sure what version my elm is...how can I tell?

I opened it up and its version 2.0

Out of curiosity will I require a version of Microsoft.net framework and if yes which version as I just remembered that I had to do a clean install of win7 a couple of weeks ago.

[Charlescrown]

Mines working now. Funny thing though I had to use the old code you gave me. Great now it's time to play when I can get near a car.

[Tazzi]

I just tried the latest version and no go on my side.
I did uncheck the "enable fastest" and no luck with either versions.
Not sure what version my elm is...how can I tell?

I opened it up and its version 2.0

Out of curiosity will I require a version of Microsoft.net framework and if yes which version as I just remembered that I had to do a clean install of win7 a couple of weeks ago.

Ah alright, so you are using an elm327? or something from scantool.net? Since I think 2.0 is something from scantool.net? Since your using their software with it arent you?
I'll have a look, might be able to find the developer documentation for the ELM 2.0, that might shed some light on the clear filter issue.

And yeah the application is using Microsoft.net 4.0 framework. Your windows 7 should automatically have that installed from memory.. pretty sure everything up from win7 has 4.0 preinstalled.

Mines working now. Funny thing though I had to use the old code you gave me. Great now it's time to play when I can get near a car.

Yeah I think I only reset the old code. Great to hear though.

[monaro308]

Mine is a china job that came with scantool software.
I also have a Bluetooth one as well which I haven't tried yet as I haven't added the device to my lap top but i'll give that a go too.
I have installed the FTDI drivers as well.

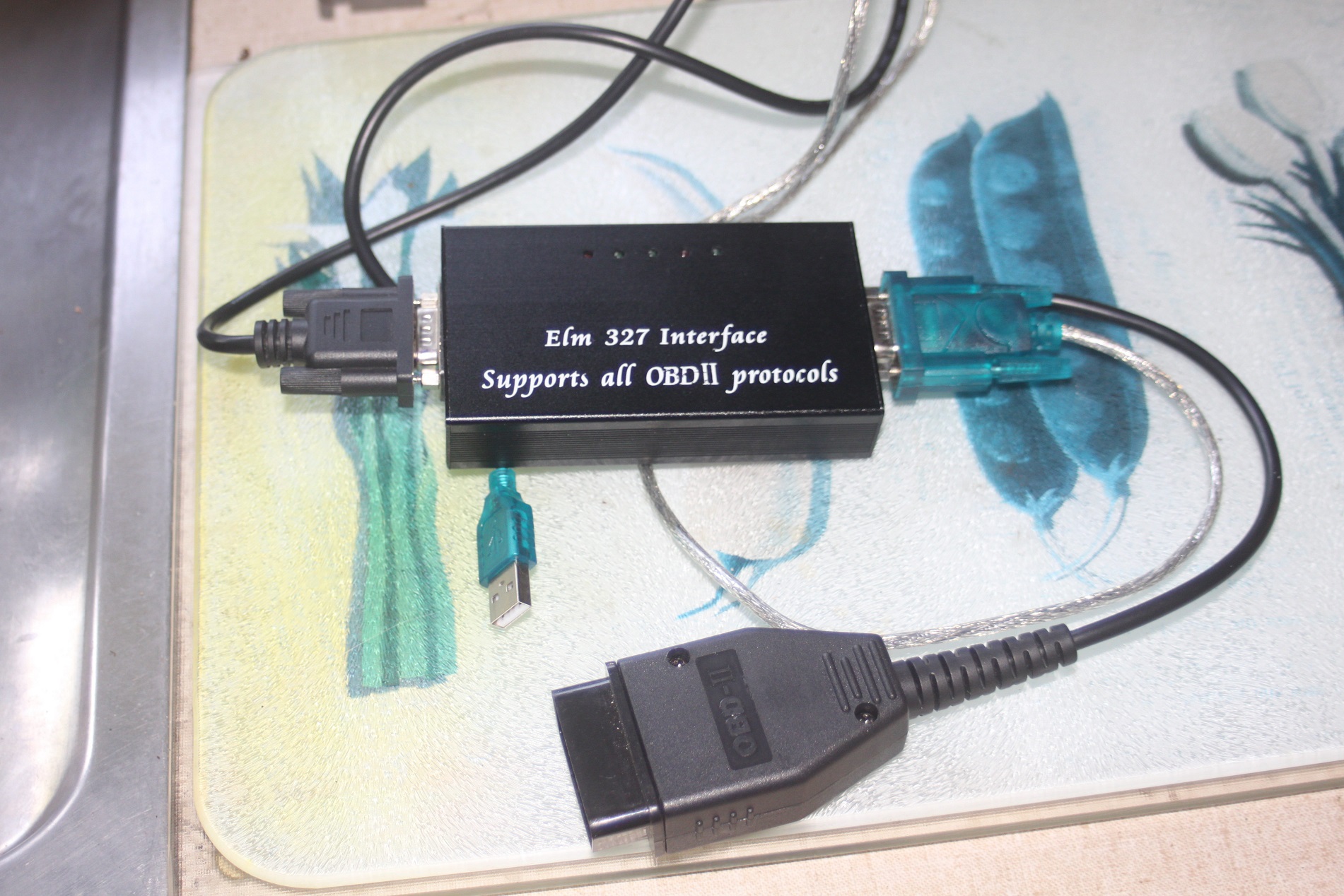

elm 001.jpg (637.89 KiB) Viewed 4535 times

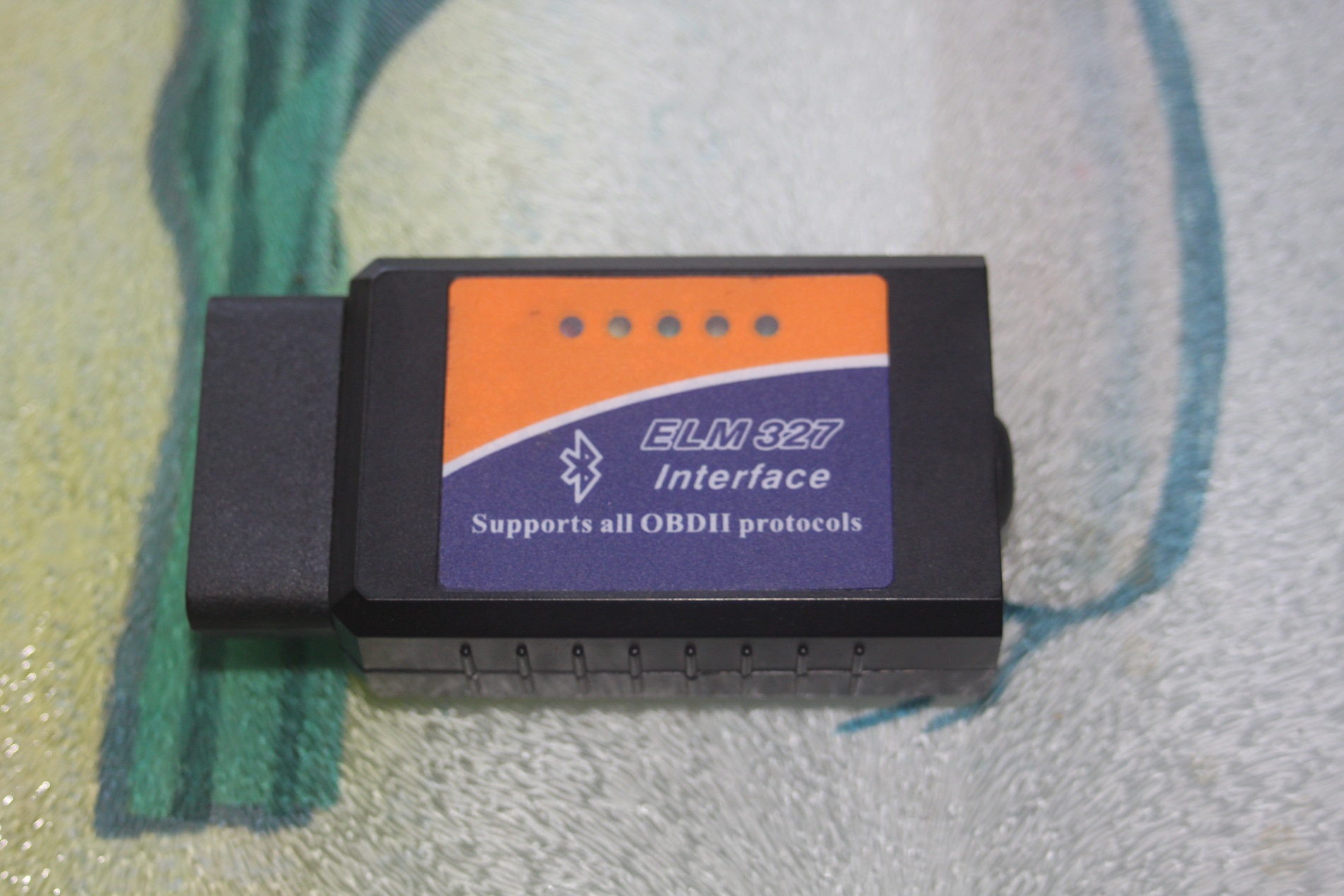

elm 002.jpg (503.37 KiB) Viewed 4535 times

[Tazzi]

That first image... wow.. that looks ancient haha. I highly doubt.. even with any firmware updates, that device wont work with SOE unfortunately.

As much as I reaaaaaalllly disagree with the bluetooth devices. It should work, just make sure to have the "Fast baud" checkbox unticked
Not doing that can cause the ELM to go haywire and cause weird annoying issues to the car (But nothing unhooking the battery doesnt fix)

[Dylan]

Can you recomemnd a good elm device? Post a link up to one you would buy?
