e38 "Hardware Key Number"

[DodgeZ]

Any idea what this is? Ulink-nt has it listed, not sure what it is for.

[antus]

More context? Something to do with the PCM, or u-link licensing? u-link is locked to the u-link hardware as the very first original revision of the usb bdm-nt was cloned and so they put that in to prevent further clones as they evolved the product. So it could be that. If so you need to request the activation key from the vendor.

[DodgeZ]

From the E38. It was random until I flashed with SPS and now it is 9999988888. Is this something to do with the other modules in the car?


VIN : 1G1YV2DW9A5107899
System Supplier ID : N/A
System Name or Engine Type : N/A
End Model Part No : 12636004
Supplier ECU hardware number : 12601203
Boot software part number : 12605900
Boot software Alpha Code : NA
Software module 1 ident : 12635863
Software module 1 ident Alpha Code : AB
Software module 2 ident : 12635684
Software module 2 ident Alpha Code : AC
Software module 3 ident : 12620883
Software module 3 ident Alpha Code : AF
Software module 4 ident : 12632084
Software module 4 ident Alpha Code : AC
Software module 5 ident : 12635507
Software module 5 ident Alpha Code : AC
Software module 6 ident : 12635585
Software module 6 ident Alpha Code : AC
Software module 7 ident : N/A
Software module 7 ident Alpha Code : N/A
Software module 8 ident : N/A
Software module 8 ident Alpha Code : N/A
Software module 9 ident : 12625892
Software module 9 ident Alpha Code : AA
Software module A ident : 12620873
Software module A ident Alpha Code : AC
Hardware Key Number : 9999988888
Programming Date : 2025-02-15
Hardware Mileage : N/A

[ironduke]

From the E38. It was random until I flashed with SPS and now it is 9999988888. Is this something to do with the other modules in the car?


VIN : 1G1YV2DW9A5107899
System Supplier ID : N/A
System Name or Engine Type : N/A
End Model Part No : 12636004
Supplier ECU hardware number : 12601203
Boot software part number : 12605900
Boot software Alpha Code : NA
Software module 1 ident : 12635863
Software module 1 ident Alpha Code : AB
Software module 2 ident : 12635684
Software module 2 ident Alpha Code : AC
Software module 3 ident : 12620883
Software module 3 ident Alpha Code : AF
Software module 4 ident : 12632084
Software module 4 ident Alpha Code : AC
Software module 5 ident : 12635507
Software module 5 ident Alpha Code : AC
Software module 6 ident : 12635585
Software module 6 ident Alpha Code : AC
Software module 7 ident : N/A
Software module 7 ident Alpha Code : N/A
Software module 8 ident : N/A
Software module 8 ident Alpha Code : N/A
Software module 9 ident : 12625892
Software module 9 ident Alpha Code : AA
Software module A ident : 12620873
Software module A ident Alpha Code : AC
Hardware Key Number : 9999988888
Programming Date : 2025-02-15
Hardware Mileage : N/A

If your using a mdi you can enable logging with the j2534 configurator and get the 1a request that shows this 9999988888.
Since it's right before programming date I wonder if that's the shop code or S/N.
98 request is shop code/SN and 99 request is programming date.

[DodgeZ]

Turned it on to read it again...

System Supplier ID : N/A
System Name or Engine Type : N/A
End Model Part No : 12636004
Supplier ECU hardware number : 12601203
Boot software part number : 12605900
Boot software Alpha Code : NA
Software module 1 ident : 12635863
Software module 1 ident Alpha Code : AB
Software module 2 ident : 12635684
Software module 2 ident Alpha Code : AC
Software module 3 ident : 12620883
Software module 3 ident Alpha Code : AF
Software module 4 ident : 12632084
Software module 4 ident Alpha Code : AC
Software module 5 ident : 12635507
Software module 5 ident Alpha Code : AC
Software module 6 ident : 12635585
Software module 6 ident Alpha Code : AC
Software module 7 ident : N/A
Software module 7 ident Alpha Code : N/A
Software module 8 ident : N/A
Software module 8 ident Alpha Code : N/A
Software module 9 ident : 12625892
Software module 9 ident Alpha Code : AA
Software module A ident : 12620873
Software module A ident Alpha Code : AC
Hardware Key Number : PCSISTN#11
Programming Date : 2010-03-12
Hardware Mileage : N/A

[Gatecrasher]

That's the ID of the last computer to program it. The shop code if it was done by a repair shop, or the ID of the workstation at the assembly plant if it hasn't been programmed since it came off the line.

[kostia111]

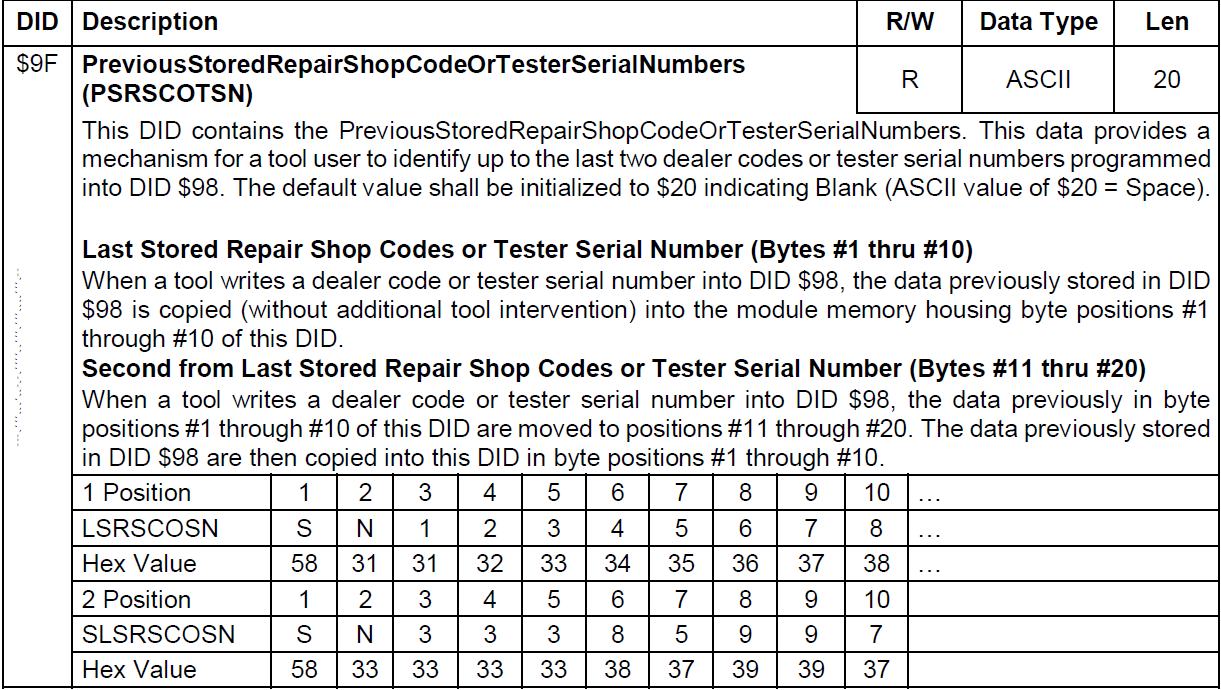

something like this

[antus]

So in that case, we could assume that PCSISTN#11 might stand for something like like PC SI Station 11, or other times it might change to something random if using aftermarket software that may have not set the value and could something random or temporarily in RAM that might end up being persisted. Just my thoughts.

[tpepmeie]

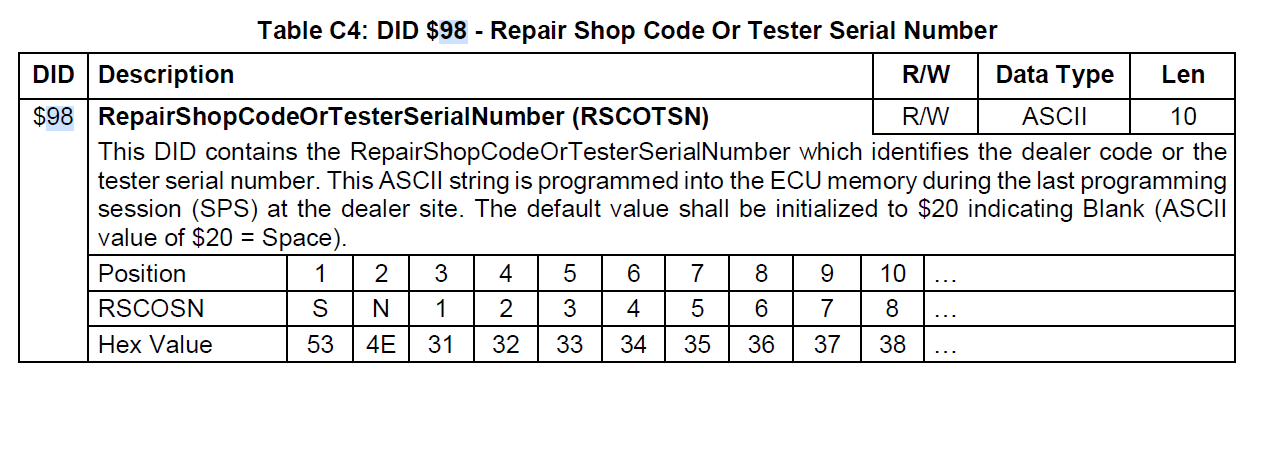

something like this

Kostia, is that from a publicly available document? I haven’t seen it before and would like to read more.

[kostia111]

search the web
GMW 3110
You can write down your name or phone number
3B 98

any standard GM programming procedure
includes programming of DID 98 and 99
also the block usually stores the identifier of the two previous
programmings
