Starting VX V6 Ecotec

[Pikey]

Hi guys, I have no idea what I am doing here and have searched, but I am not sure what to search for.
Basically I have taken a VX V6 ecotec and wiring loom including ECM and fitted this to my holden rodeo which was a 3.2 V6.
I have had the VATS removed from the ECM and now have the three plugs that come from the engine loom and connect to the old commodore loom, but I have no idea which of the pins in these 3 plugs would need to be connected in the rodeo to allow it to start. I can use the original starter wires and this will turn it over when I turn the key, but without at least some of the wires in these 3 plugs connected it is not going to start.

Can anyone help here or is this the wrong forum to be asking this sort of question?
Clutching at straws now...

[kojab]

What is the Service number displayed on the VX V6 ecotec ECM/PCM ?

[Dylan]

You are half way there. VATS removed yes. Those 3 plugs that normally connect to the commodore are where you will power up the ECU and injectors etc. Also fuel pump and thermo fan control will be there to. There's wiring diagrams on here for that.

But no info for the rodeo side unfortunately.

[Pikey]

Service Number on the ECM is: 09356445

[Pikey]

Ok, well I think I have worked out the colours of the wiring, but still doesn't appear to match most of the wiring diagrams on the forum, but it is all looking a bit blurred now, so might try again tomorrow.
I have hit a show stopper, I have everything in and complete and just have no idea which wires I need to connect.

Might be time to see if I can find an auto sparky that can work this out, what a nightmare, got all the way to the finishing line with my Rodeo v6 Ecotec conversion and fell flat on my face at the finish line.

Maybe tomorrow will bring more success

[Dylan]

I've done a couple Ecotecs. If you get stuck message me.

[kojab]

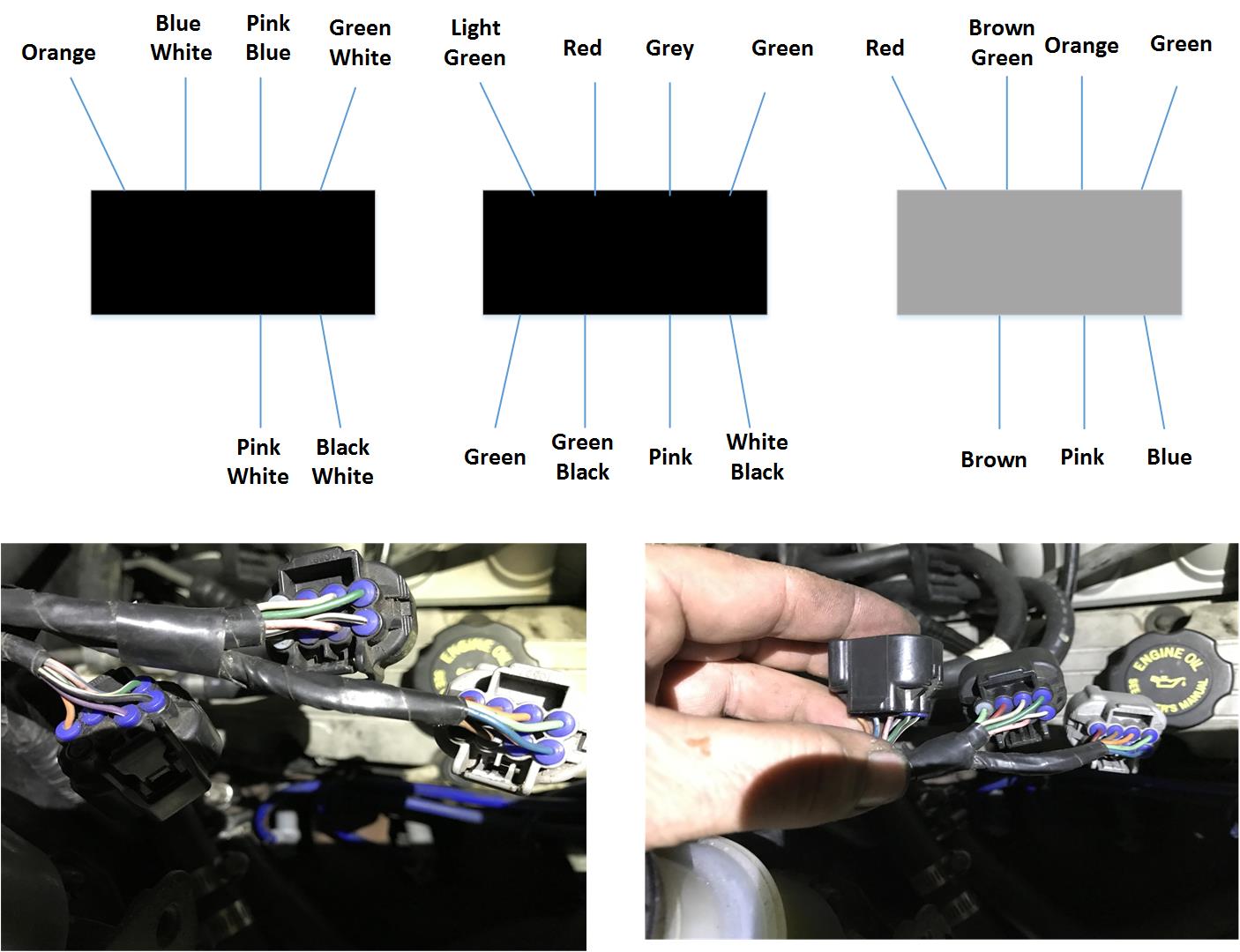

If you look closely at the back of each plug you will find numbers 1 to 8. Next add these number to your sketch above.

Take the LH Black plug shown in your sketch above.

Pin 1 no connection
Pin 2 no connection
Pin 3 Pink/white? Purple/white
Pin 4 Black/white
Pin 5 Orang
Pin 6 Blue/White Fan relay
Pin 7 Pink/blue 12V+ supply to transmission and cooling fans
Pin 8 Green/White To fuel pump relay

Now take the Centre Black plug shown in your sketch above.

Pin 1 Green Air Cond compressor clutch
Pin 2 Green/Black Air Cond compressor relay
Pin 3 Pink
Pin 4 White/Black Neutral start circuit 1434 (VT)
Pin 5 Light Green 12V+ DFI
Pin 6 Red 12V+ Supply for injectors (Permanent 12 +)
Pin 7 Grey Neutral/Start circuit 434 (VT)
Pin 8 Green Ciruit 129 (VT)

Now take the gray plug shown in your sketch above.

Pin 1 no connection
Pin 2 Brown Tacho signal out
Pin 3 Pink To 12+ Ignition
Pin 4 Blue Power / Economy switch
Pin 5 Red/Black ALDL data OUT
Pin 6 Brown/Green? Brown/blue
Pin 7 Orange To permanent 12 +
Pin 8 Green

[tobydog]

Hi guys I know it's a very old post but I'm doing the same project different ute I'm at the same stage as pikey was up to connecting the three plugs above from what I can gather from the post and other post
Connector 1
Pin 7 pink blue 12+ transmission
Connector 2
Pin 5 light green 12+ dfi
Pin 6 red 12+ injectors
Connector 3
Pin 3 pink. 12+ ignition
Pin 7 orange. 12+

Do I hook these all up to 12+

[Rhysk94]

All go to switched 12v apart from pin 7 orange
