Re: Generic donor TPS?

Post by antus »

VL400 wrote:Might need to have a play with "TPS - TPS Full travel - Worst case minimum voltage". Go WOT at check the TPS voltage in TP, just make the worst case voltage a tad lower than that.
This was needed, as was a wiring change - we didnt have it quite right. But its working well now! (Swapped black and blue around) :)

Code: Select all

Nissan          Delco
------          -----
Green/Black --> Grey
Green/Red   --> Blue
Green       --> Black
You do not have the required permissions to view the files attached to this post.
Have you read the FAQ? For lots of information and links to significant threads see here: http://pcmhacking.net/forums/viewtopic.php?f=7&t=1396
Top
User avatar
muttley383
Posts: 83
Joined: Mon Aug 24, 2009 12:21 am
cars: VR 383 stroker

Re: Generic donor TPS?

Post by muttley383 »

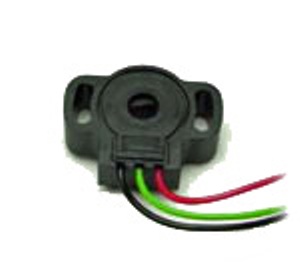

You can use a generic glorified potentiometer like in the attached image.
Used to be able to purchase them from RS components or Farnell(Element?)
You do not have the required permissions to view the files attached to this post.
Top
User avatar
Holden202T
Posts: 10435
Joined: Sat Feb 28, 2009 11:05 am
Location: Tenambit, NSW

Re: Generic donor TPS?

Post by Holden202T »

that looks the same as the apparently falcon TPS i saw on a walkinshaw manifold i tuned.
Top
User avatar
muttley383
Posts: 83
Joined: Mon Aug 24, 2009 12:21 am
cars: VR 383 stroker

Re: Generic donor TPS?

Post by muttley383 »

I just had a look on ebay and you can get something very similar to what I posted above from the USA for about $20.00
