netres help V6 -> TBI (inj every ign pulse)

[Jay]

Hi,
I need to modify a V6 (or such) memcal to run as TBI so that I can capture every igntion pulse as injection events from the FMD instead of the usual 3/1. I've only been able to find info going the other direction when folks to TBI -> PFI conversions.

Regards
Jay

[Jayme]

yep, I did the same ting for my 2cyl motorbike, took a v6 memcal, removed the netres and changed it to TBI so it injects fuel every pulse.

https://pcmhacking.net/forums/viewtopi ... t=20#p3067

there is an image inthat post, maybe wait a little while till it shows up, looks like holden202's server is down right now.

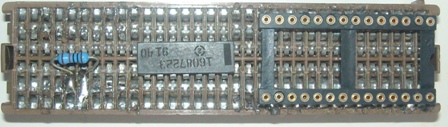

edit: here is a pic of my converted memcal - that resistor is 10k


[Jay]

Hi,
Thank you. That did the trick perfect!

[MOPAR]

Could anyone tell me if this is the netres for a four banger or a TBI setup?

Pin 3 to 13 is 15k
Pin 12 to 13 is 7.5k

[Holden202T]

may well be 4 cylinder, if someone can confirm i'll add it to my pic



EDIT: added 4 cylinder config

[VL400]

Could anyone tell me if this is the netres for a four banger or a TBI setup?

Pin 3 to 13 is 15k
Pin 12 to 13 is 7.5k

Will be for a 4cyl

[kojab]

I wonder if three cylinders is possible? My neighbour has a turbo charged Daihatsu thats greatly in need of tune.

[VL400]

Not with the current software but the new PIS software should be able to support it.
