or you can buy the PIC pre-programmed here : http://www.siliconchip.com.au/Shop/9/962

[vlad01]

vlad is like dropping code onto a EPROM?

As far as I remember no, it was a serial type of chip not parallel like most EPROMs. I was thinking if it would work on the 4qgx but probably not.

I have a programmer but I haven't used it in years, almost 10 to be exact.

[psyolent]

yeah ; was wondering whether my little 4qgx would do it ....

[antus]

The gq4x does support many pic and atmels. Doesnt matter if its serial or parallel.

http://www.mcumall.com/comersus/store/m ... ortICs.asp does say PIC12F675 is supported. Might just need to make up an adaptor to plug it in.

[psyolent]

awwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww yisssssssssssssssssssssssssssssssssssssssss

[psyolent]

very easy to make too - a simple piggyback chip adapter would work here



from http://webs.uolsinectis.com.ar/nancy/pic/icsp_en.html

[antus]

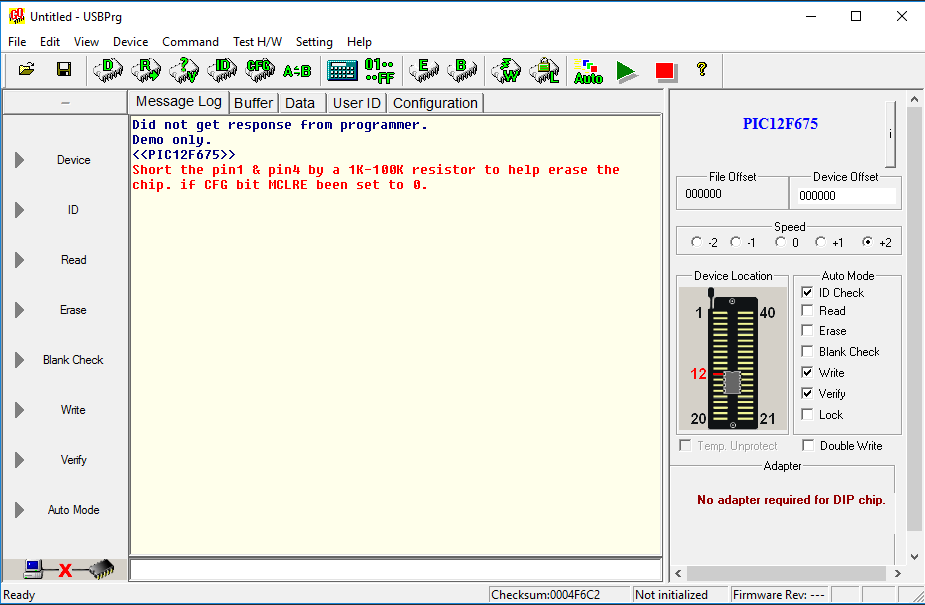

The GQ software tells me its actually 1:1 with this offset, and a resistor needed only if a particular flag is set for the erase. The adaptor would only be needed if its surface mount.

pic12F675 GQ4X.png (30.57 KiB) Viewed 5476 times

Edit: Ahh I see your planning on programming it on the pcb via ICSP. Fair enough then you'll need both diagrams.

[psyolent]

hey........can be done off PCB and dropping it in the gq4x like you've shown antus.....no adapter no ICSP
