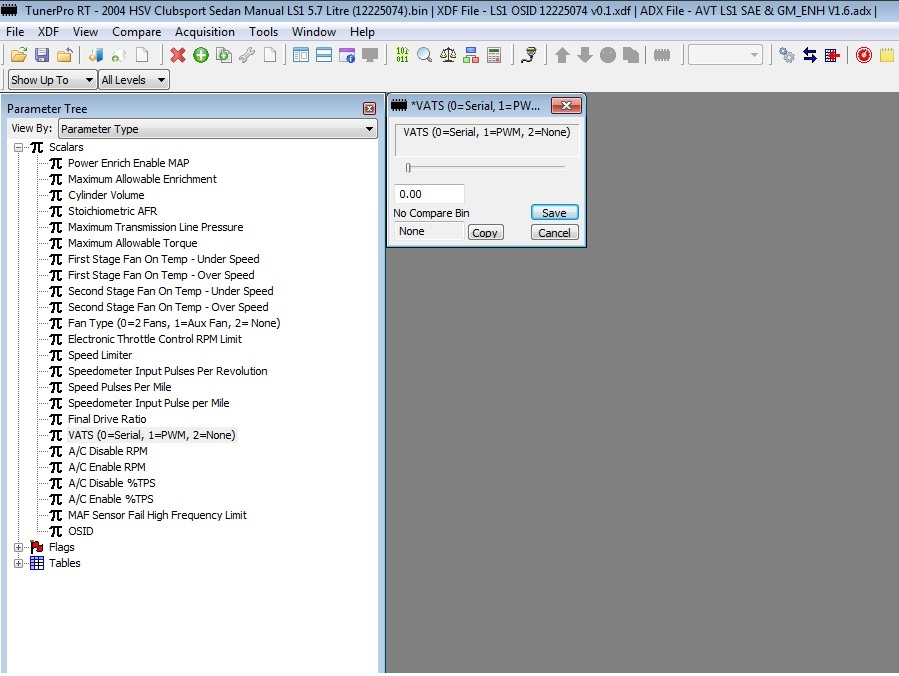

I was having a look at Jaymes LS1 bin/xdf in Tunerpro and looking at the scalars- VATS and wanted to know what
the 0=serial and 1=PWM mean?
LS1 VATS info
-
monaro308
- Posts: 343
- Joined: Sat Mar 21, 2009 4:02 am
- cars: HJ GTS Monaro Coupe
CV8 V2 S3
VE SSV
LS1 VATS info
You do not have the required permissions to view the files attached to this post.
-
VL400
- Posts: 4991
- Joined: Sun Mar 01, 2009 4:54 am
- cars: VL Calais and Toyota Landcruiser. Plus some toys :)
- Location: Perth, WA
Re: LS1 VATS info
Early US models use a PWM signal for VATS - a square wave signal with varying pulse widths. This is what those super cheap eBay VATS removal modules bypass.
We use a serial data stream that is coded/linked to other modules (there is a PIM for ALDL to OBDII translation).
We use a serial data stream that is coded/linked to other modules (there is a PIM for ALDL to OBDII translation).
-
monaro308
- Posts: 343
- Joined: Sat Mar 21, 2009 4:02 am
- cars: HJ GTS Monaro Coupe
CV8 V2 S3
VE SSV
Re: LS1 VATS info
Ahhhh was that similar to the earlier "special" box with the resistor pack to bypass the key reader/slip ring?
Thanks VL,that explains it clearly.
Cheers
Thanks VL,that explains it clearly.
Cheers
-
shakas82
- Posts: 3
- Joined: Tue Jan 31, 2017 2:20 am
- cars: GMC SIERRA 2006 ... 6.2 LS TH350 TRANY
Re: LS1 VATS info
Hi.. where i can find that xdf for ls1... ? Thanks
