New custom ecotec 808 loom

[vlad01]

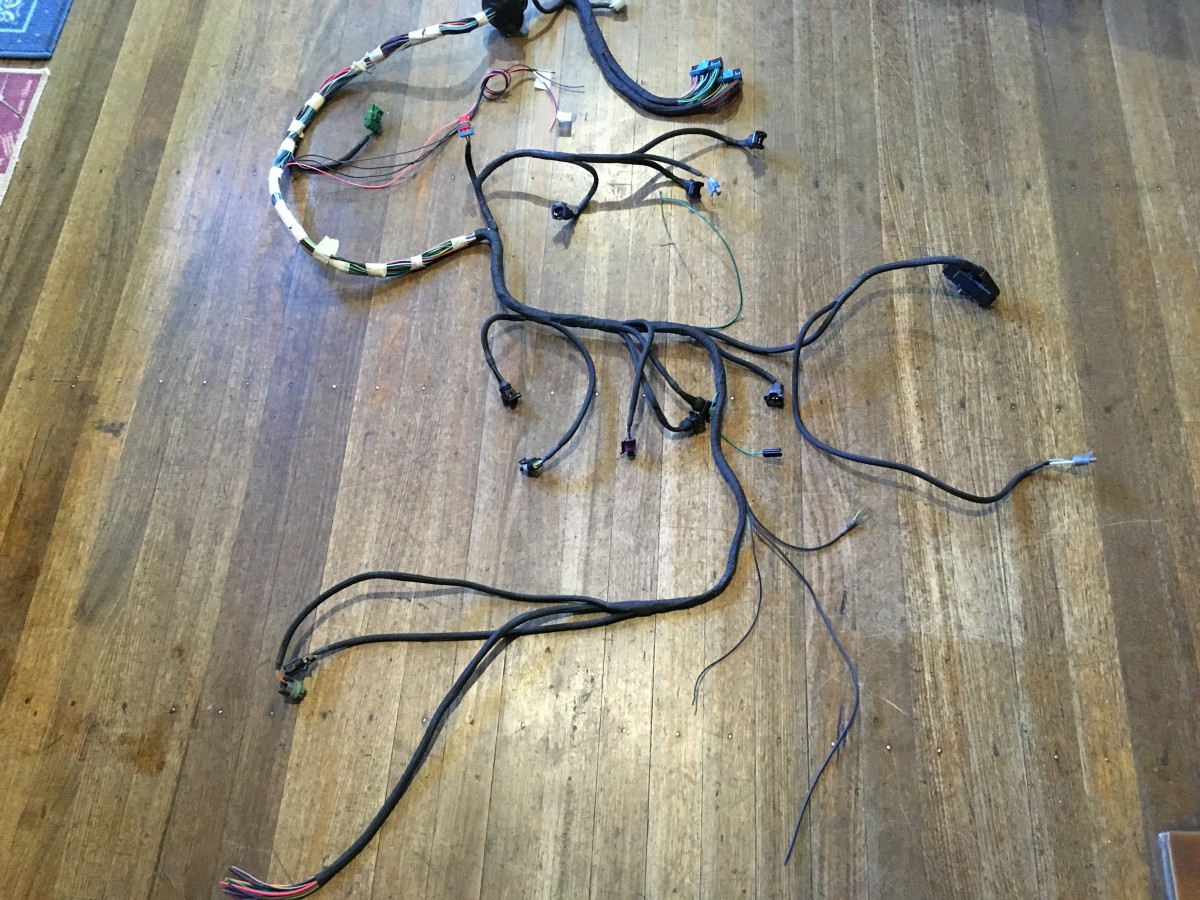

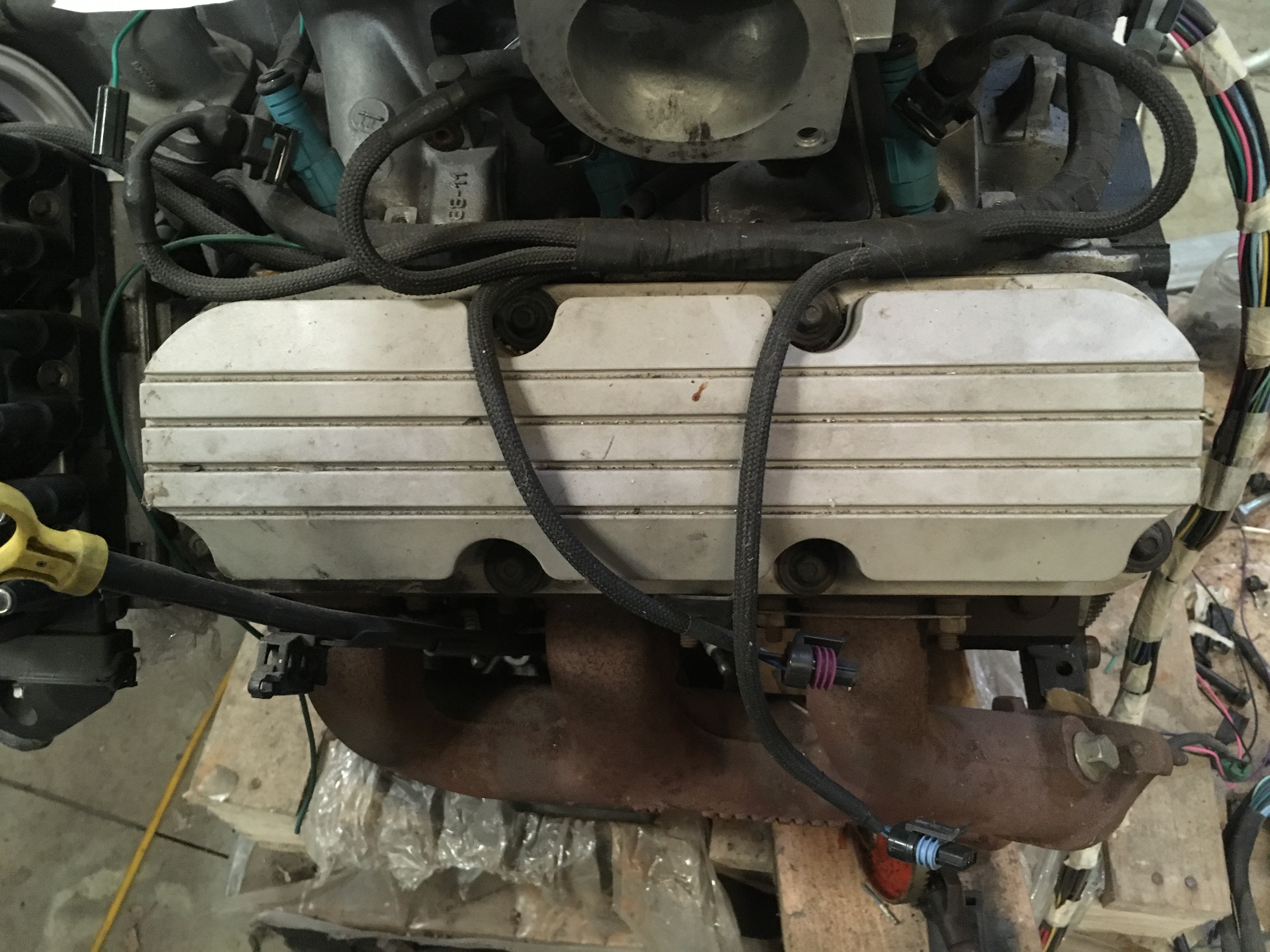

For sale a near completed custom 808 conversion loom for ecotec to suit VN-VR or others with some additional work.

Has all new connectors and wires on engine side.

WB under dash input connector for convenience

Purge solenoid for ecotec connected to a flex output.

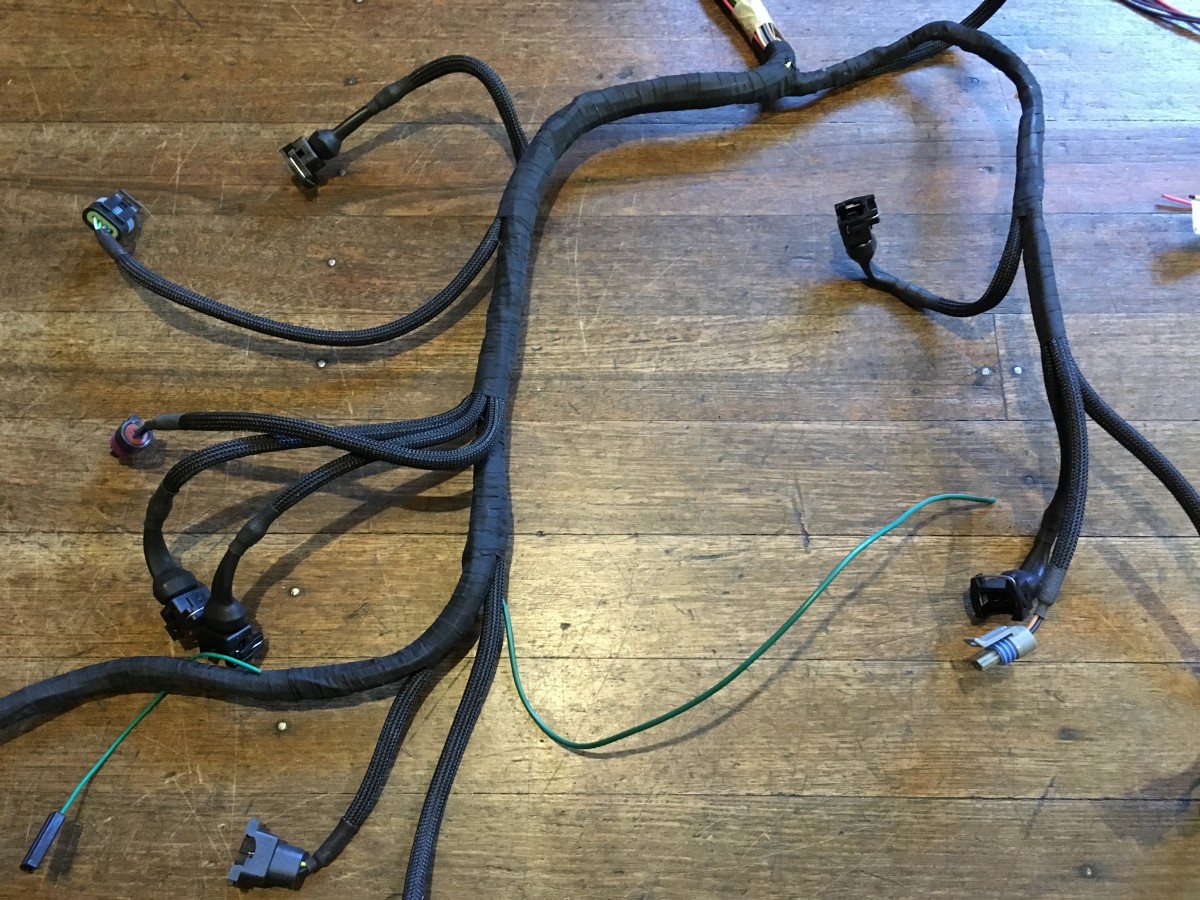

Fire proof fiberglass braided protection and heat proof cloth based loom tape.

4 wire O2 support and wires already run but need installation for final length and position as goes with the untaped part, 2 ground wires and engine bay to loom plugs. All these need to be made according to routing in the engine bay.


Well over $600 spent on connectors, terminals, colour coded wires, protection, tape etc... and weeks of careful construction.

Had it for 4 years doing nothing and probably will stay like that since I no longer do any ecotec stuff for my personal cars.


Asking $500 plus postage. Can chuck in the plenum with MAT installed to suit and heads up on where to get plugs to finish it off, provide some terminals as well.







[VSRaptor]

Where did you position the mat sensor on the ecotec plenum?

[vlad01]

in the plenum in line with the TB at the far side. So it gets samples of the direct air as it tumbles around the top.

[Holden202T]


[VSRaptor]

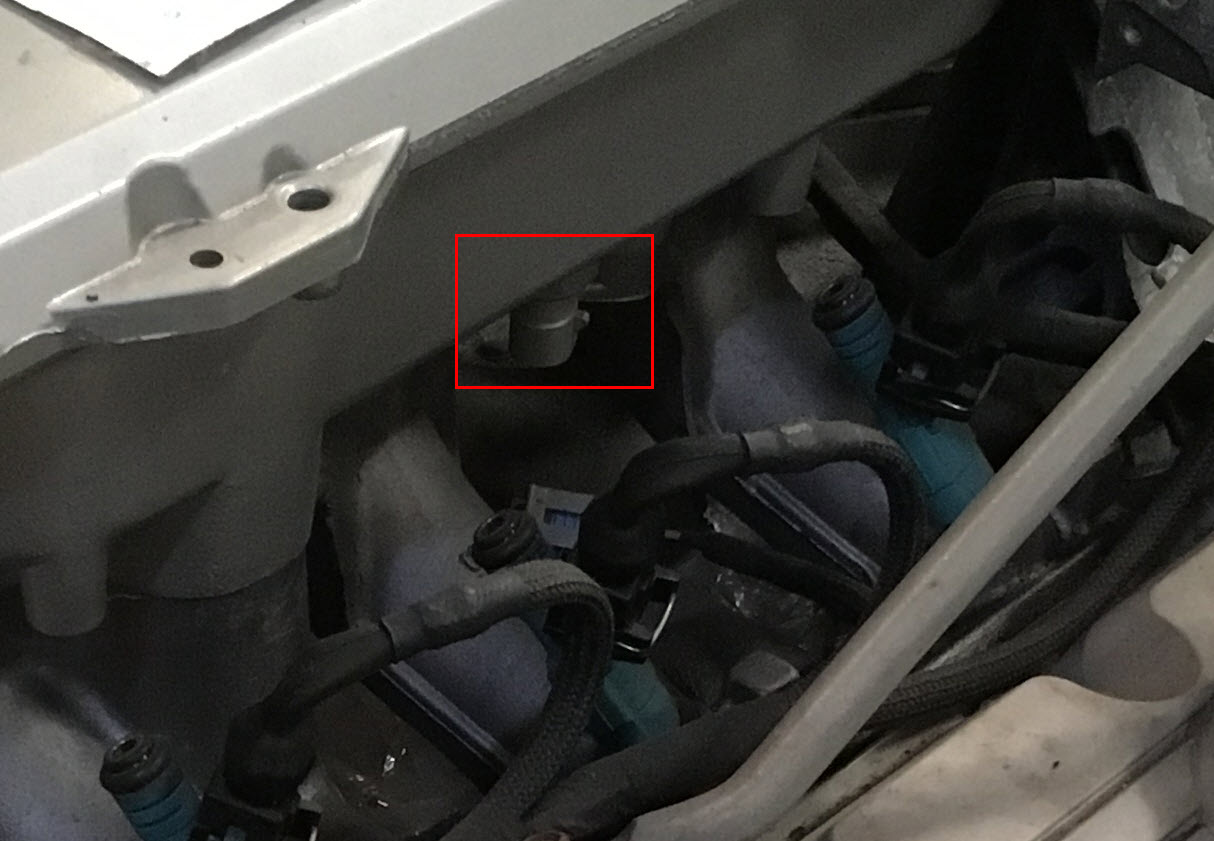

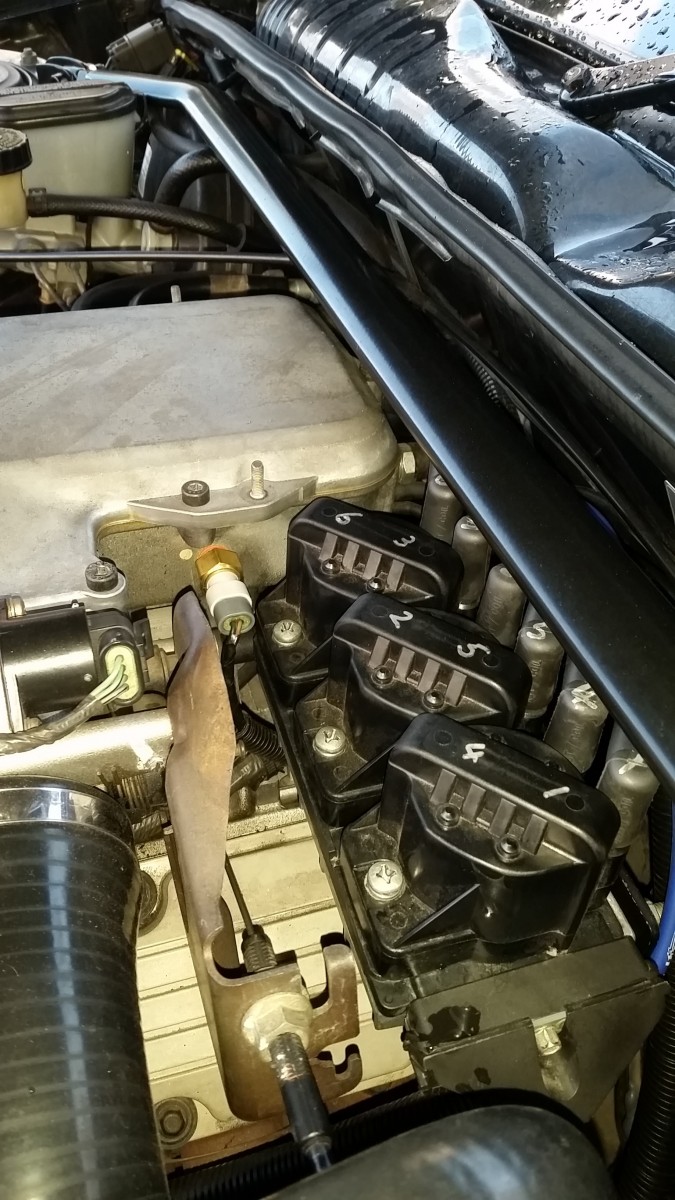

I have seen some that had a bung welded into the lower manifold like the 304 V8. Mine I drilled and tap next to the throttle body on the car just removing the plenum cover, coil pack and throttle bracket.
