98 vt srs light

[delcowizzid]

Last time I looked at the wiring diagram, I think it uses Pin 1 on the ALDL connector (Also used for BCM, Instruments and ABS), EfiLive doesn't use this pin as the engine ECU uses a different (PIN 9 I think on a VT anyway). The Module for SRS this that stores the code is the one under the centre console, it is known as an SDM module in the Holden manuals.

bummer not to easy then i just presumed it would be up the aldl stream connecting the BCM PCM etc wonder what sort of comms protocol it is

[Holden202T]

but if you get bcm commands through the aldl port would that not mean that you could send the right command through the aldl port and the bcm would pick it up rather than the pcm ?

[monaro308]

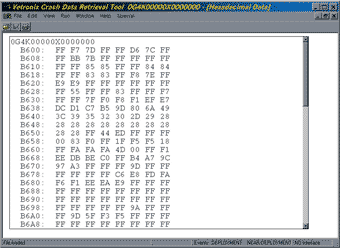

This is the data retrieval out of a GM SDM module. Courtesy of http://www.airbagcrash.com

[GONZO]

The first byte of the standard ALDL is the device ID. You need to be able to sniff the line and find what the ECU and BCM have as device ID's. Tipping the ECU will be $F4.

Perhaps a mode 10 with the correct device ID might do the trick.

[VL400]

When sniffing the data, the device ID of the VR BCM is $BD and the VS BCM is $F1.

[Doctor Bob]

the BCm has no bearing on SRS DTC's
a script for efilive could be written i spose...., ill post up some info

[delcowizzid]

cheers rob hows things you keeping out of trouble

[djbrooksy]

thanks guys for all the input the light is still on have not had the money to get it reset yet .

so bob if you could come up with something that would be great.

cheers
mick

[antus]

Try sending this ALDL packet down the bus:

F2 56 0A AE

AFAIK should work for at least VS and VT

[djbrooksy]

thanks will try
only problem is im a complete noob and have no clue how
