VE Table Help

[vc81]

they represent the edges of each guage box. in percent.
eg: top 0 left 0 bottom 100 right 50 would make a guage that took up a the whole height but only half the width of the dash window.

notice the left edge of the next box = the right edge of the previous box?

Yep makes sense now thanks Jayme.

[vc81]

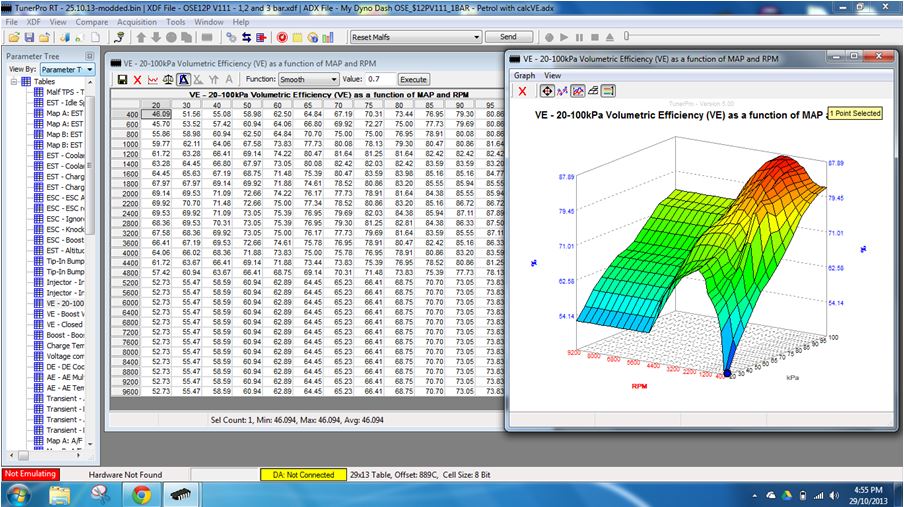

Sorry for all the questions Holden202T but I just downloaded the bin you modded for me yesterday and loaded it into TP to have a look at the VE graph and it does not look like the one you posted? Any ideas why this would be?

[Holden202T]

lol thats because i stuffed up and uploaded the wrong bin file

try this one!

25.10.13-modded.bin

(32 KiB) Downloaded 357 times

[vc81]

Lol no worries mate. I thought I had something set up wrong. I'll give this one a go tomorrow.
Thanks,
vc81

[vc81]

What's the best way to tell if my ve table is ok? Is it by playing back a log and watching the wideband & target AFR on monitor view to see if they are the same?

[delcowizzid]

pretty much.setup commanded and actual wideband on the same monitor window

[Holden202T]

as delcowizzid said, use the monitors to plot target and wideband against each other and see how much it changes at each load point. in the below example, bottom monitor, you can see the wideband (green) going rich as revs increase compared to target (red).

gemini 8psi boost run WSID.jpg (187.22 KiB) Viewed 4129 times

then you plot it against map and rpm on a historgram and get the info on how to change .... also you can use the ve calc method, which is the same result just most of the work done for you in the calc and just requires punching the numbers in and smoothing!!

[delcowizzid]

is that fuel pressure correct holden 202 looks like the pumps struggling

[Holden202T]

that was the first signs of needing twin pumps

[vc81]

Ok thanks fellas
