VXDiag VCX Nano

[In-Tech]

Must of had your beer goggles on ...

I've been known to resemble that remark

[jxx]

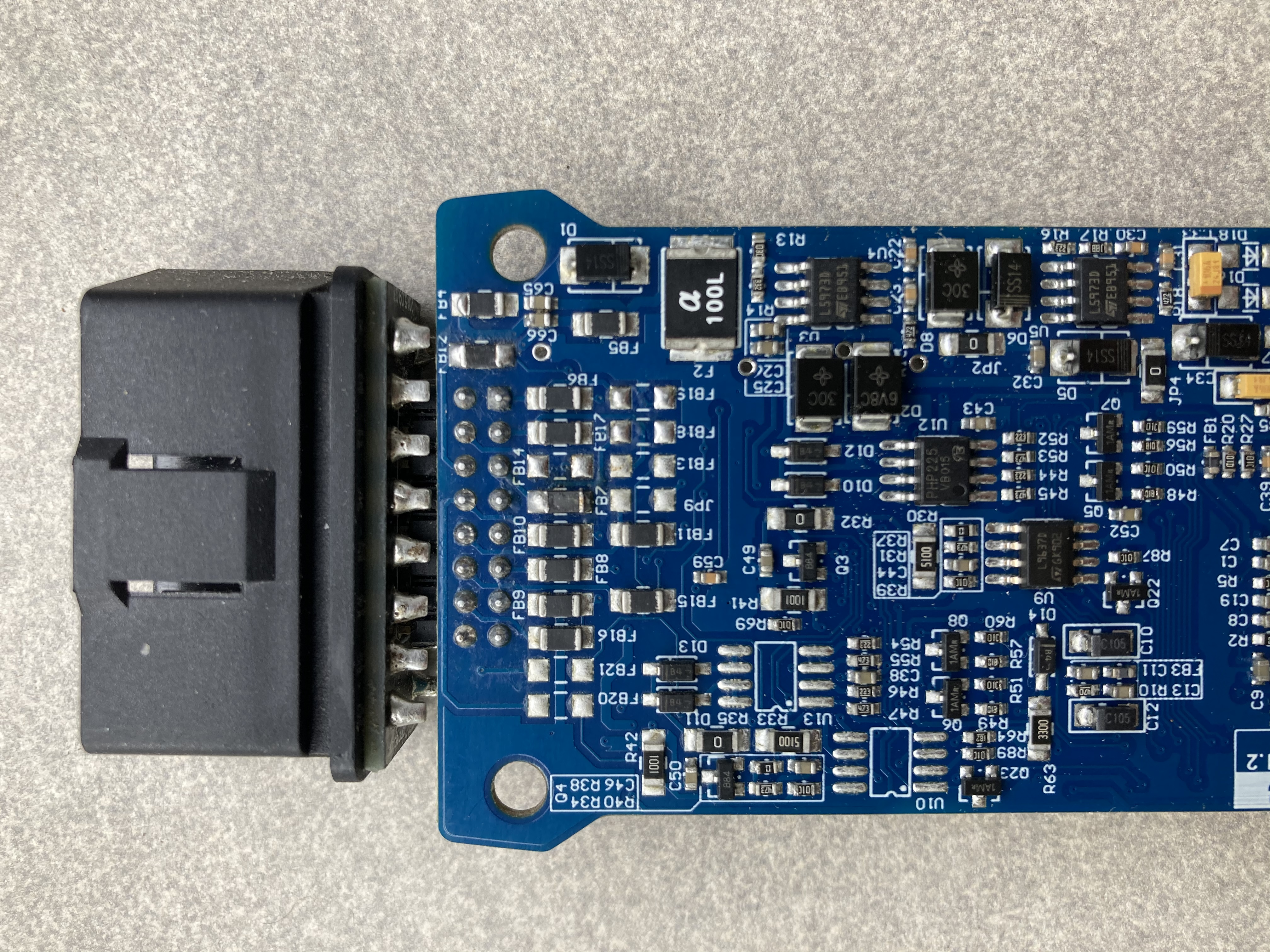

Gampy,I do t know if these are the photos you want but I have a couple of mine.

I can't tell from the pics, but does pin 9 goto unpopulated FB20 or FB21 thru a via and tracks?

[vs ss]

I can't tell from the pics, but does pin 9 goto unpopulated FB20 or FB21 thru a via and tracks?[/quote]

No, it appears to have the pad for pin 9 to be soldered onto but has no tracks coming off it. On the opposite side of the board it only has one track off of pin 5 that goes through the board and terminates on the track you see in front of fb21.
I put another pic up that might help a bit better.

[The1]

i probed pin9 it doesn't link to anything. The ST chip anyway doesn't seem to support uart.

[Tazzi]

Yeah, I double checked again now, and it doesnt run to any nearby pad or component (Verifying incase it was running on an internal layer).

When I spoke to the devs a while ago, they said they didnt have any vehicles to test on which had GM UART couldn't test. I was hoping that meant they at least had the hardware there but appears not.

[The1]

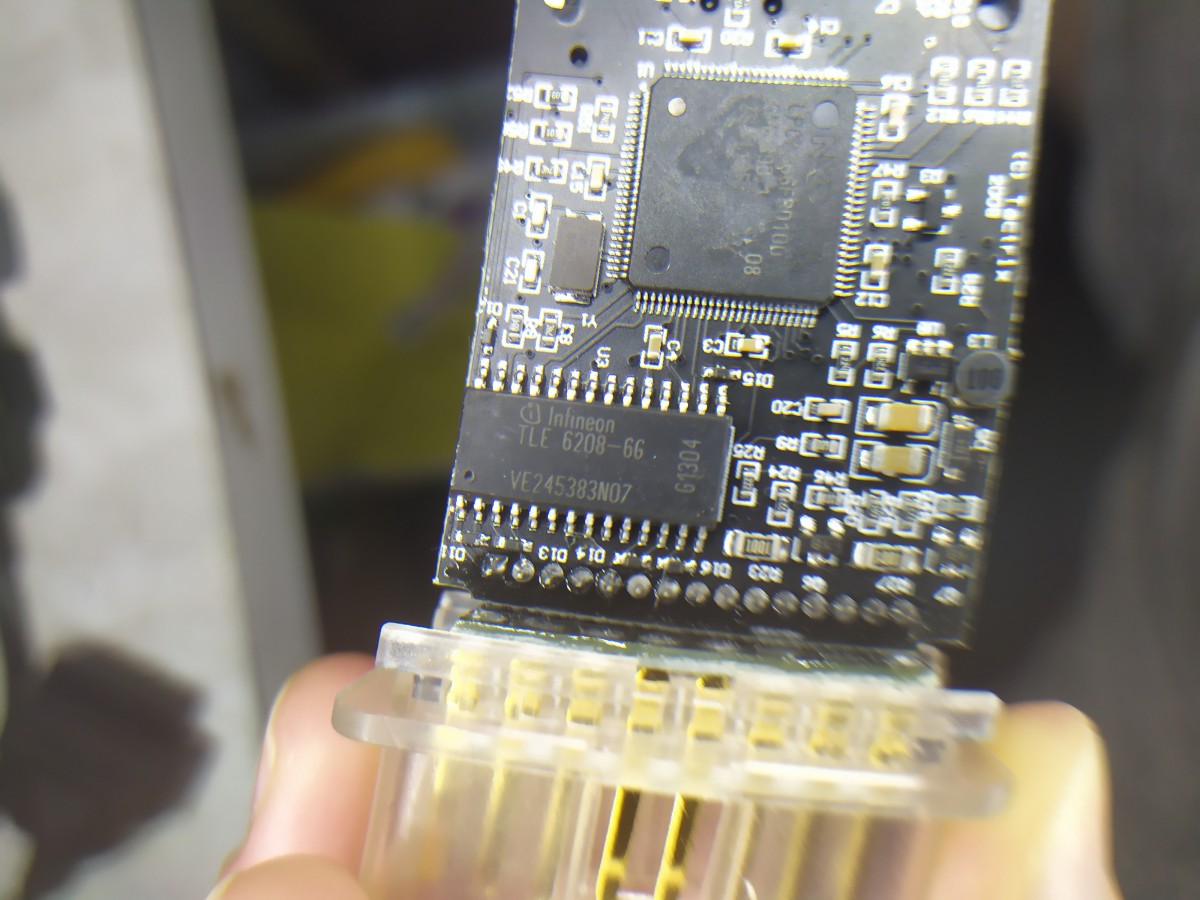

Not sure if this is worth bothering with, I pulled my $25 aliexpress tactrix cable apart, pin 9 is hooked upto the chip pin 3rd down from top on the left. Infineon TLE6208 main IC is NXP LPC2366FBD100 which has 4 uarts.

[MudDuck514]

Hi all;

Anyone have a source for known good VCX Nanos?

I'm wanting to get one for working on my car and van.

Mike.

[Gampy]

The1 posted this earlier in this thread ... https://pcmhacking.net/forums/viewtopic.php?f=3&t=7161&start=20#p106527

[MudDuck514]

Thanks Gampy.

I must have been daydreaming when I saw that post due to the pretty pictures!

Mike

[Gampy]

Thank you, I really needed that laugh!
