Converting 202 to ABS Crank Trigger

[Holden202T]

just for anyones interest i found the following on google searches.

D581 (12558693) Truck Coil
D585 (10457730-Delco, 19005218-Delphi) Truck Coil
D513A (12570616) LS2/LS7 First Design
D514A (12573190) LS2/LS7 Second Design

[delcowizzid]

yeah they are a regular upgrade for rb25dett skylines

[Holden202T]

another thing i'll add in here while im thinking of it ....

MSD3302 - straight boot and crimp lug
MSD3303 - 90 Degree boot and crimp lug
MSD3304 - 45 Degree boot and crimp lug

these are kits of 2 crimps and 2 boots for re-terminating the ends of leads and are the LS1/LS2 coil end.

[EFINOOB]

This is looking AWESOME!

Can i ask what the Ignition module from VL400 is that you speak of?
6 coils would be awesome to see running! is there a possibility of setting the ignition system your talking about on a V8?
You'll have to excuse me, im new around here... lol

[VL400]

Its something that I am still developing, but it will work with 8 coils on a 8cyl too. Its configurable to suit different triggering and can work with hall or reluctor signals. A picture of the unit and some vids running a V6 with 6 LS1 coils here .. https://pcmhacking.net/forums/viewtopi ... =10#p27226 and a vid of it running a V8 for the first time (twin coil and dizzy on a toyota v8) https://pcmhacking.net/forums/viewtopi ... =92#p27207

[Holden202T]

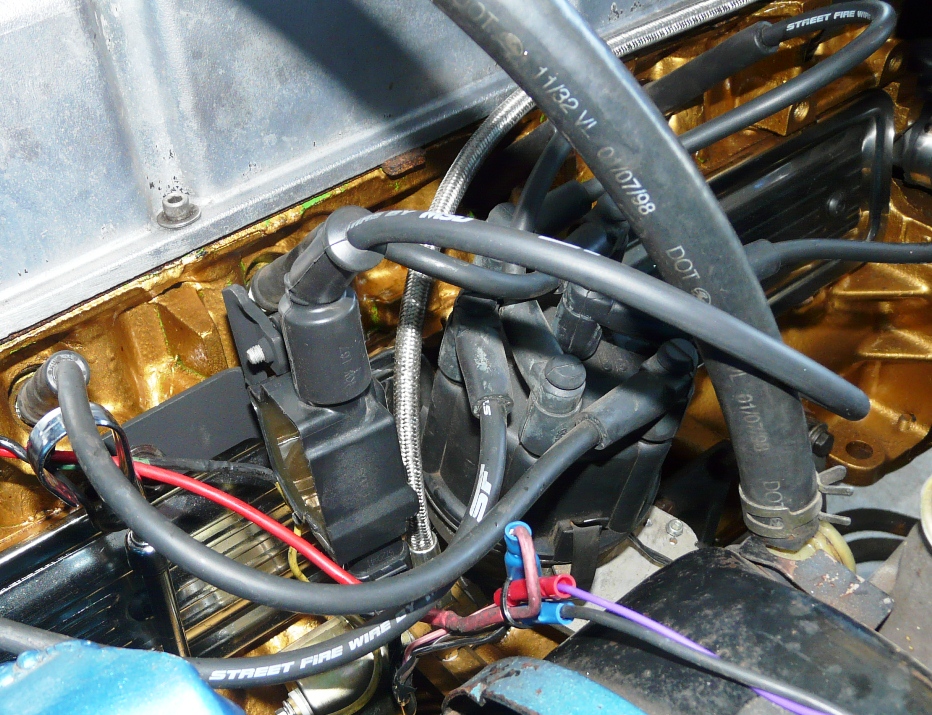

Well in preparation for testing the ignition module/coil and abs sensor crank trigger on the dyno i needed to mount the LS2 coil and get the right end for the lead for it.

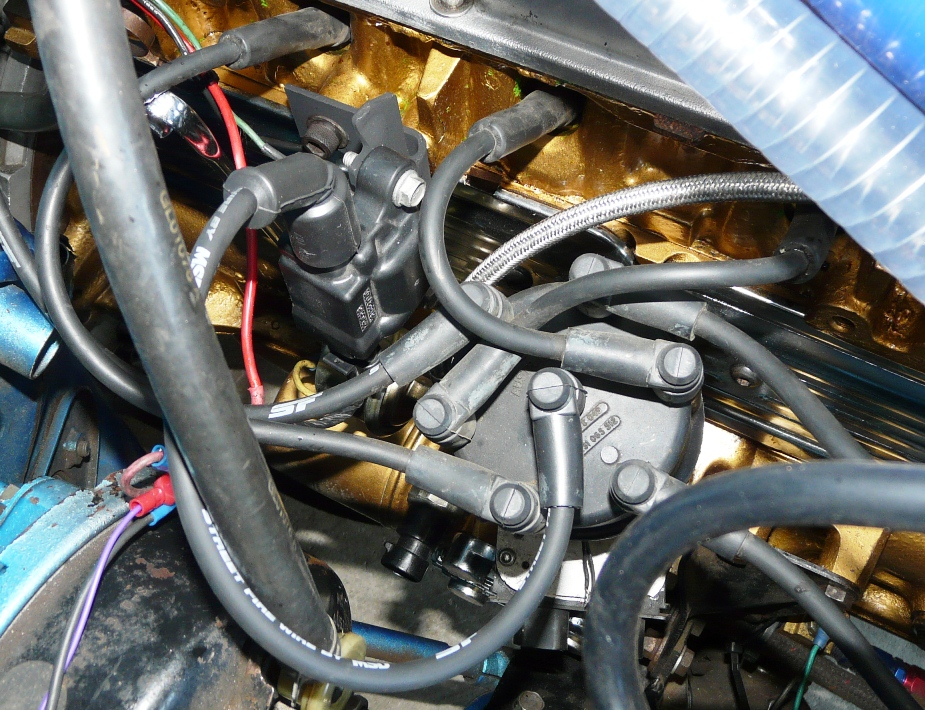

This is using the 45 degree boot and terminal as per above part numbers, and the LS2 coil almost looks like a factory one for a 202

[festy]

Its something that I am still developing, but it will work with 8 coils on a 8cyl too. Its configurable to suit different triggering and can work with hall or reluctor signals. A picture of the unit and some vids running a V6 with 6 LS1 coils here .. https://pcmhacking.net/forums/viewtopi ... =10#p27226 and a vid of it running a V8 for the first time (twin coil and dizzy on a toyota v8) https://pcmhacking.net/forums/viewtopi ... =92#p27207

Hey VL, any plans to support a Bosch style 60-2 tooth crank pulley configuration?
There would be quite a market for that...

[VL400]

Yeah I have plans for supporting missing tooth triggers.

[Holden202T]

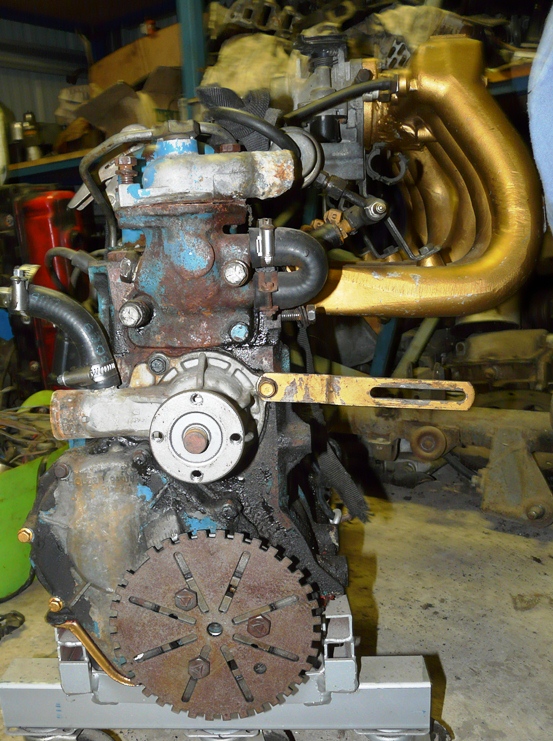

well this is going to be the next phase of the conversion and the thing that is going to allow me to run 6 LSx coils (or v6 coil pack would work too). so finally got around to working out the hole locations and drilling them for this setup.


Now i just need to get the crank trigger sorted (the first one i made will be in the wrong spot for this) then i should be able to test its functionality.

[VX L67 Getrag]

wow thats an interesting way of spelling functionality... sorry just being an idiot!

but where did you get that perfectly manufactured, yet rusty wheel?
