Thread dig, I've been playing around with a pim today and mapped out where & what values are used for all the settings.

Got cocky and blanked the chip to try a write 1 of the files i pulled off... & it fails. Using a willem GQ-4x.

Tried a bunch of different versions of 93C46. chip itself is labelled 93C46W6

[VX L67 Getrag]

Yeah it seems the ponyprog is better than gq4 with eeprom write stuff like this… but also need to have a good quality aligator clip!

[Tre-Cool]

i had a exp2023+ device on my desk that come with some stuff but since i dont have a cd/dvd reader in my computers any more never used it to read software.

bit of googling and got the software, it worked and i now have it flashed to a good source again.. not that it bothered me im about to pick up a 2nd hand unit from fb marketplace. haha

[Ken]

Yeah it seems the ponyprog is better than gq4 with eeprom write stuff like this… but also need to have a good quality aligator clip!

I have 2 Gq4x units, one with firmware version 1.30, the other with 2.20, the one with earlier firmware fails to recognise
or flash without errors more times than the later firmware.
Did a voltage diagnostic test on the earlier one, failed 2 tests, later one didn't.

[Tre-Cool]

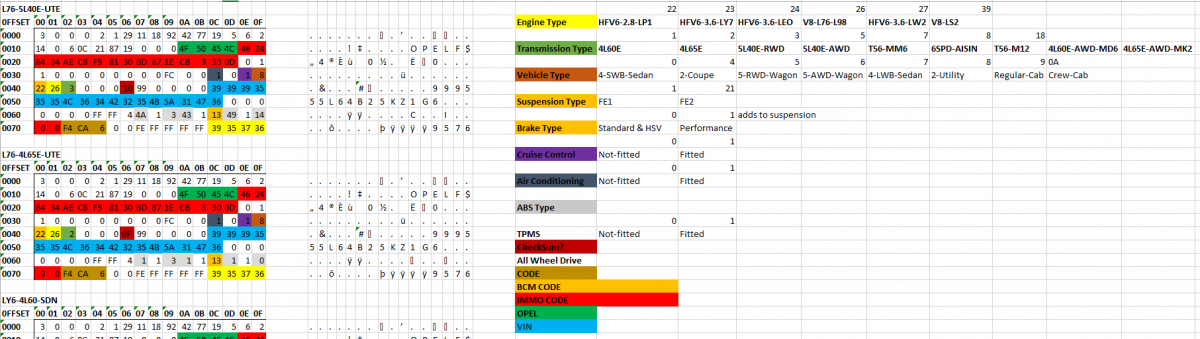

Sneak peak of what i'll finish off & then upload the xl file here again.

I'm hoping that there is a specific value that will enable the reverse relay output on the pim without setting it to a 5l40e.

[Tazzi]

I feel like around that 0x70/71 location, was the number or resets.. I think??? Maybe 75/75?

You'd know straight away after doing a reset.

Theres also a counter for how many incorrect immos entered.

[Tre-Cool]

You might be correct. a few of my reads did have data in there, then it went back to zero.

since this in a vy & im not doing any linking it might have reset when it took me a few goes at recovering the bin.

the willem reads the data bitflipped but the ezp device reads it direct.

[Tre-Cool]

ok, i suspect there is clearly a checksum going on. today instead of changing multiple options i just changed 1 value at a time and read the binary out.
4x05 is the checksum value

See the xlsx file & zip containing read pim data. Anyone got a clue as to working out the checksum?

PIM.xlsx

(39.61 KiB) Downloaded 422 times

PIM-Files.7z

(996 Bytes) Downloaded 368 times

[Holden202T]

Just came across this thread as im playing with a VZ SV6 Auto PIM on the bench, is there any interest if i can get a read from it ?

[The1]

This should be a good read im guessing there all the same apart from the eeprom contents? This ones a WL Statesman
