VS V6 & V8 PCM Wiring Diagram

Wiring diagrams and questions
User avatar
VL400
Posts: 4991
Joined: Sun Mar 01, 2009 4:54 am
cars: VL Calais and Toyota Landcruiser. Plus some toys :)
Location: Perth, WA

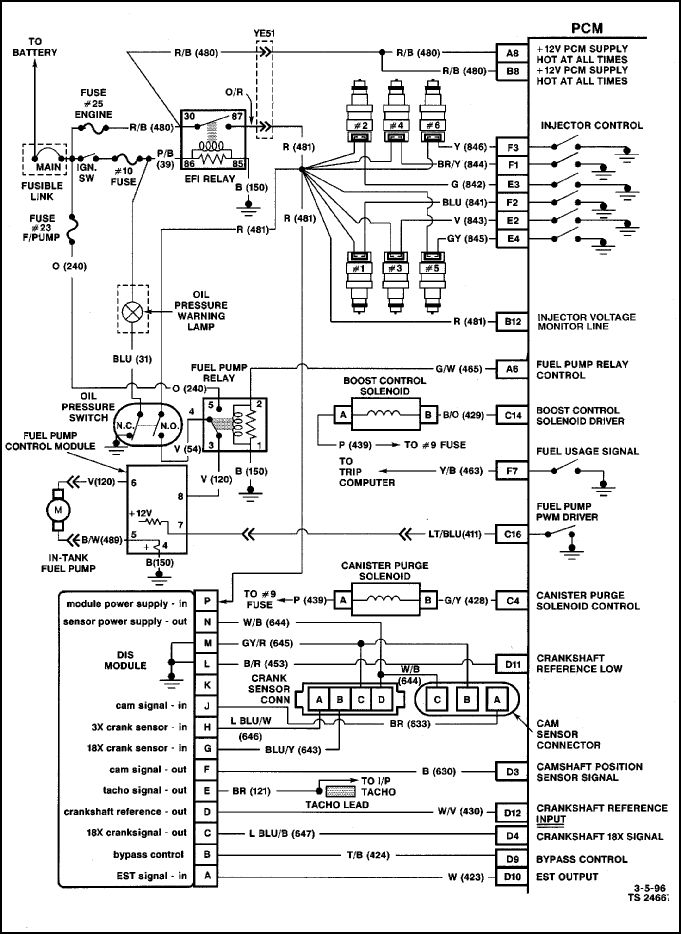

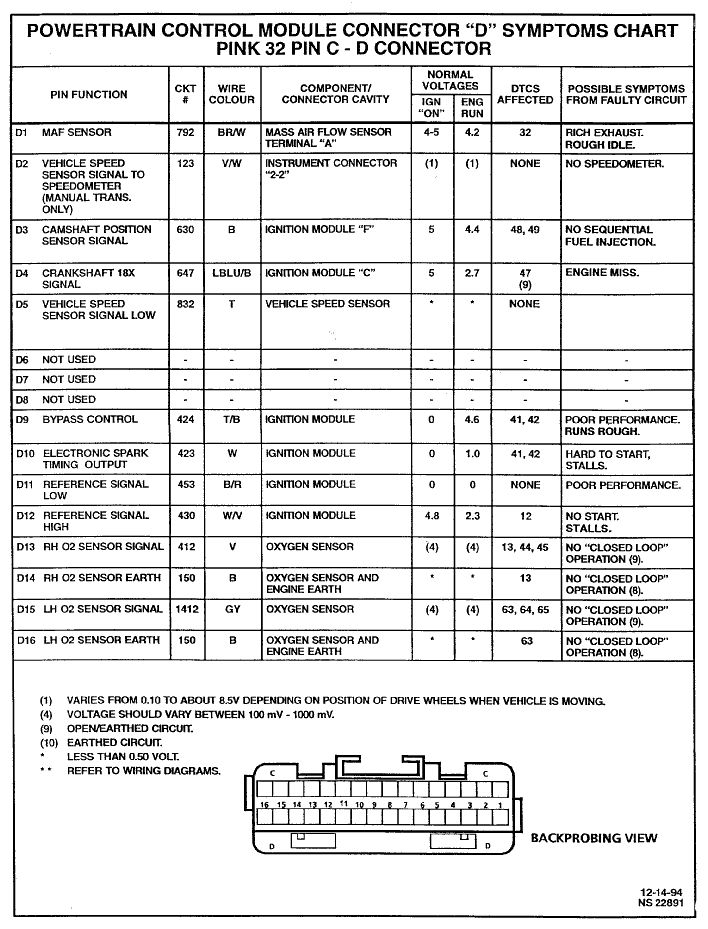

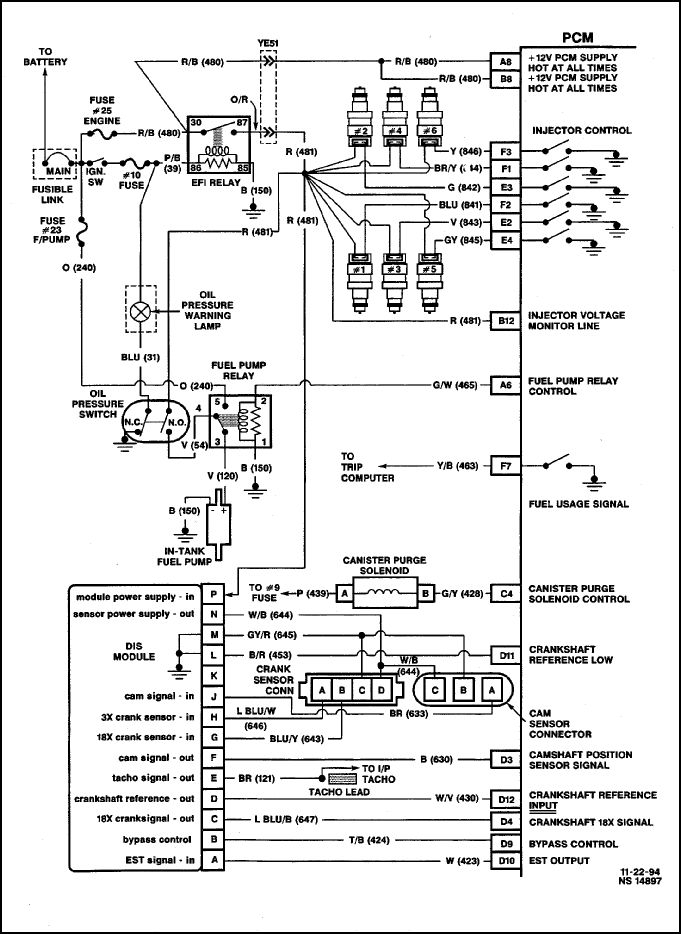

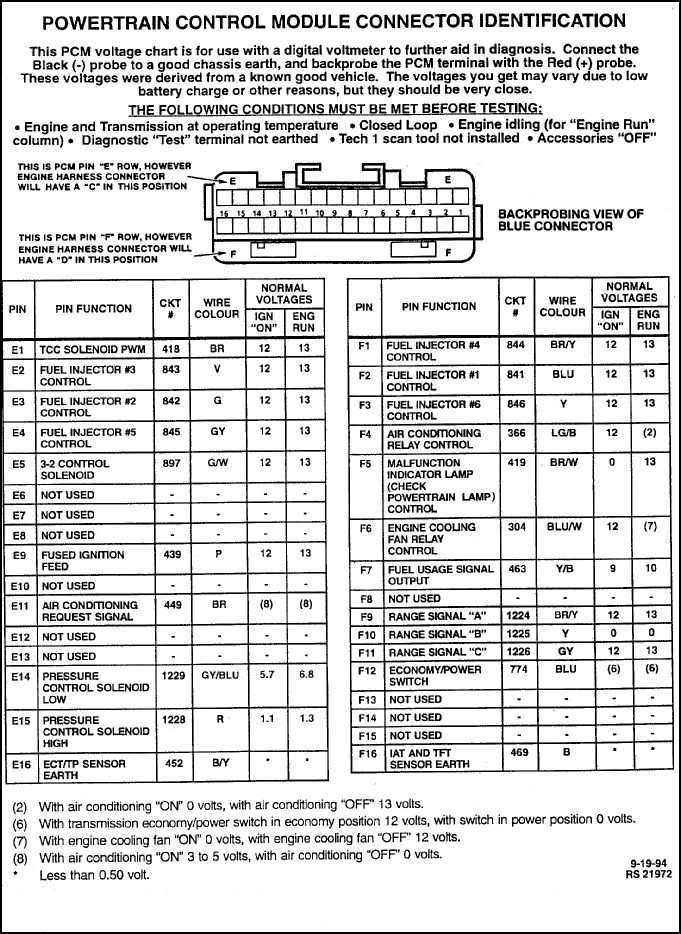

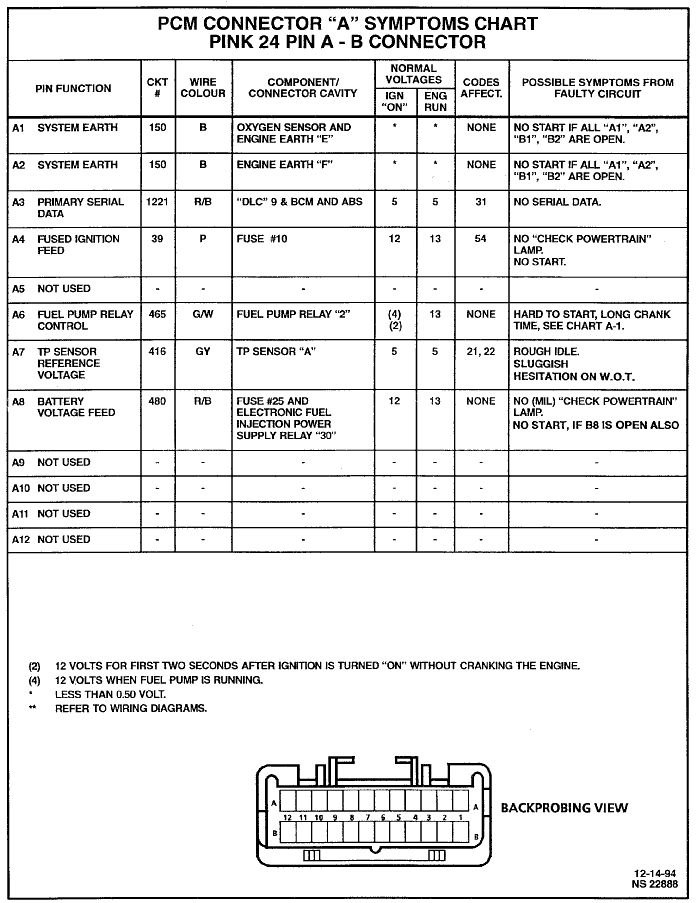

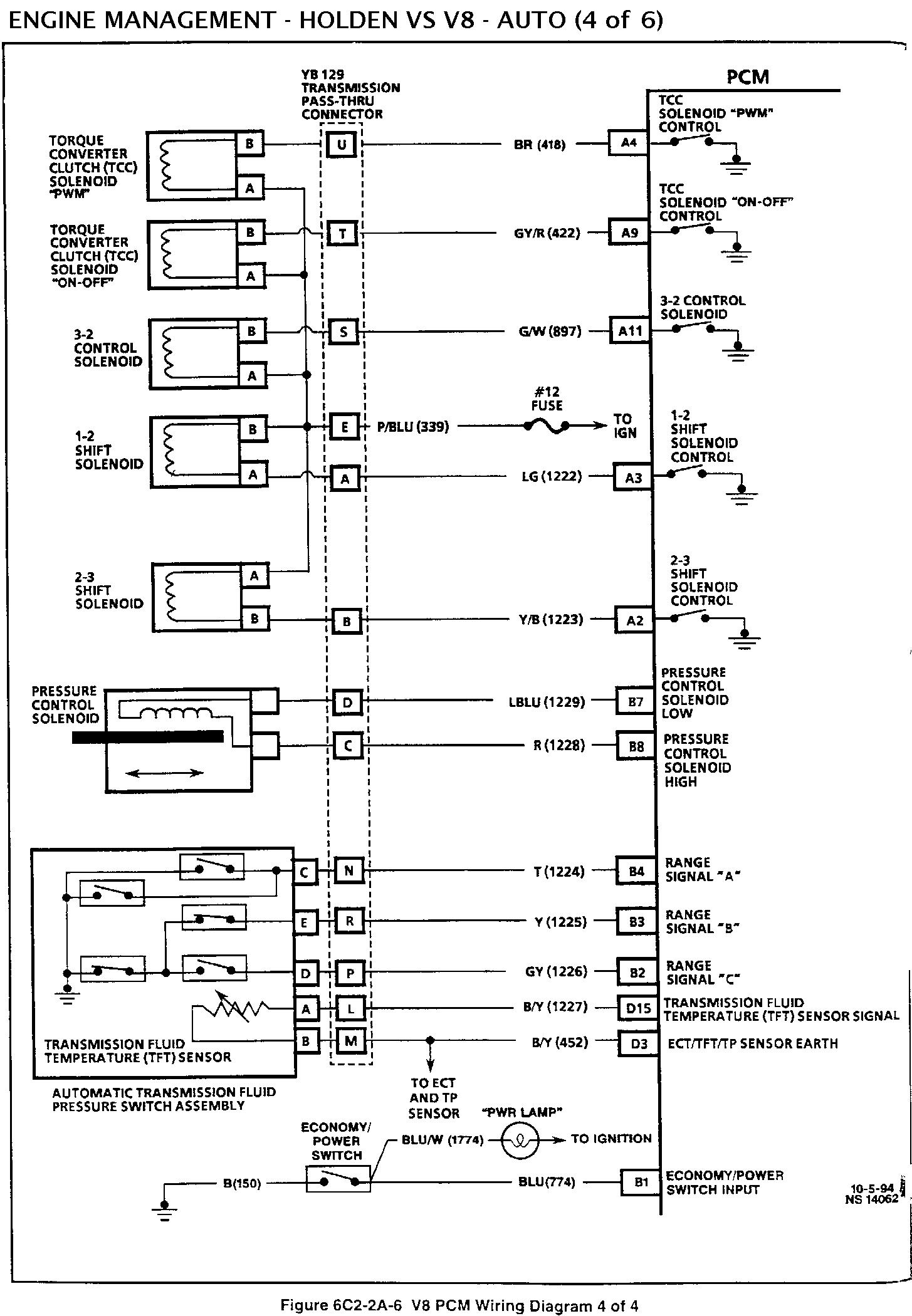

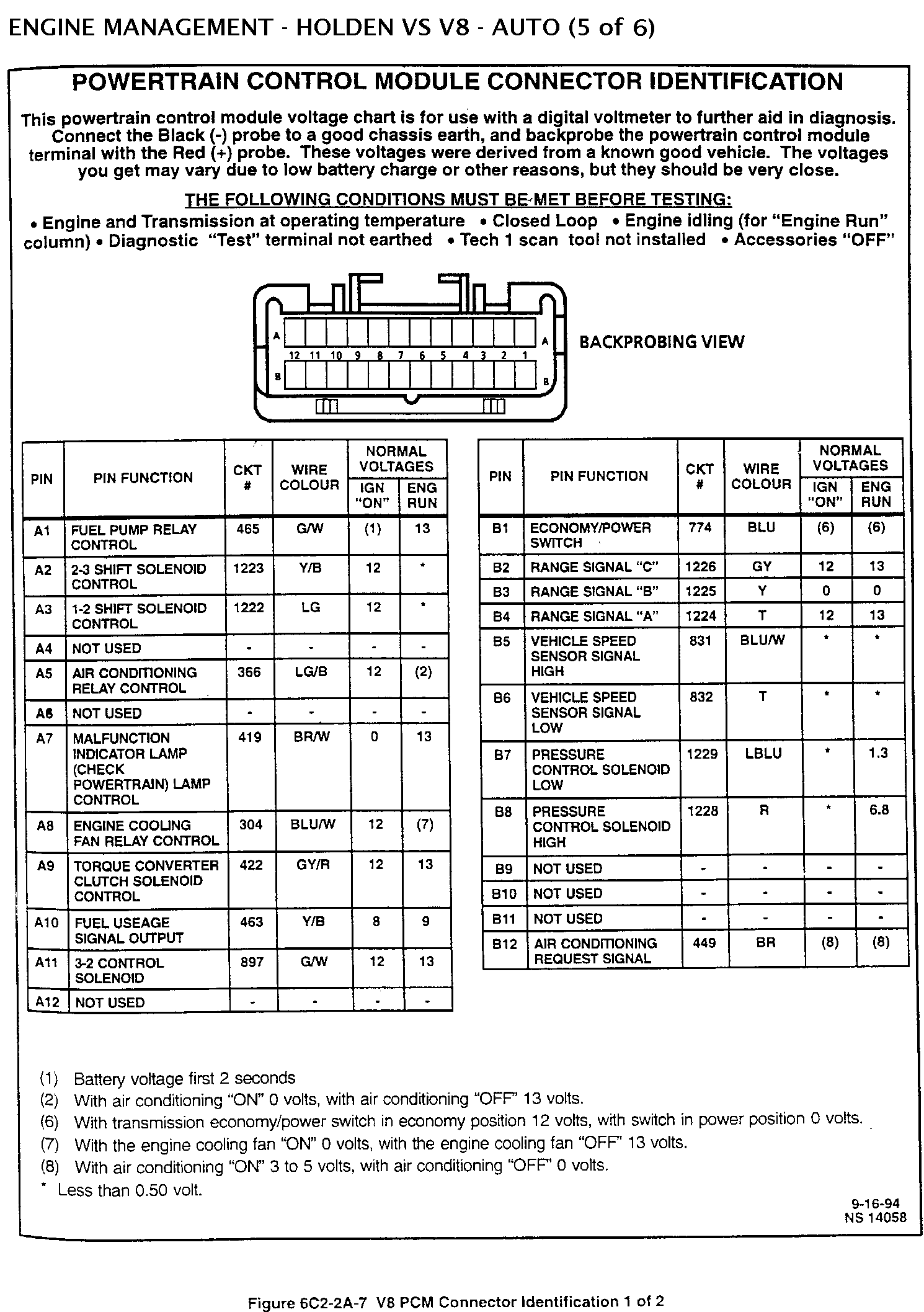

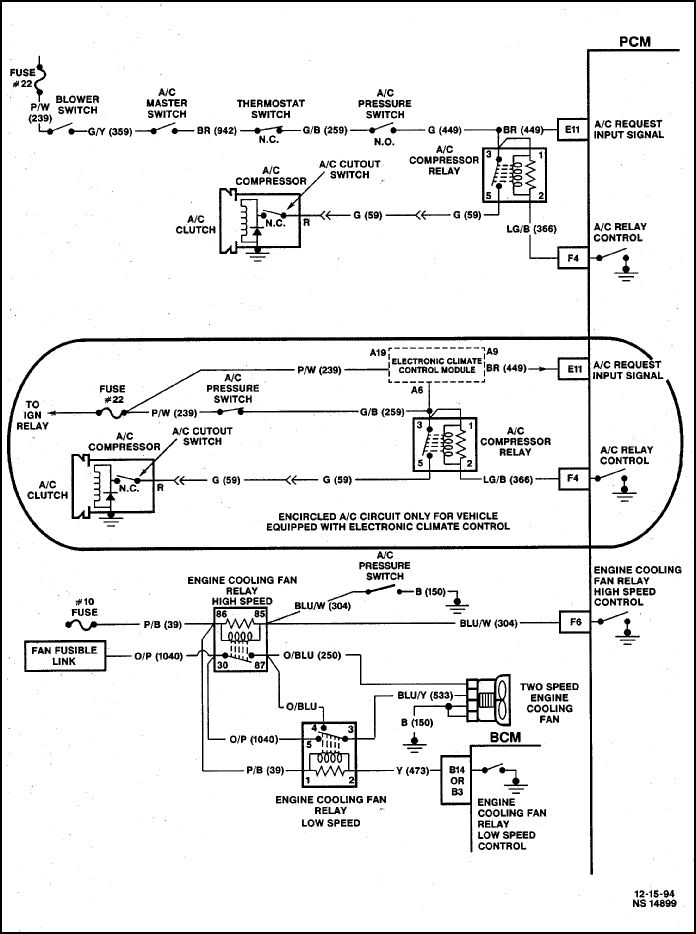

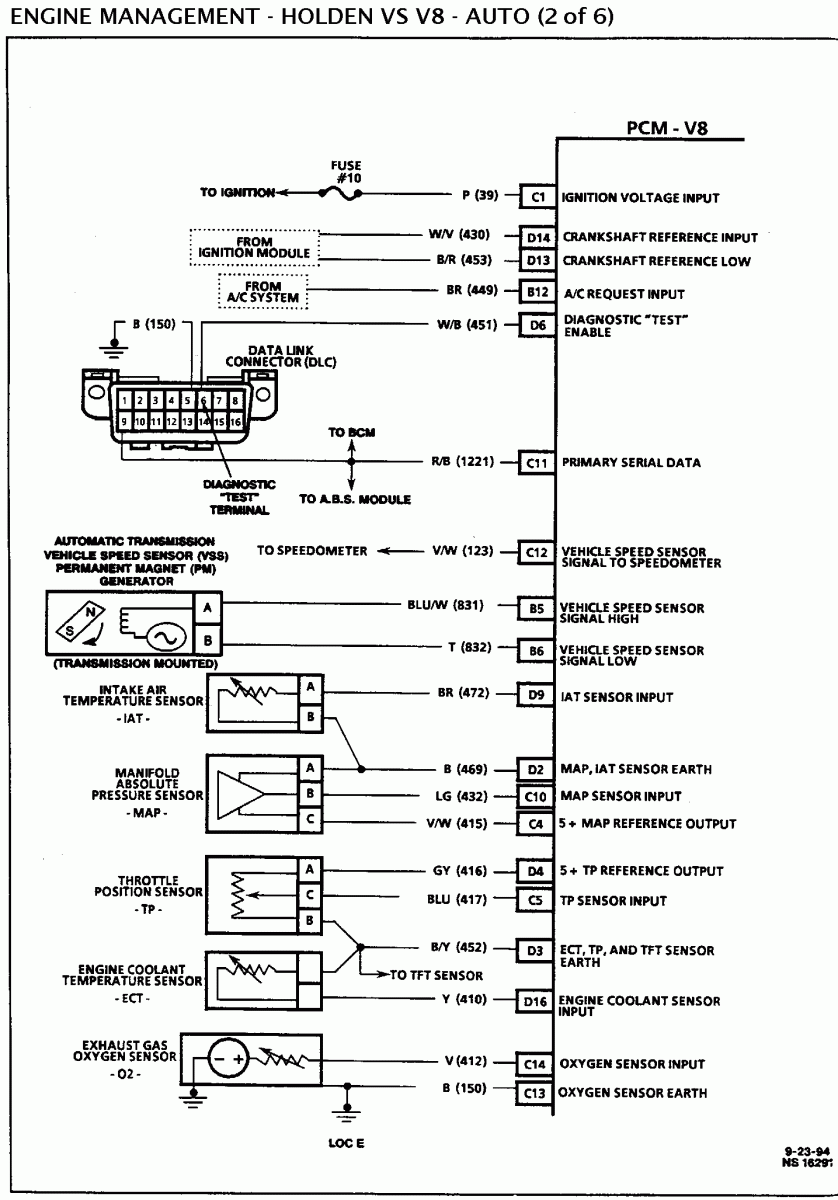

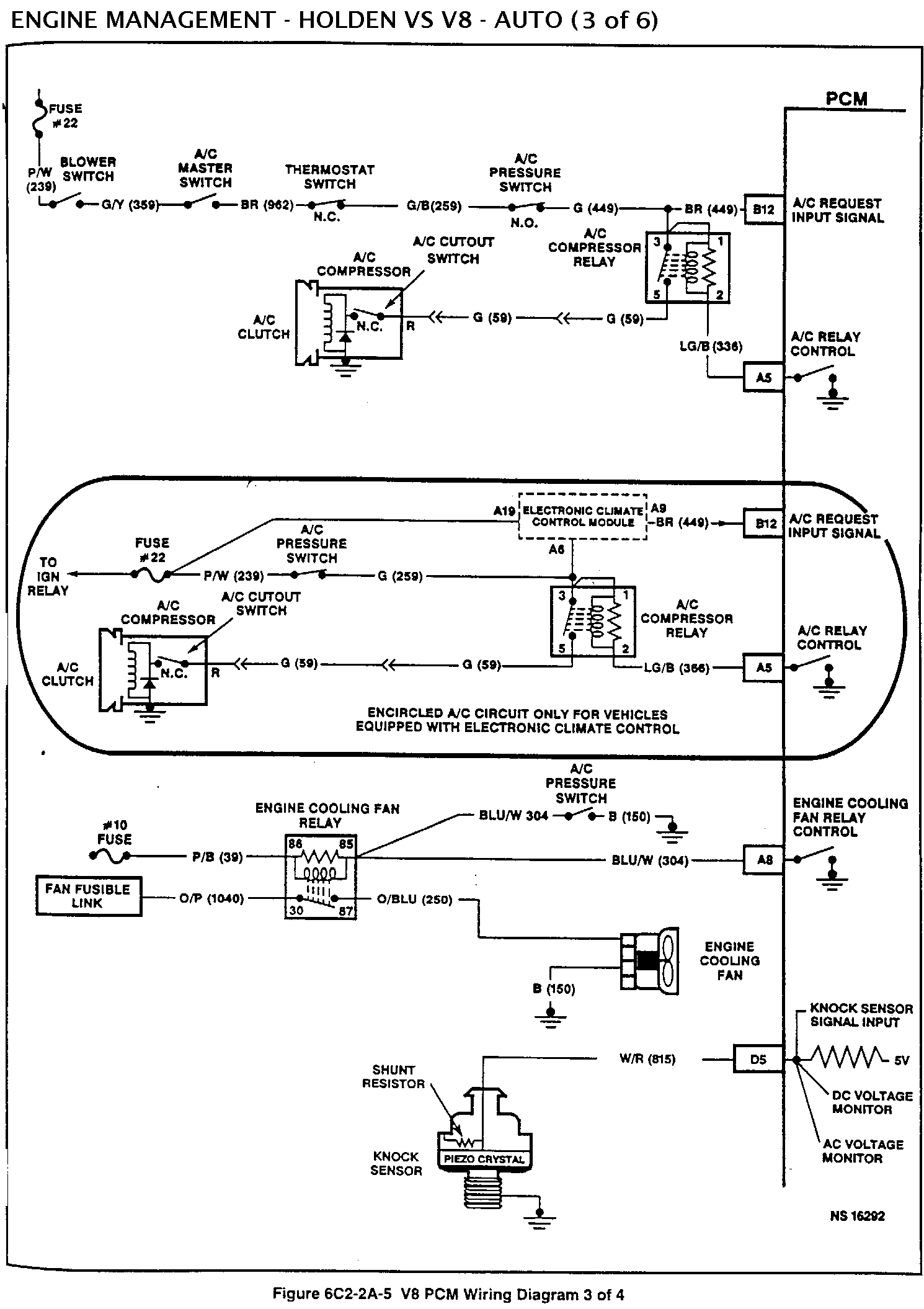

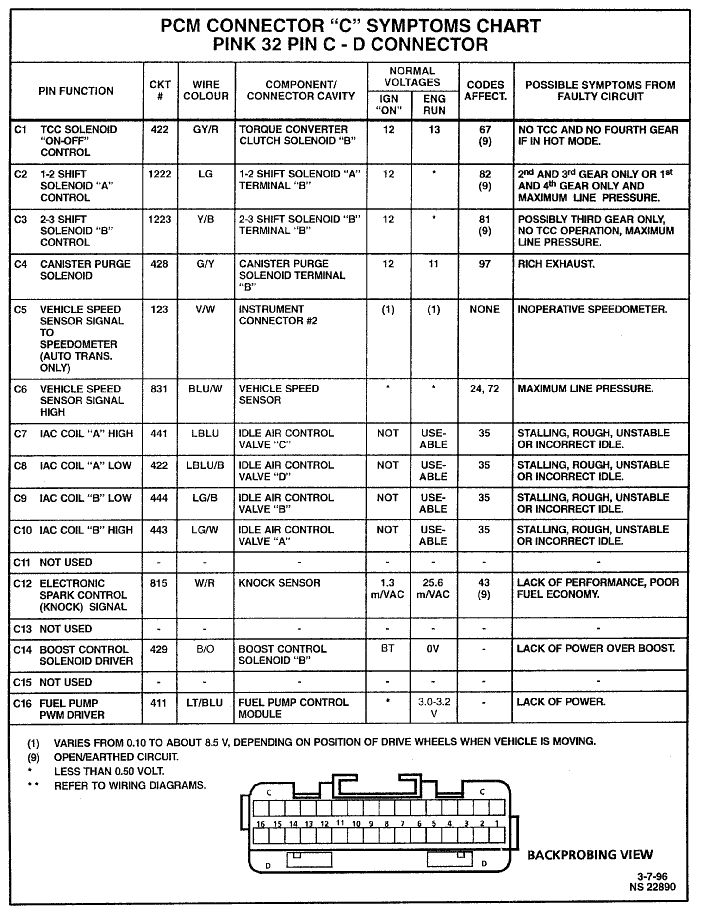

VS V6 & V8 PCM Wiring Diagram

Post by VL400 »

You do not have the required permissions to view the files attached to this post.
Top
User avatar
The1
Posts: 4852
Joined: Mon Jan 04, 2010 12:23 am

Re: VS V8 Auto Wiring Diagram

Post by The1 »

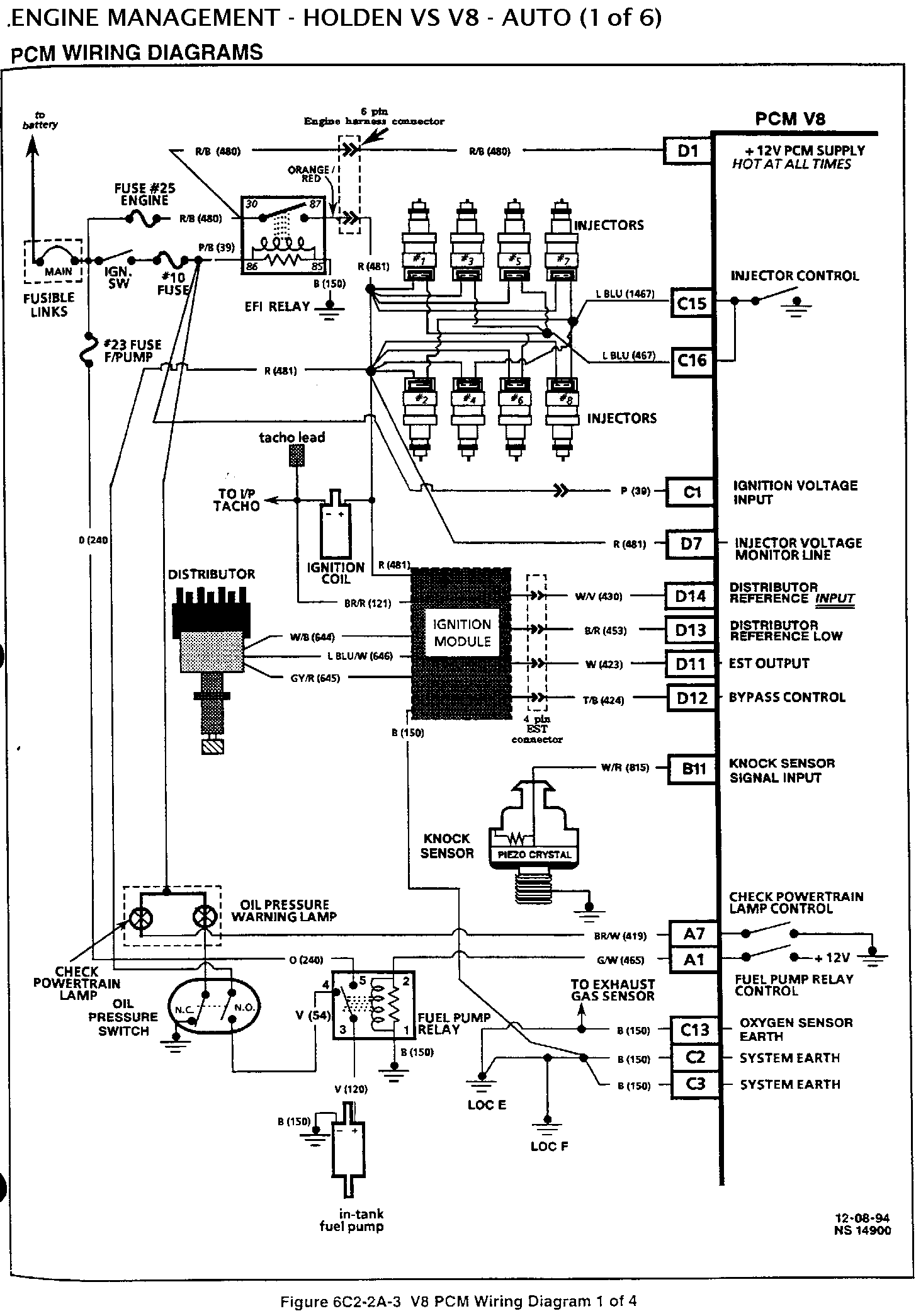

VS V8 MANUAL SERIES 1&2
VSV8 Manual Wiring Diagram.pdf

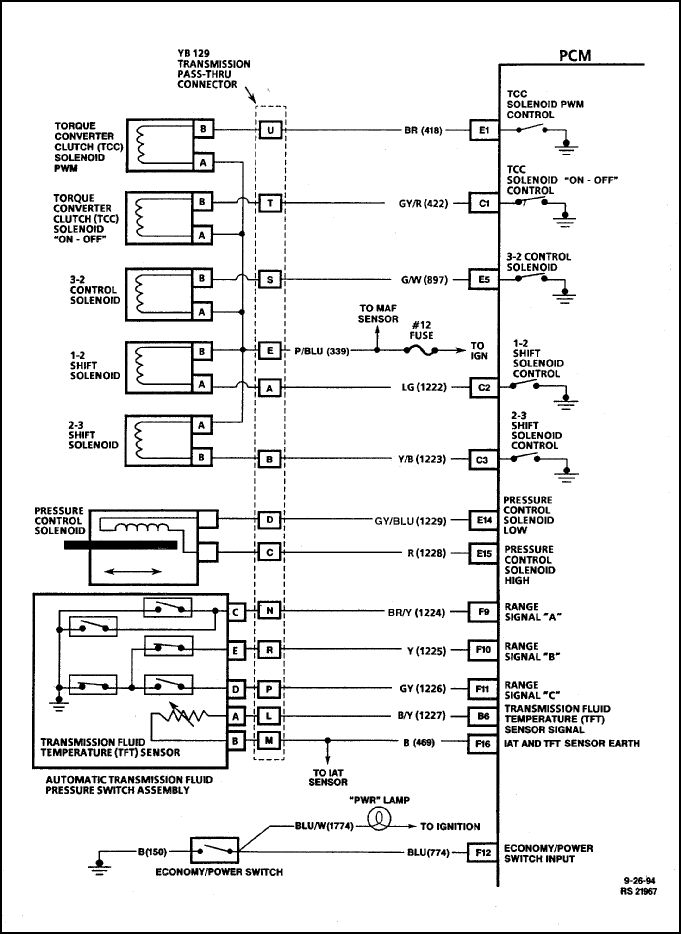

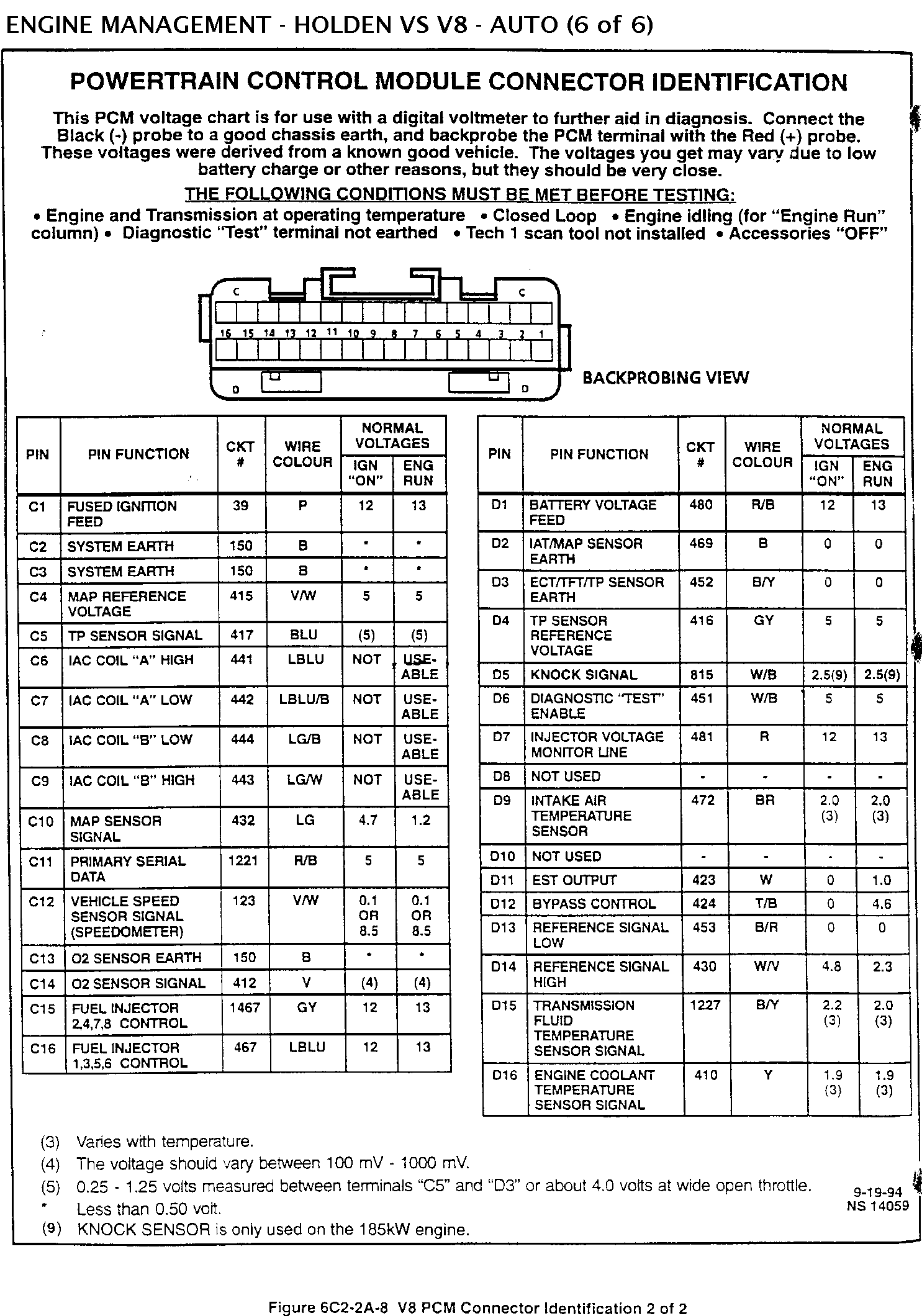

VS V8 Auto Series 3
VSV8 Auto Series 3 Wiring Diagram.pdf
VS V6
You do not have the required permissions to view the files attached to this post.
Top
monkies5L
Posts: 5
Joined: Tue Apr 26, 2016 3:02 pm
cars: 97 vs roller cam 5L ute

Re: VS V8 Wiring Diagram

Post by monkies5L »

hey sorry guys, my VS S2 and my VS BT1 looms dont have a knock sensor on them, what could be the difference there?
Top
immortality
Posts: 3820
Joined: Thu Apr 09, 2009 2:31 am
cars: VS,VT,VX,VE

Re: VS V8 Wiring Diagram

Post by immortality »

Only HSV used the knock sensor/have the wiring in the loom.
Top
Dylan
Posts: 3364
Joined: Mon Aug 02, 2010 8:35 am
cars: VR Commodore V8

Re: VS V8 Wiring Diagram

Post by Dylan »

It's actually a seperate run wire on these model's. Not a part of the engine harness.
Top
monkies5L
Posts: 5
Joined: Tue Apr 26, 2016 3:02 pm
cars: 97 vs roller cam 5L ute

Re: VS V8 Wiring Diagram

Post by monkies5L »

so would it matter at all if i wired a VT roller cam into VS ute with standard VS V8 loom without knock sensor?
Top
Dylan
Posts: 3364
Joined: Mon Aug 02, 2010 8:35 am
cars: VR Commodore V8

Re: VS V8 Wiring Diagram

Post by Dylan »

No so long as the knock sensor is disabled in the tune.
Top
Wade
Posts: 1229
Joined: Sun Jul 10, 2016 8:29 pm
cars: Vr 5.0 statesman vr exec 5.0 turbo vy clubsport

Re: VS V8 PCM Wiring Diagram

Post by Wade »

I fitted a vt roller engine into my brother vq. Just run all your accessories and intake manifold along with you engine loom on the vt motor and your done.
Top
User avatar
Holden202T
Posts: 10435
Joined: Sat Feb 28, 2009 11:05 am
Location: Tenambit, NSW

Re: VS V8 PCM Wiring Diagram

Post by Holden202T »

why do you need to run the earlier inlet manifold ? I would have thought they were the same ?
Top
Dylan
Posts: 3364
Joined: Mon Aug 02, 2010 8:35 am
cars: VR Commodore V8

Re: VS V8 PCM Wiring Diagram

Post by Dylan »

No IAT sensor thread and only 1 temp sensor thread at the Front. Probably missing the vac port for MAP to can't remember that one.
Top
