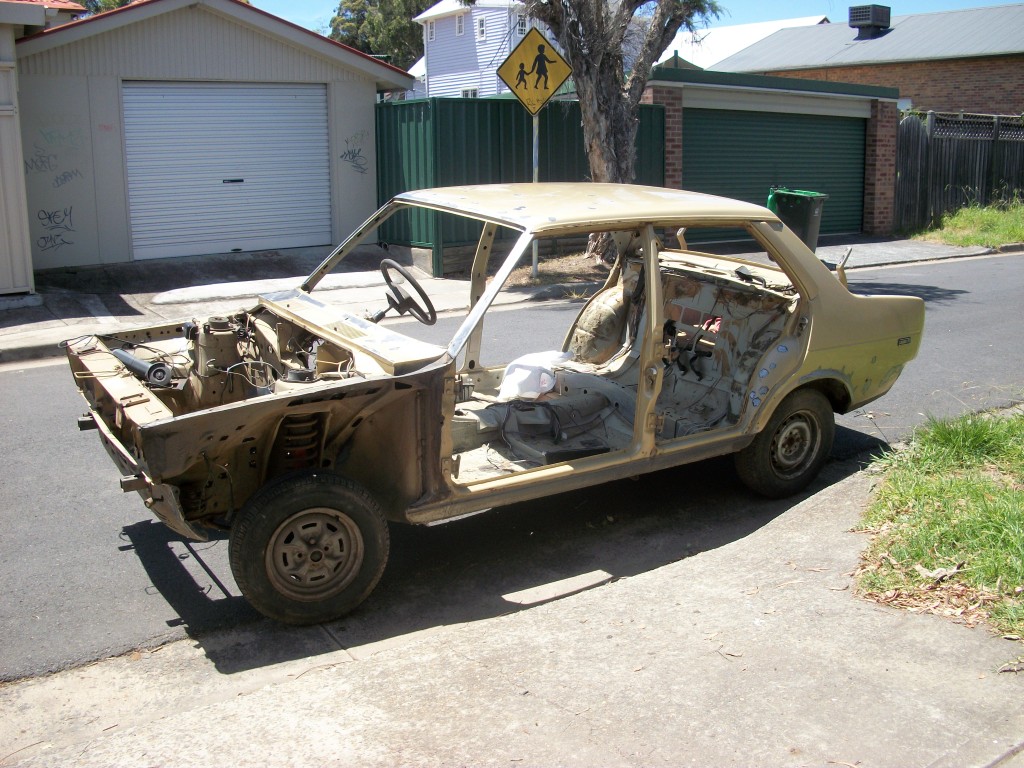

Hello people, The names Andrew, im from Sydney and this is my car..Its a 82 fiat 131 which was in the following state when i got it..

100_4148 (Medium).JPG (314.8 KiB) Viewed 7645 times

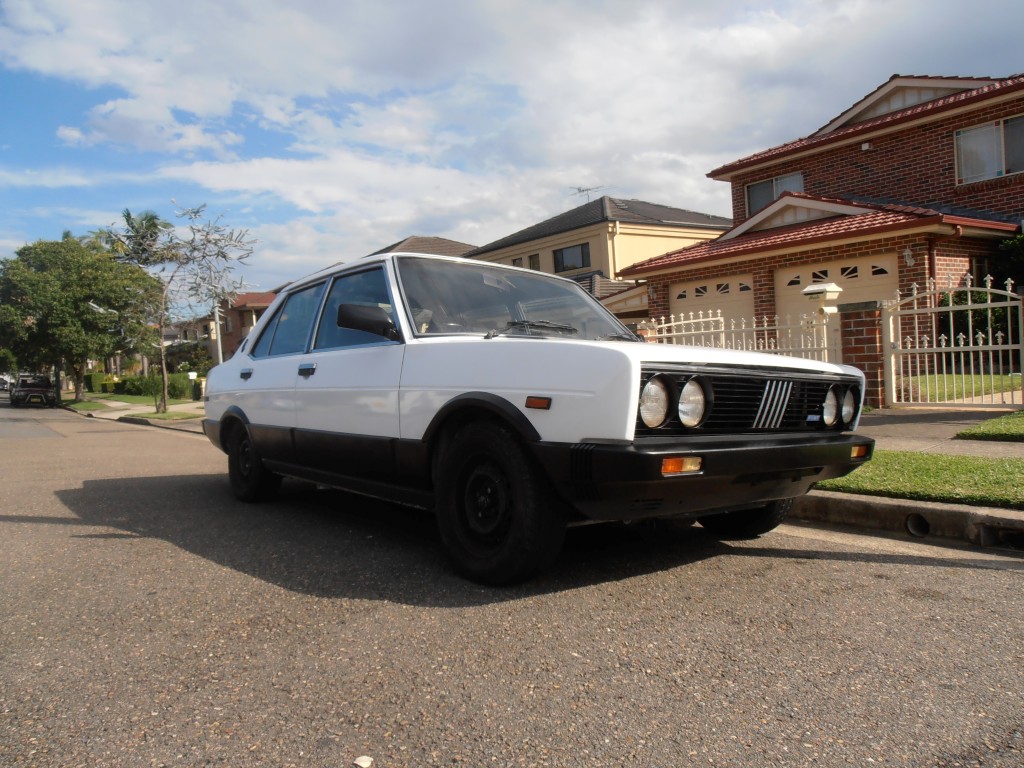

After some months of hard work it looked like this (have since got some 15' alloys under it)

P3280470 (Medium).JPG (230.89 KiB) Viewed 7645 times

The engine currently is a 2L twin cam running twin 40 dellortos and extractors, my plans are to convert to efi turbo using the delco system

P3280486 (Medium).JPG (210.63 KiB) Viewed 7645 times

Ive begun acquiring the parts necessary to build a turbo engine, in particular most of the delco related parts...Since im new to EFI you guys can expects a lot of questions More details and images to come!

[mrfiat]

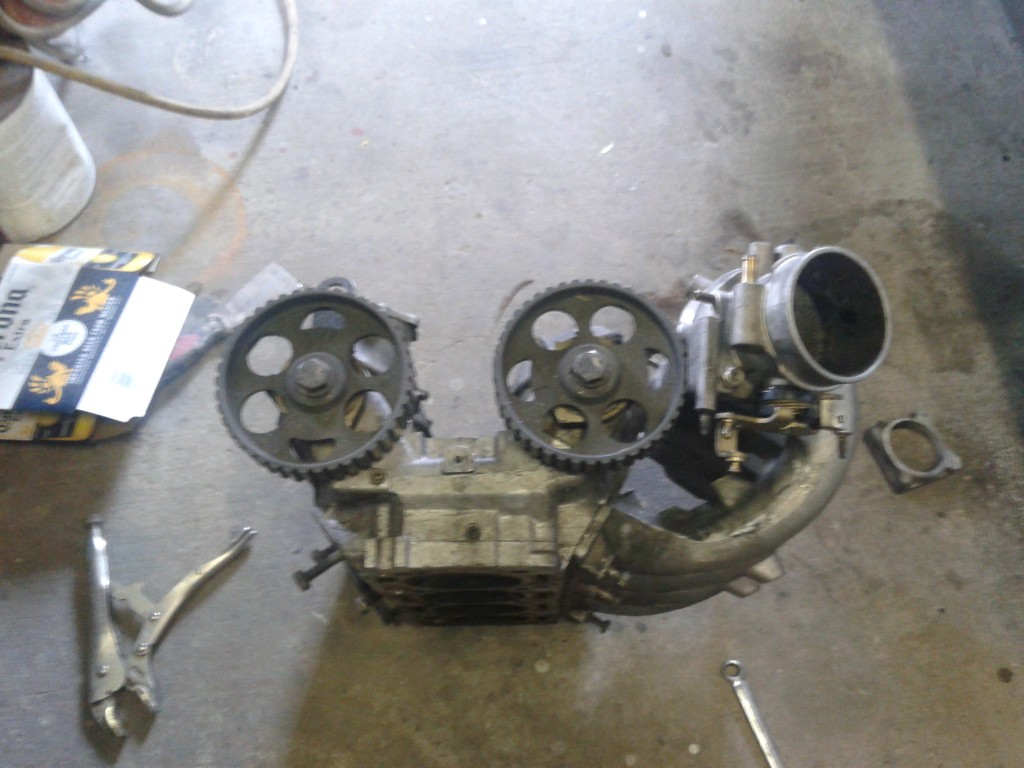

And for my first question, which may be stupid so forgive me but does the angle at which a commodore throttle body sits matter? Im planning to have it positioned like so...

20130419_121536 (Medium).jpg (196.33 KiB) Viewed 7643 times

20130419_121459 (Medium).jpg (157.16 KiB) Viewed 7643 times

20130419_121543 (Medium).jpg (165.82 KiB) Viewed 7643 times

[Holden202T]

as far as I am aware the only thing to try and do is make sure the IAC part (on the left of the TB in the last pic) is not as the bottom but other than that just whatever works for you really!

looks like you've brought the car a long way already, and the delco with turbo should help

[mrfiat]

Thanks for that, just to confirm (im a little thick) the IAC shouldn't be positioned at the bottom as in the location of the throttle arm in the middle picture?

[antus]

I assume the logic is to keep crap from collecting in it. how your thinking looks fine to me.

[Holden202T]

yeah to stop it getting clogged with oil vapours and such, how much difference it makes I don't really know though, I had no choice and mine is down!

[mrfiat]

Righto, cheers guys

[festy]

Nice work, you don't see many old Fiats around these days.
I converted my Alfetta to delco because it was cheaper and easier than rebuilding those DHLA40s
You'll miss that sweet induction roar, but the turbo should be compensation enough.
You WON'T miss the constant carb re-balancing, the throttle progression stumbles, poor fuel economy, the cold starts (I see you don't have the chokes connected) or the car-destroying engine bay fires those air filters can cause on a backfire.

[mrfiat]

I decided that id be better off converting the current engine to efi, then build up my spare block for the turbo, then move all the efi parts over to the new engine. That way i know it all works. I am going to make a separate trigger disk which i will weld or bolt on to the front pulley then get the whole unit balanced. I recall reading that raised teeth, rather than slots in the trigger disk give a sharper/cleaner reading? would it be worth making the trigger disk like either of the following? ..(seven raised triangle shaped teeth or seven raised square teeth) as apposed to cutting slots in a round disk as many have done on this forum? Any input welcome. I hope this question isnt too stupid..

Untitled (Medium).jpg (36.41 KiB) Viewed 7547 times

[Holden202T]

yes raised teeth are better and square is what you need i believe.

also you can get laser cut trigger wheels from the internet, might be an easier option than making one ?
