VT BCM - ABS - SRS - Cluster - Wiring Diagrams

Post by The1 »

VT BCM - ABS - SRS - Wiring Diagrams

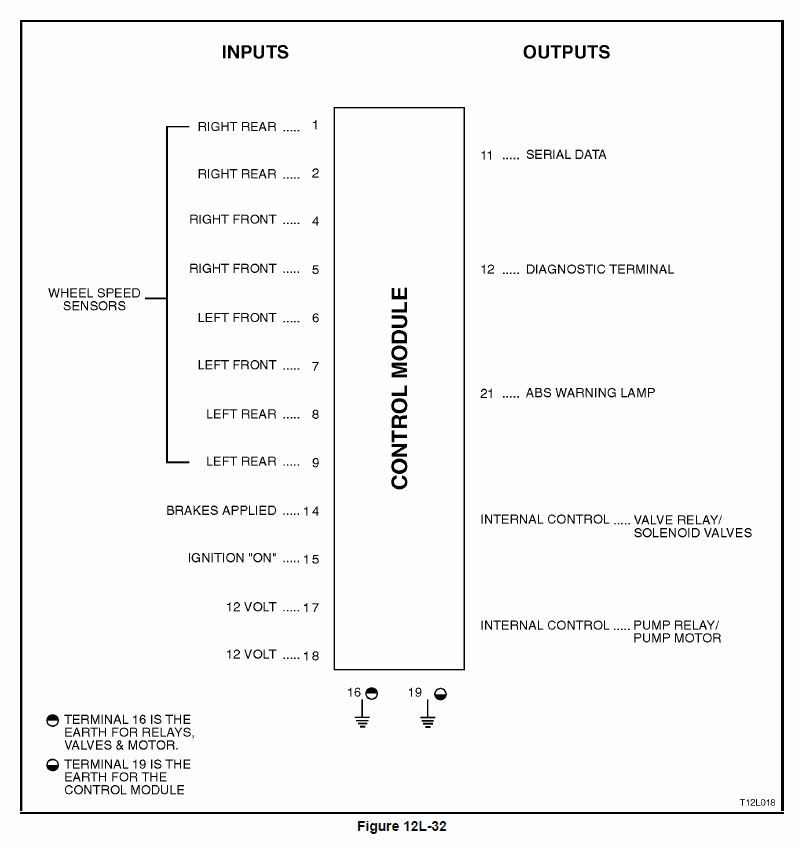

VT ABS Wiring.JPG

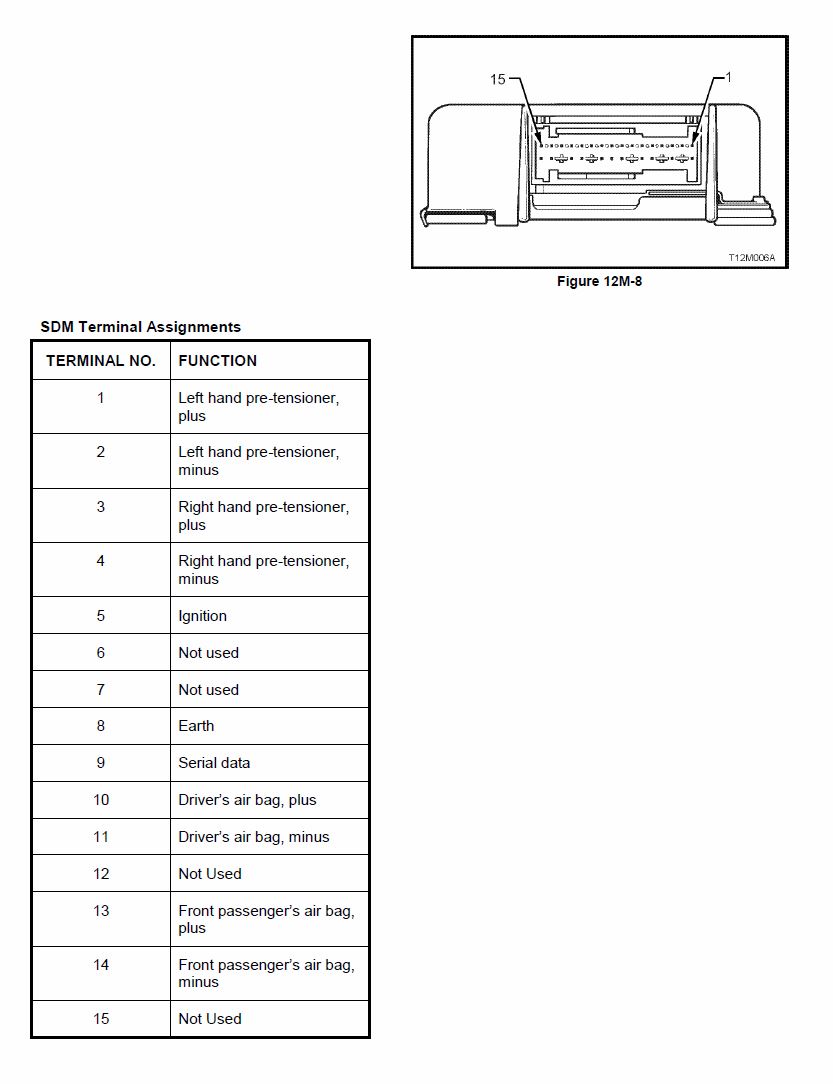

VT SRS Wiring.JPG

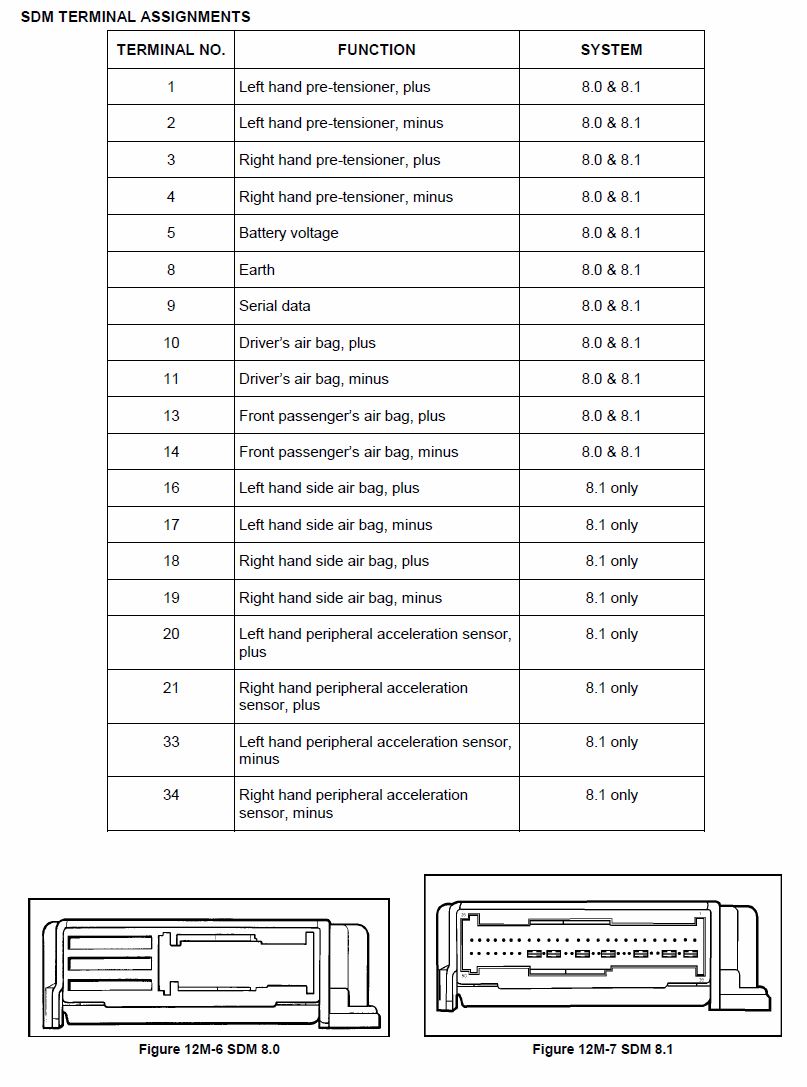

VT SRS Wiring 8.x.JPG

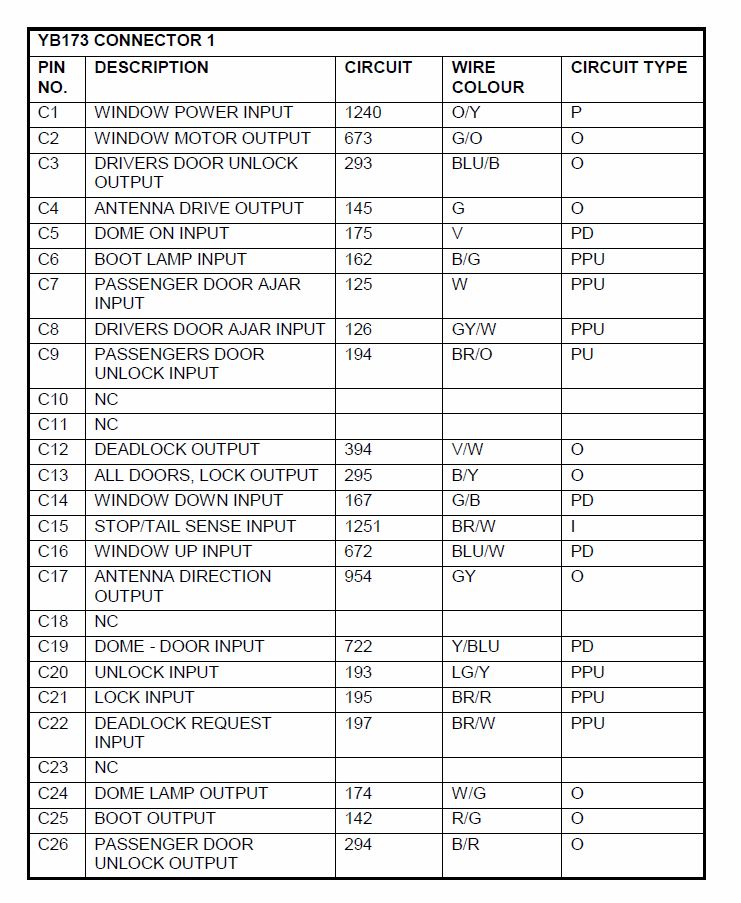

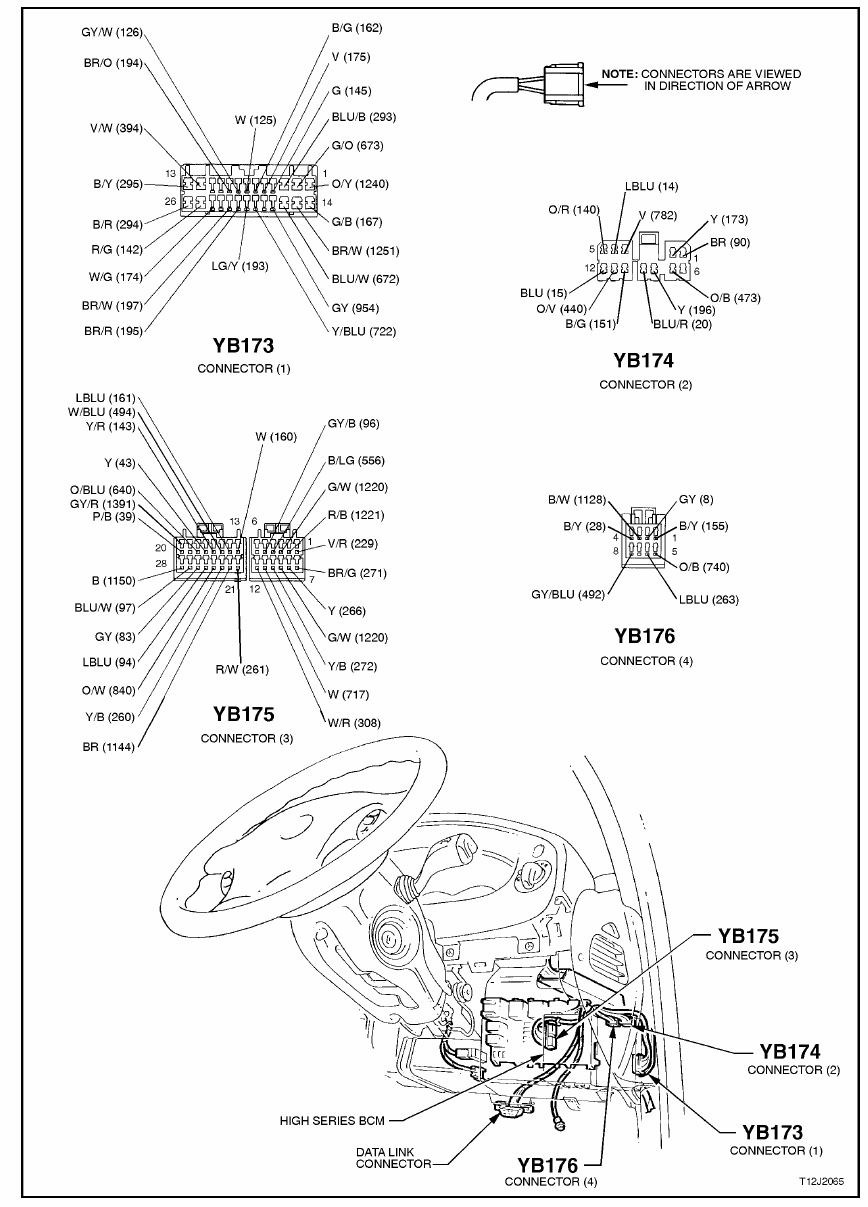

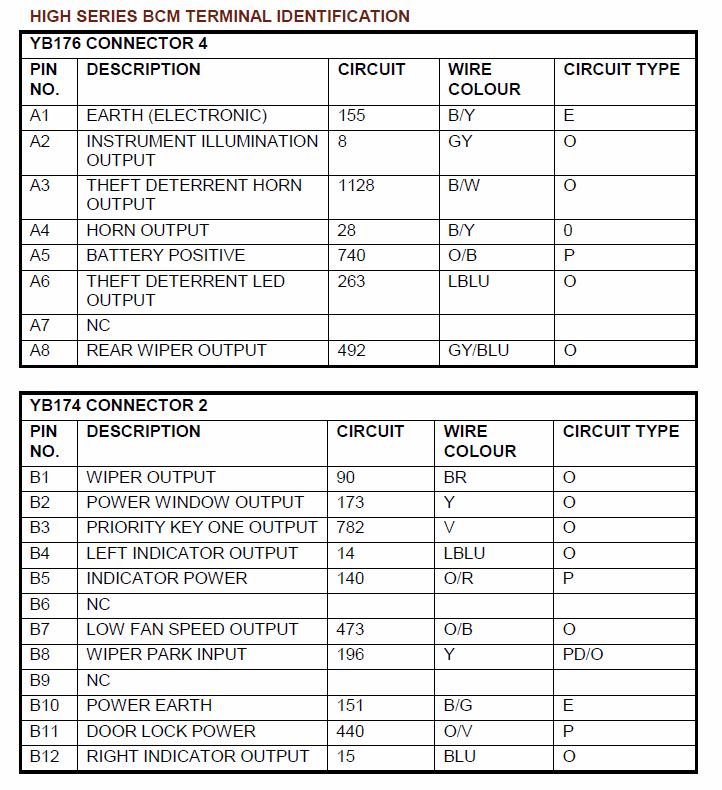

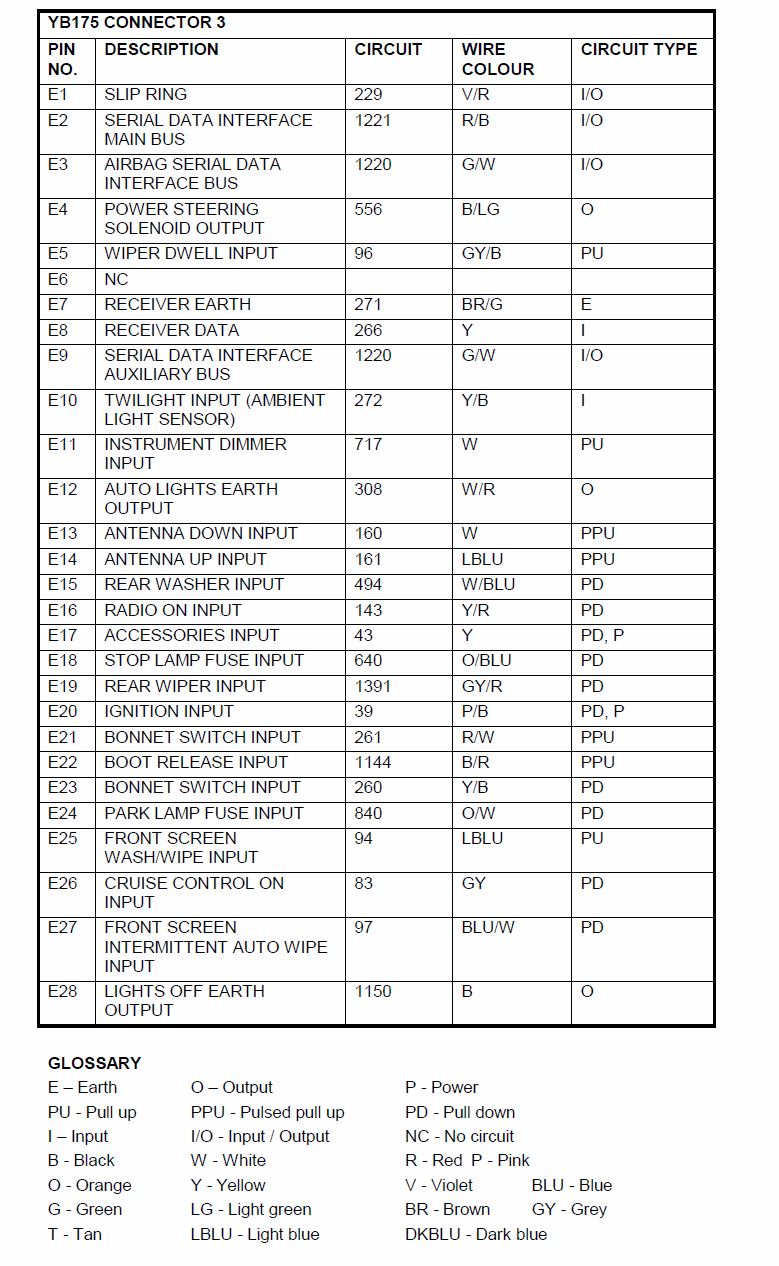

VT BCM Wiring 4.JPG
VT BCM Wiring 1.JPG
VT BCM Wiring 2.JPG
VT BCM Wiring 3.JPG
You do not have the required permissions to view the files attached to this post.
Top
User avatar
antus
Site Admin
Posts: 10012
Joined: Sat Feb 28, 2009 10:34 am
cars: TX Gemini 2L Twincam 8psi
TX Gemini SR20 18psi
Datsun 1200 Ute
Subaru Blitzen '06 EZ30 4th gen, 3.0R Spec B
Subaru WRX 2007

Re: VT BCM - ABS - SRS - Wiring Diagrams

Post by antus »

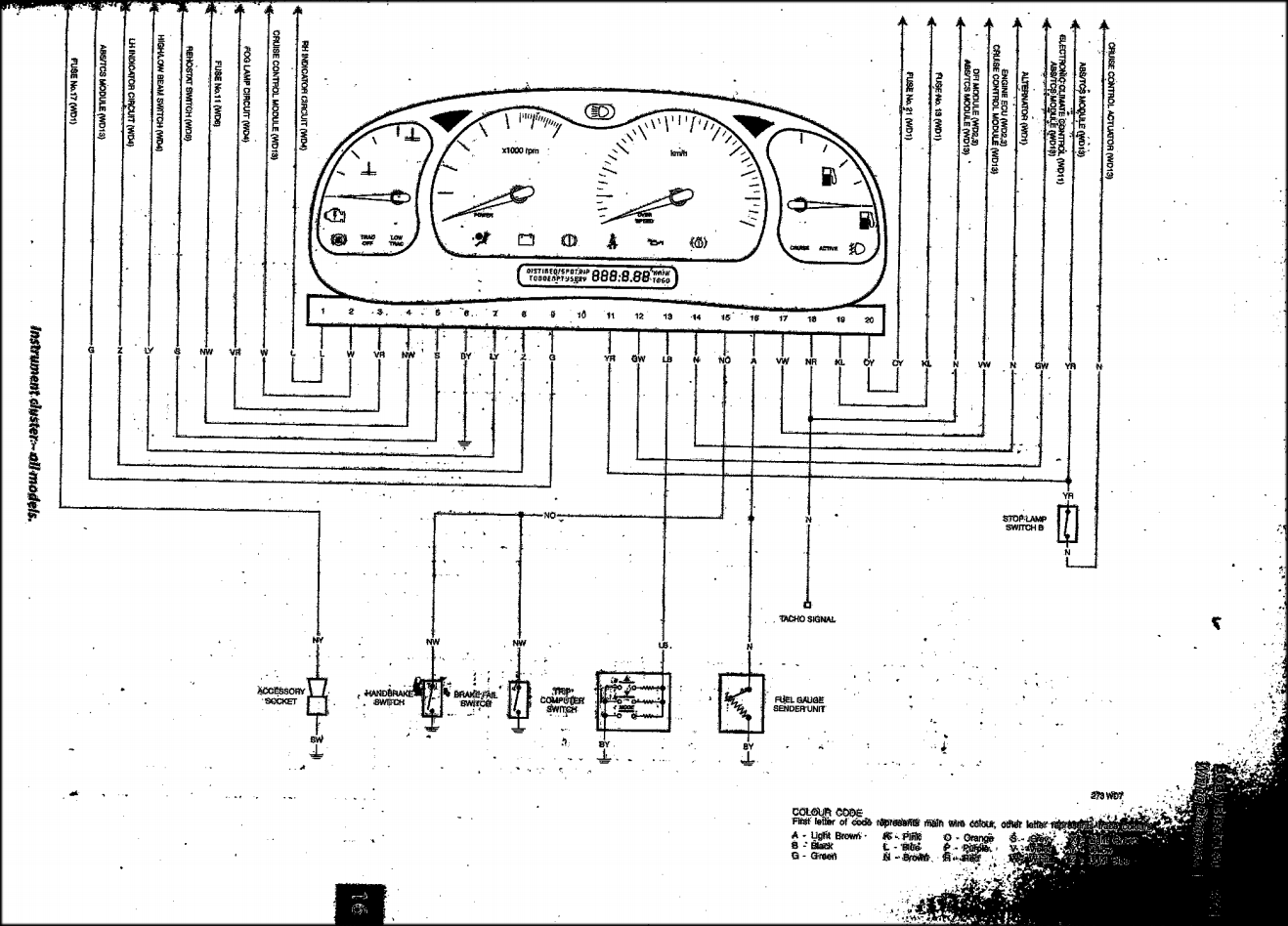

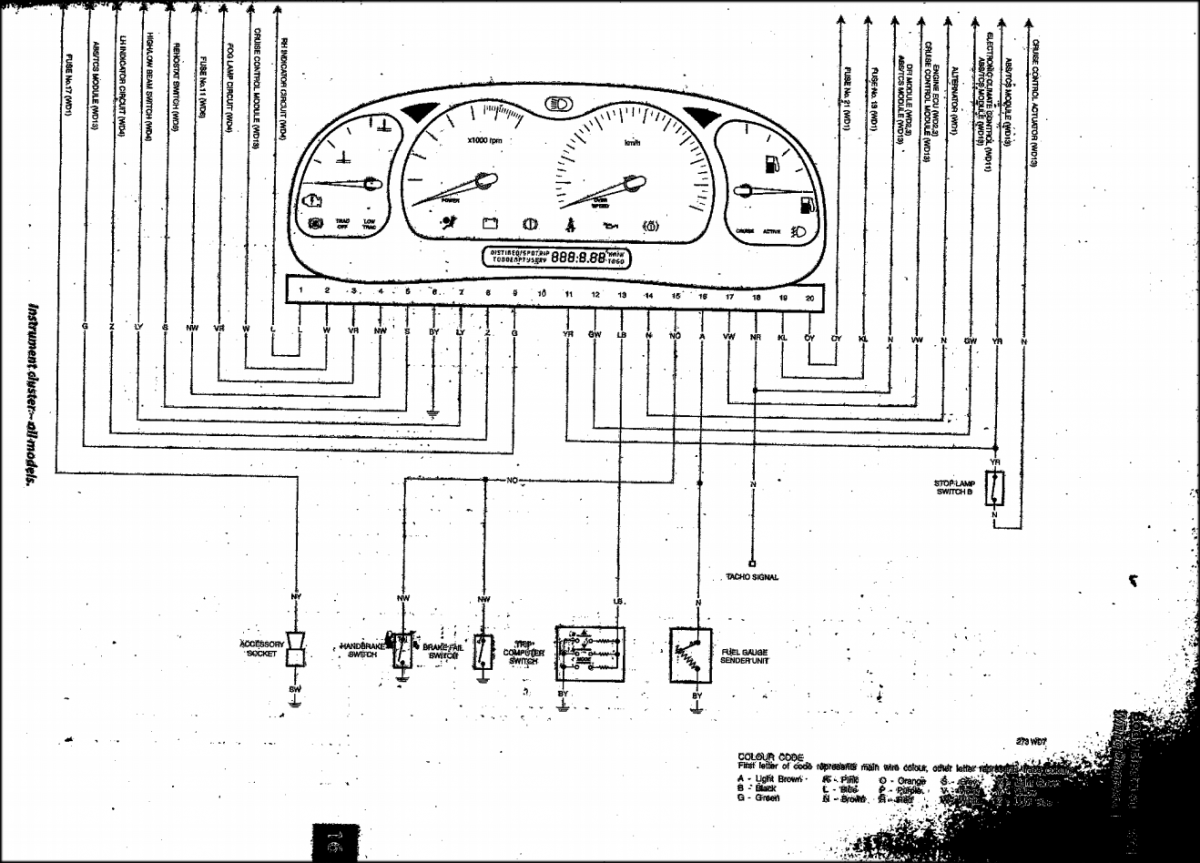

VT Dash cluster
You do not have the required permissions to view the files attached to this post.
Have you read the FAQ? For lots of information and links to significant threads see here: http://pcmhacking.net/forums/viewtopic.php?f=7&t=1396
