VE V6 LY7 & V8 L98 LS2 ECM Wiring Diagram

Wiring diagrams and questions
User avatar
The1
Posts: 4852
Joined: Mon Jan 04, 2010 12:23 am

VE V6 LY7 & V8 L98 LS2 ECM Wiring Diagram

Post by The1 »

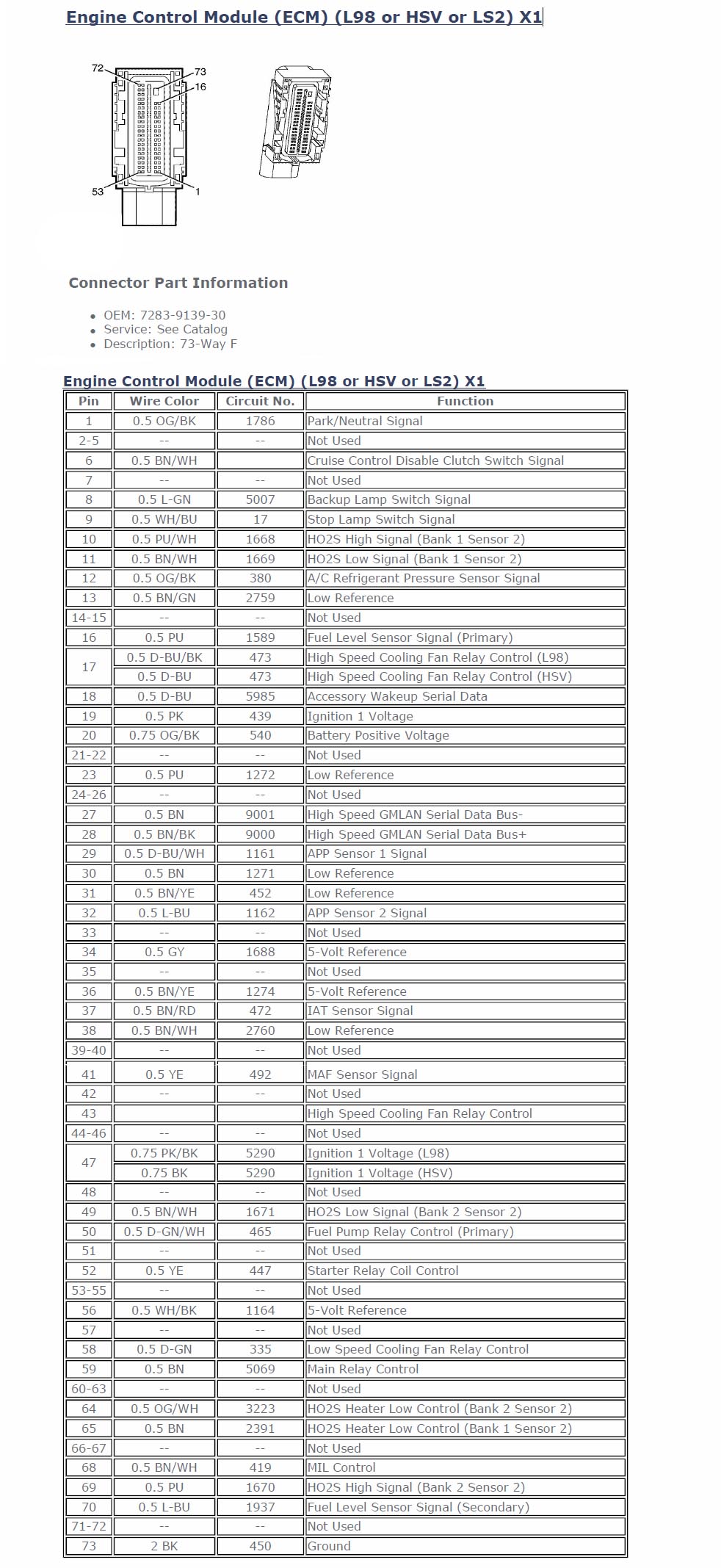

VE L98 HSV LS2 X1 ECM.jpg

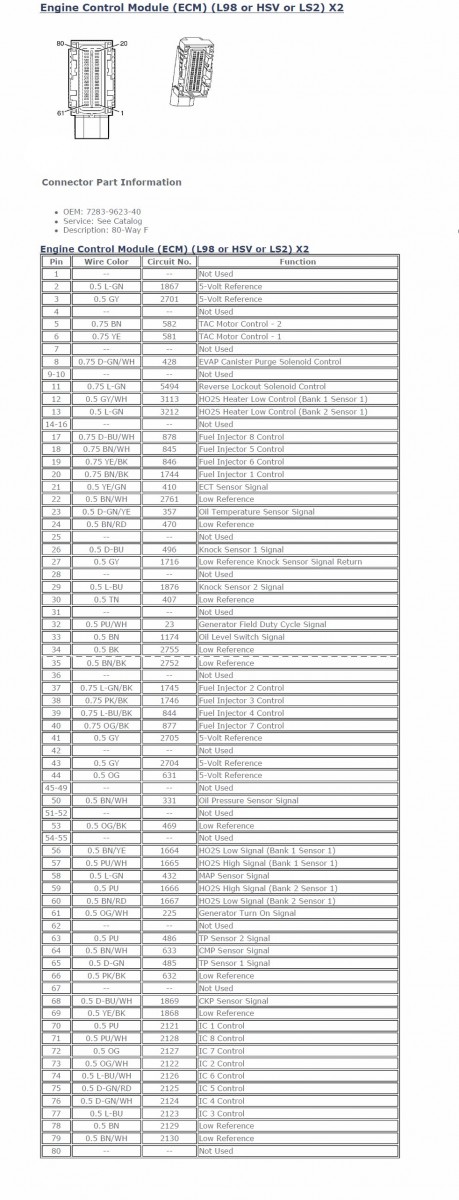

VE L98 HSV LS2 X2 ECM.jpg

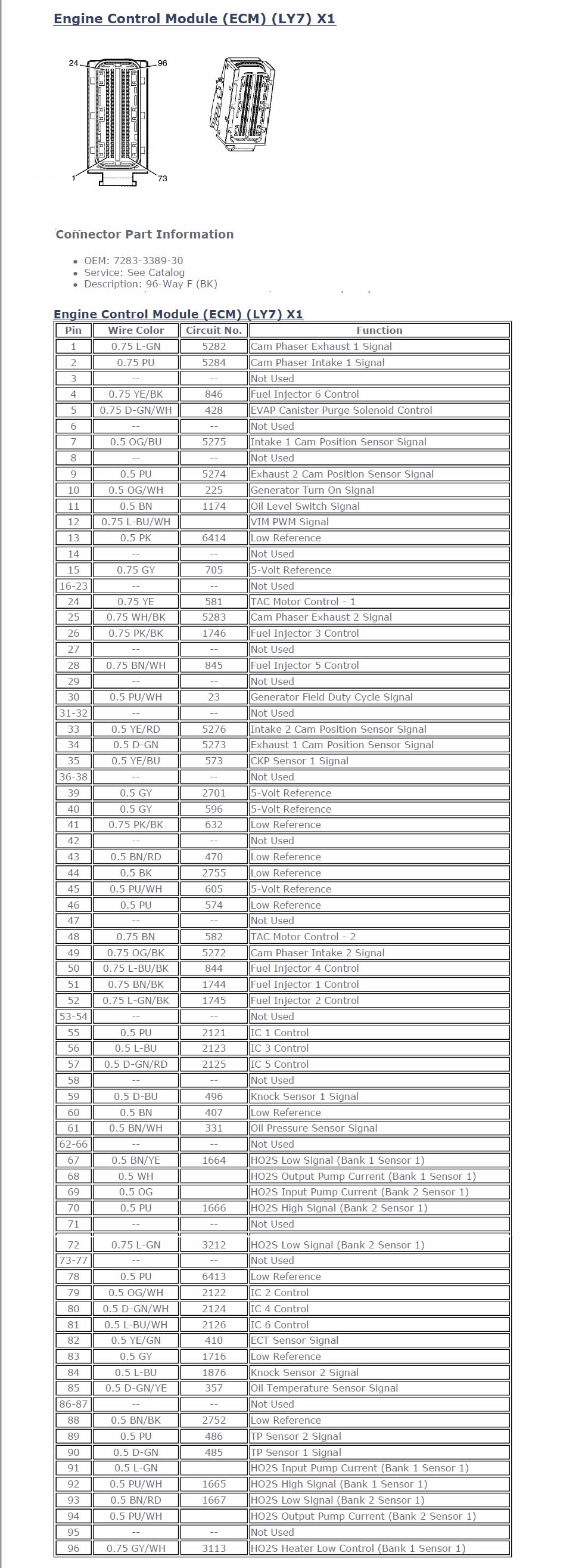

VE LY7 V6 X1.jpg
VE LY7 V6 X2.jpg
You do not have the required permissions to view the files attached to this post.
Top
Faaloua92
Posts: 1
Joined: Tue Aug 15, 2017 8:32 am
cars: Ve ss 6L

Re: VE V6 LY7 & V8 L98 LS2 ECM Wiring Diagram

Post by Faaloua92 »

How would i by pass the inhibitor switch in a 6l80e
Iv got a ve ss 6L and gone from auto to manual
