Started looking around and stumbled across VL400 ALDL data logger (which I had seen pic's of some time ago) and got thinking ....I been playing with Nextion displays for non-car projects.
I flicked VL400 a quick email and bounced it off him and thought lets bounce it off the group.
My thought (feel free to give me an upper cut if needed
)Take the ALDL 8192 data from the PCM to a modded/remodelled VL400 data logger without the screen, add extra I/O's the pass serial data to the displays (from 1 - 3 displays as needed)
The Nextion displays do all the heavy lifting and the arduino only needs to pass the required data as such.
Here are a few quick links to look at :
Nextion displays
https://www.itead.cc/display/nextion.html
Someone's techo design example
https://www.youtube.com/watch?v=eDn7LFyoEm8
Another gauge design
https://tech.scargill.net/wp-content/up ... Gauges.jpg

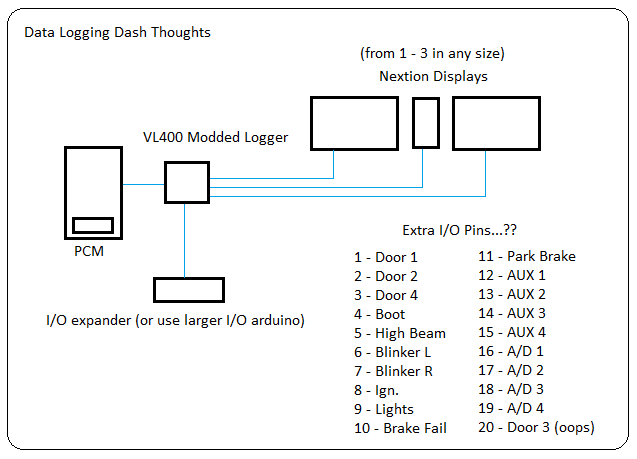

- overview of my thoughts
- Data Logging Dash.png (16.04 KiB) Viewed 2574 times
Justin
