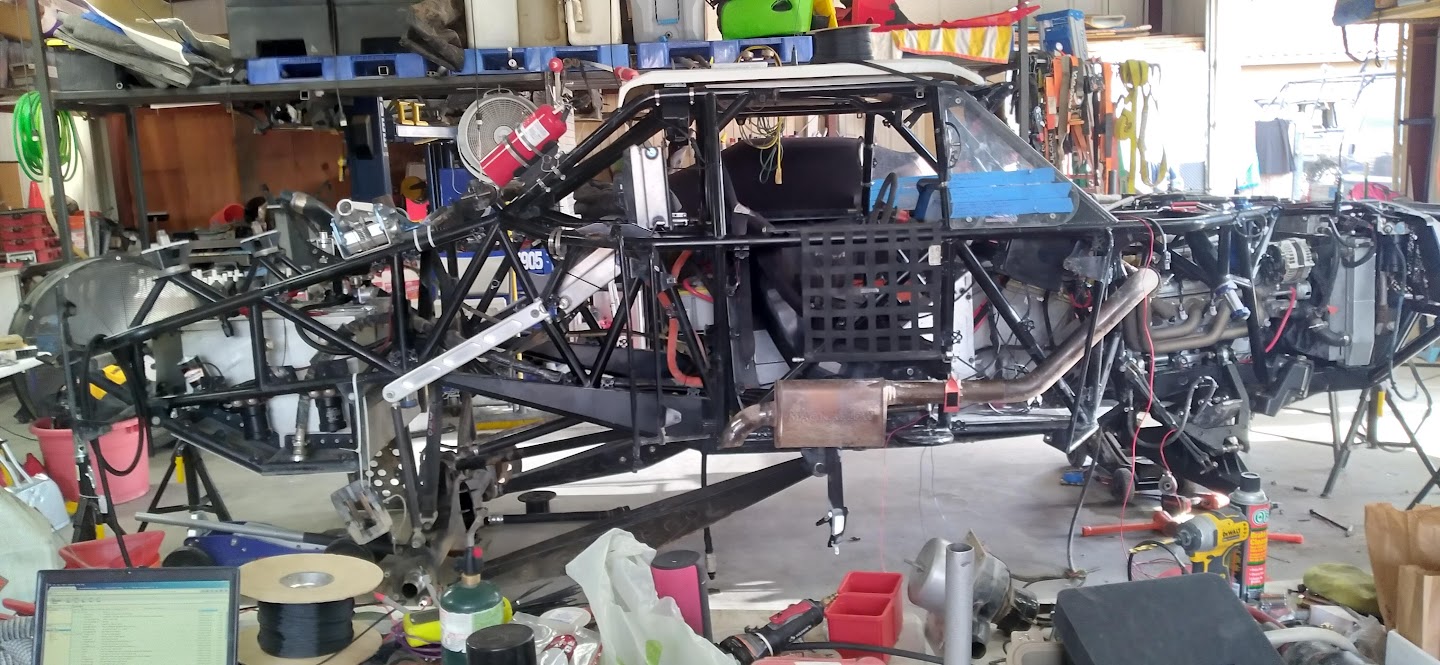

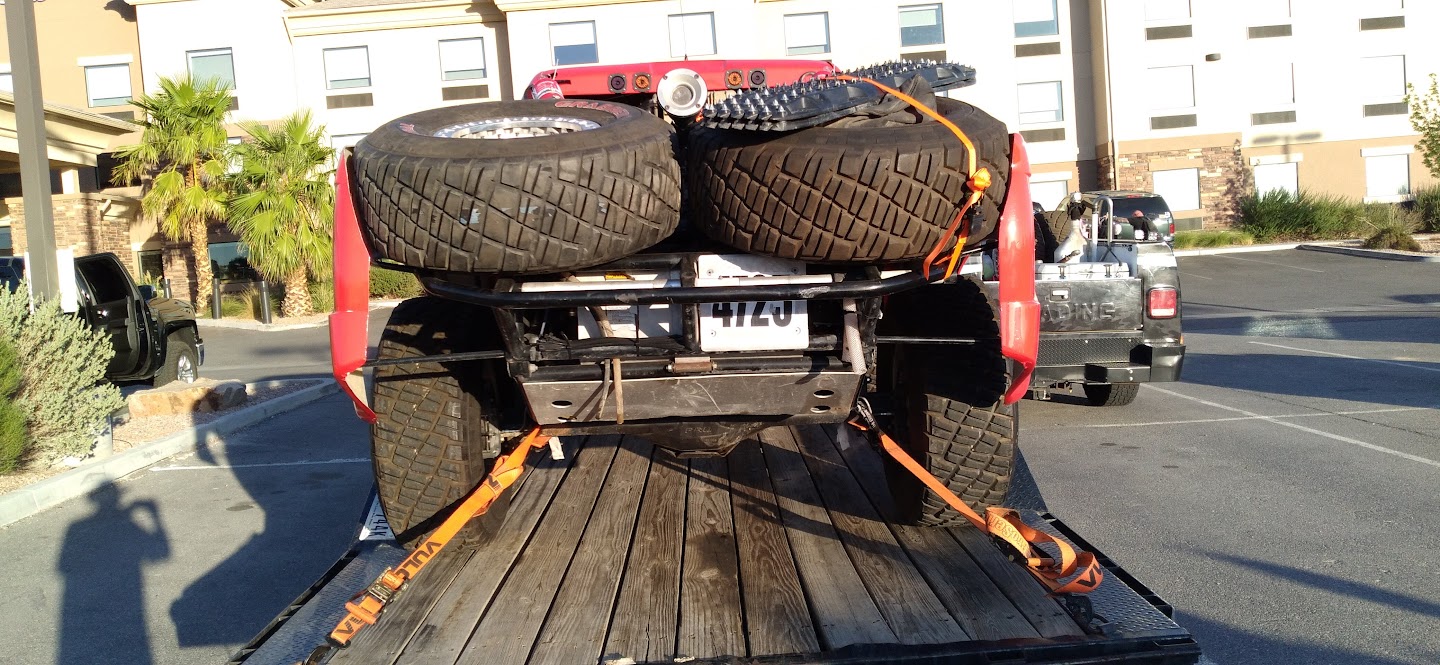

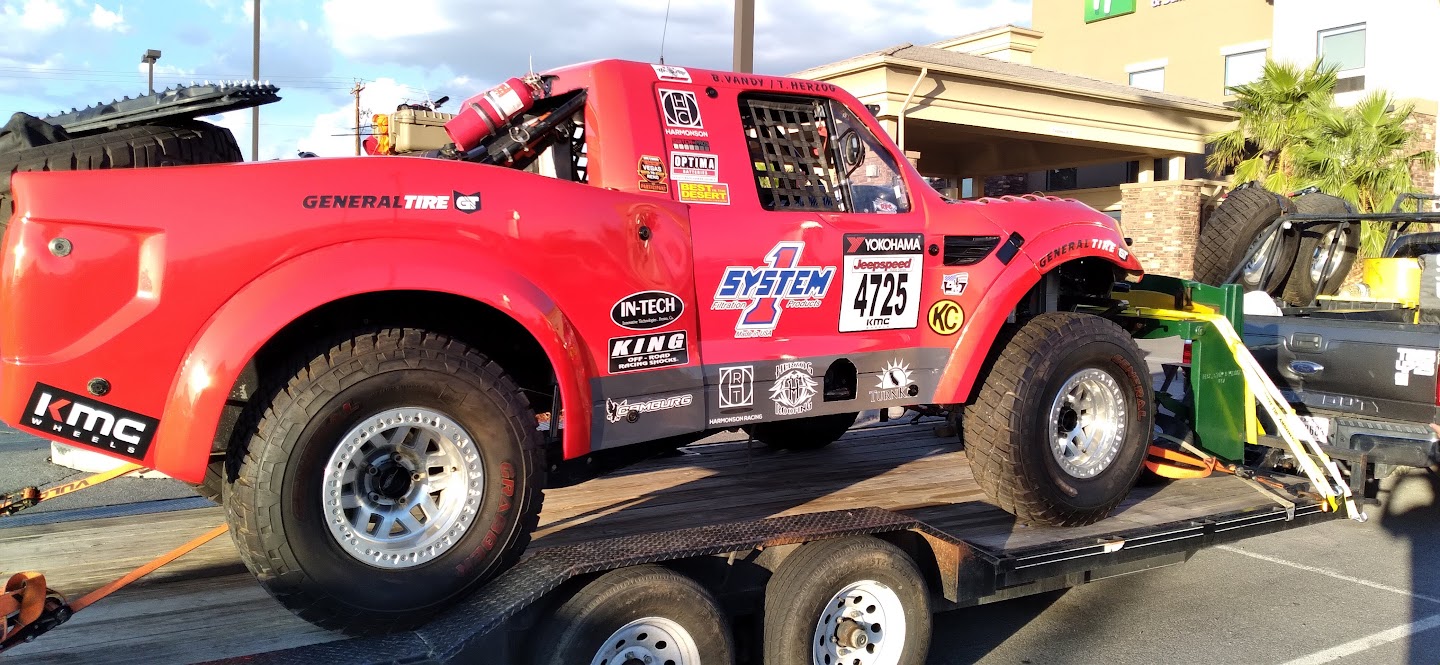

Off road race truck

[In-Tech]

430 cu in LS 4.070 x 4.125

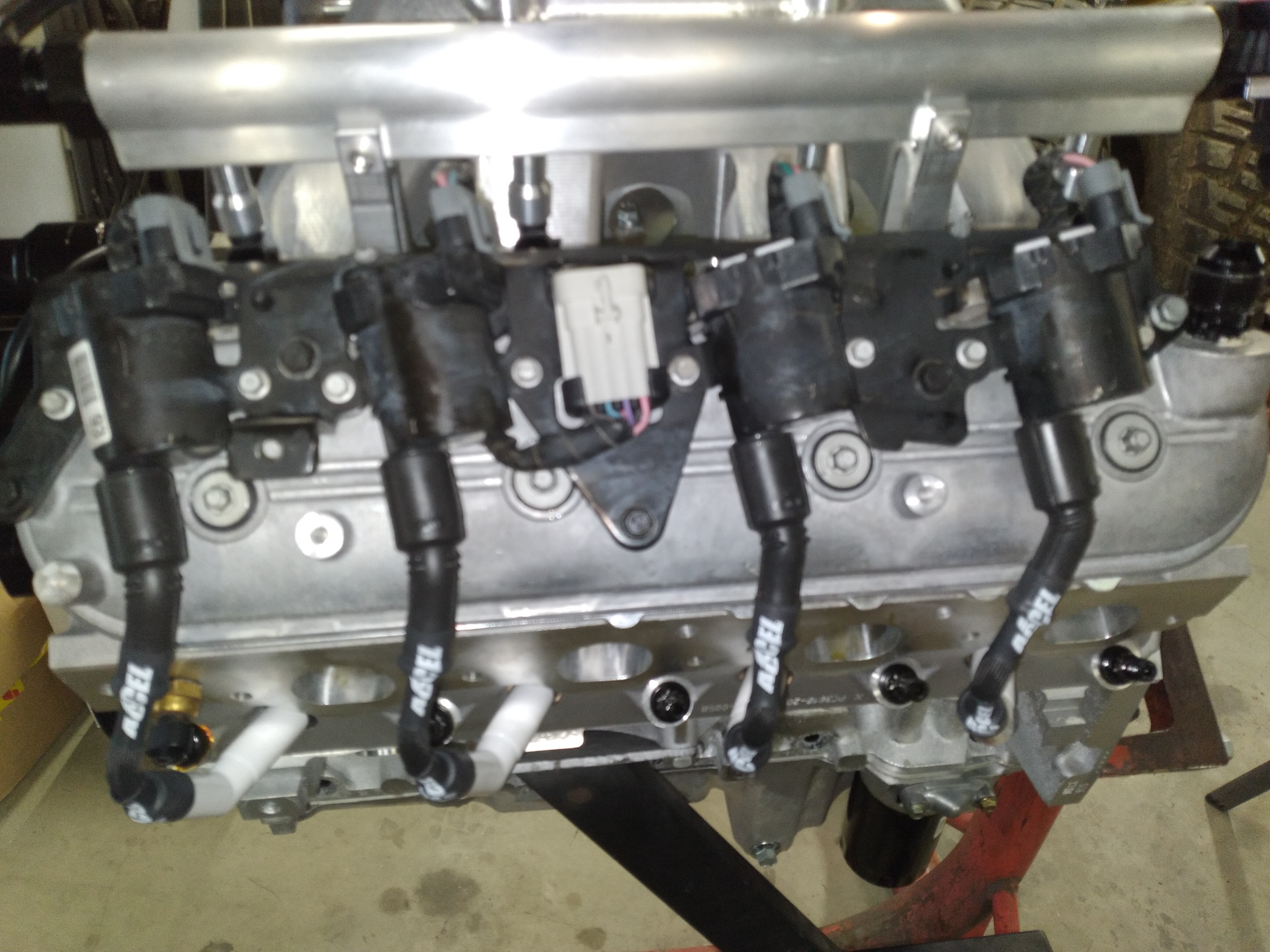

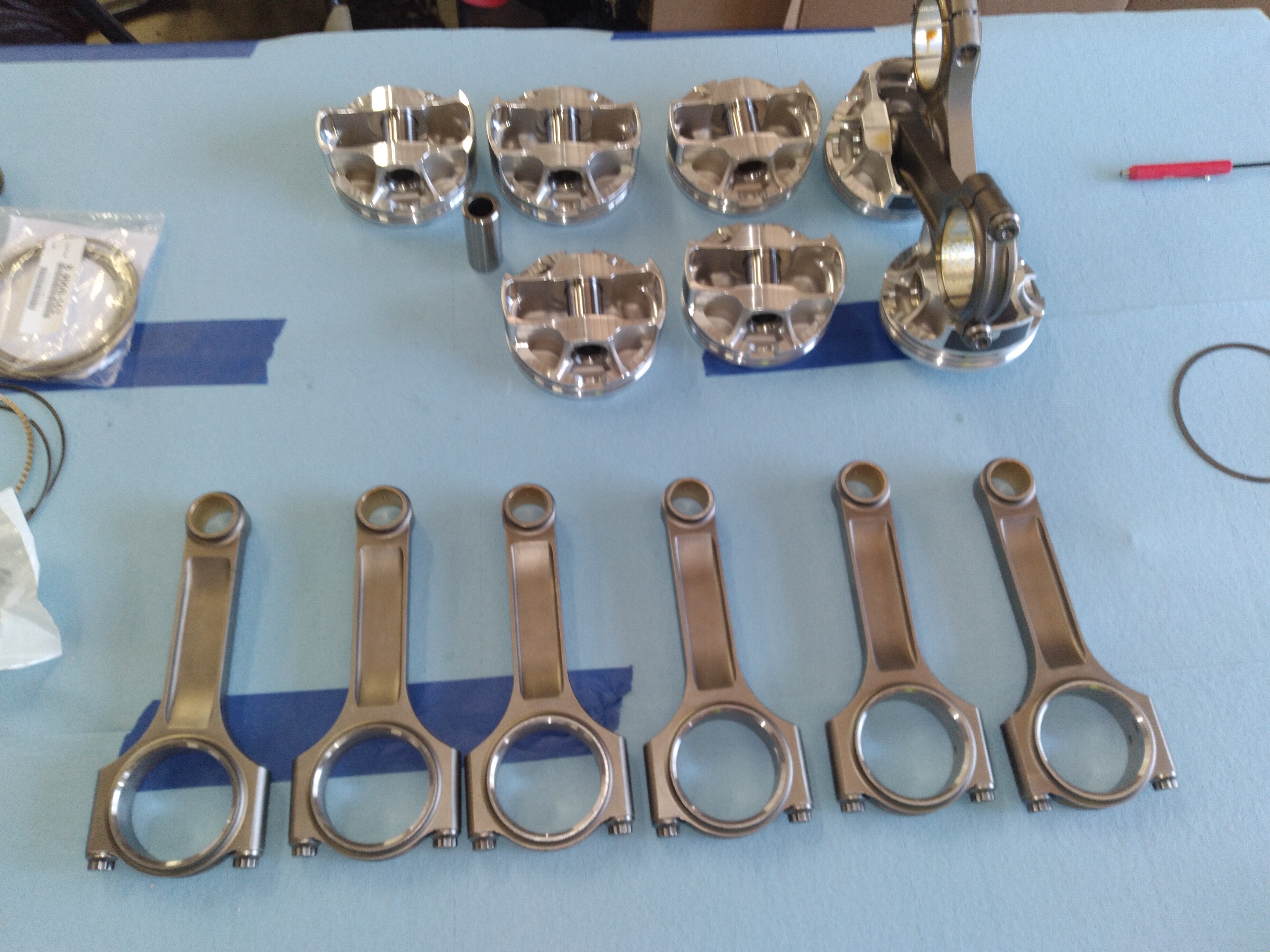

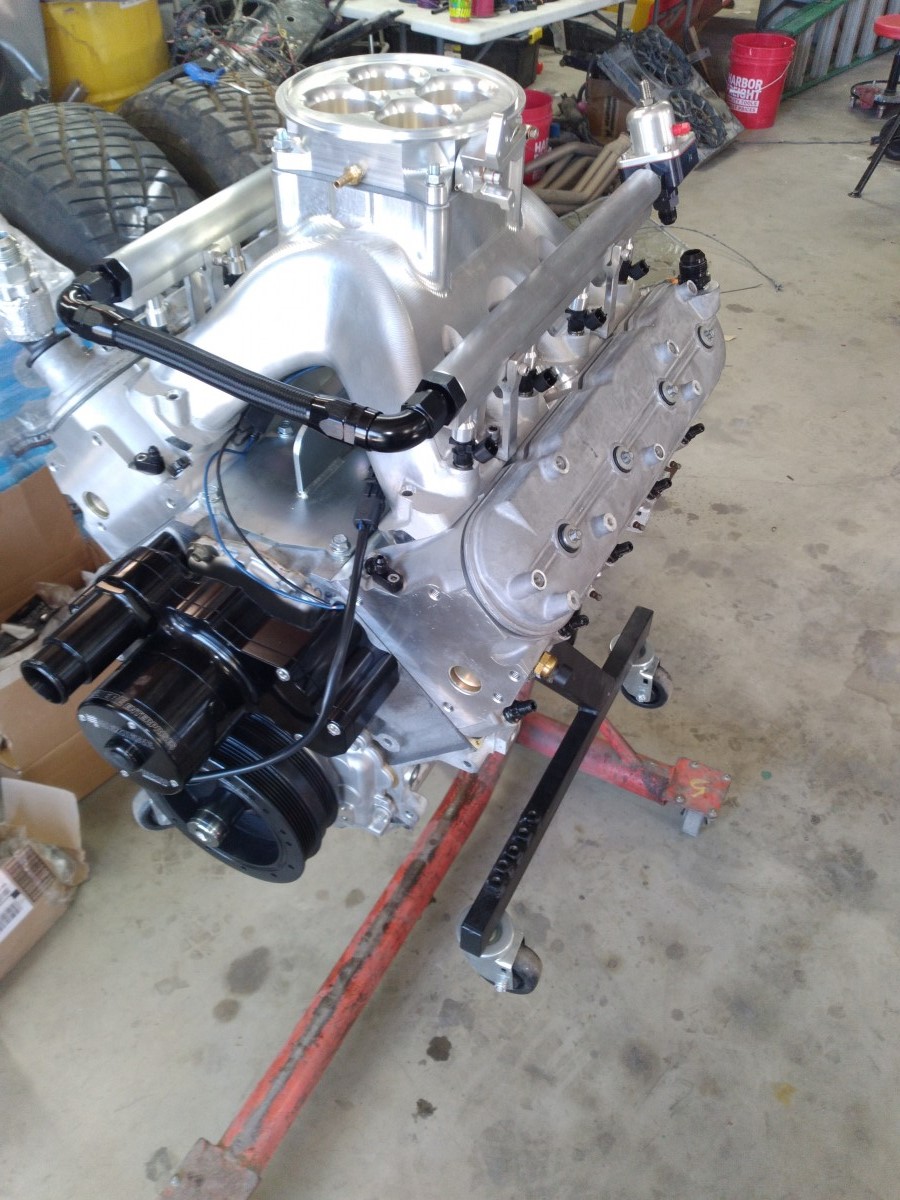

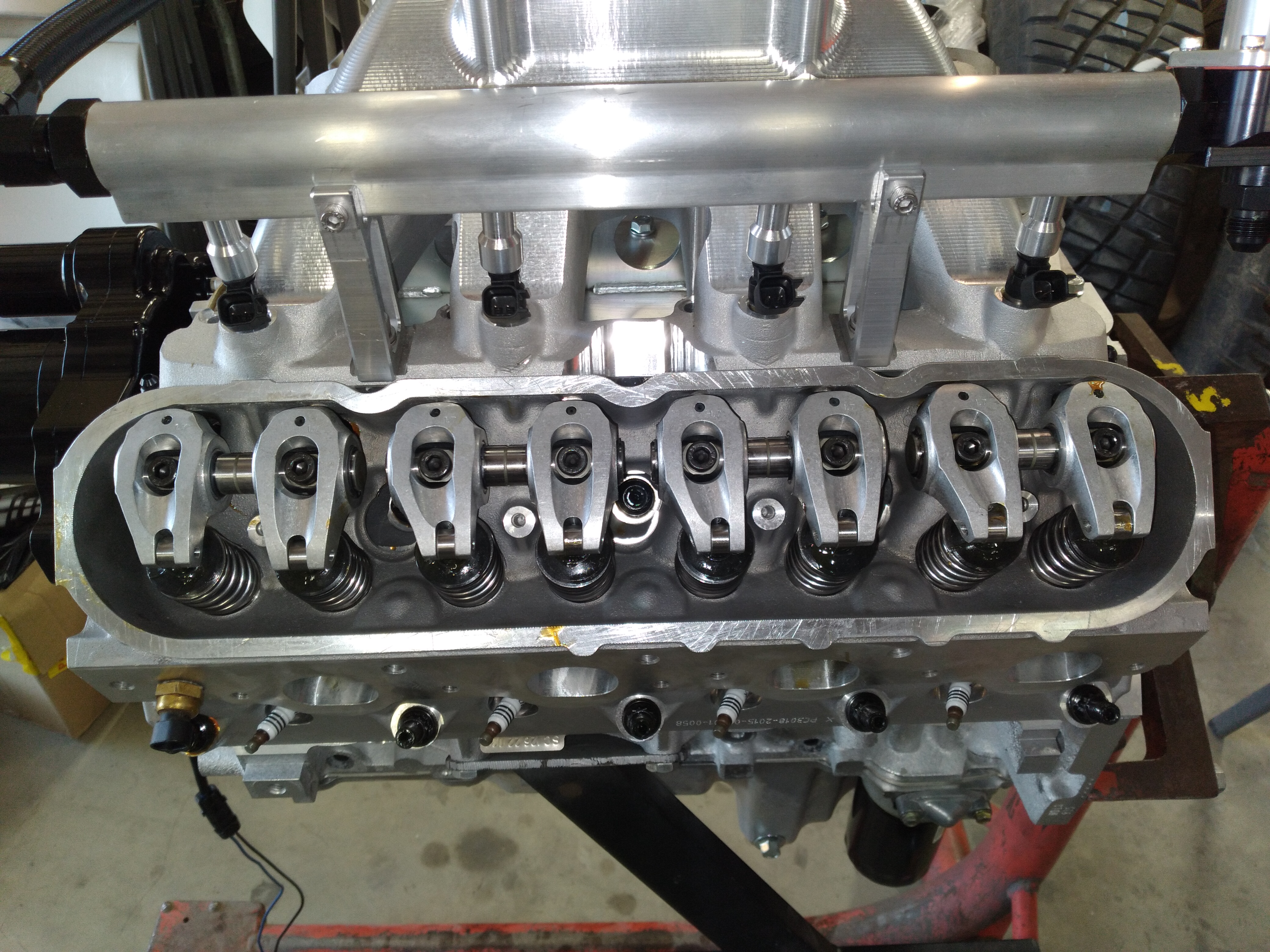

6.125 rods 11.6:1 compression AV gas Tuned open loop then the Delphi Mefi4B is closed loop wide band with fuel pressure safety/control/adjustment as well as oil pressure safety vs rpm. Yes, those are -12 fuel rails, the beauty of large rails is it helps absorb the harmonics of the injectors

ticktok vid link at end of first post





https://www.tiktok.com/t/ZTRPABTaJ/

[In-Tech]





[In-Tech]

My kiddos tiktok page video at bottom of first post.
I struggle getting pics off of my phone and have a lot more pics of other projects

[Gareth]

Holy shit yes!!!

Any pics of the car??

[In-Tech]

Hiya, and thanks. I'll have to dig pics off of the phone but there is pics in the tiktok video if you can view, plus you will get some sound of the nasty It's right at 698 fwhp now. If I can get some real heads on it, it should be 800-825hp at the cranky

[In-Tech]

As an engine builder/tuner I told the guys/girls...I am here to pass out lolipops and kick some ass and I'm fresh out of lolipops.

[In-Tech]

So, it turns out my phone automatically has been backing up my pics. I try to just use my phone for calling people
Anyhoosit, I have lots of pics if anyone wants to see more stuff




[In-Tech]

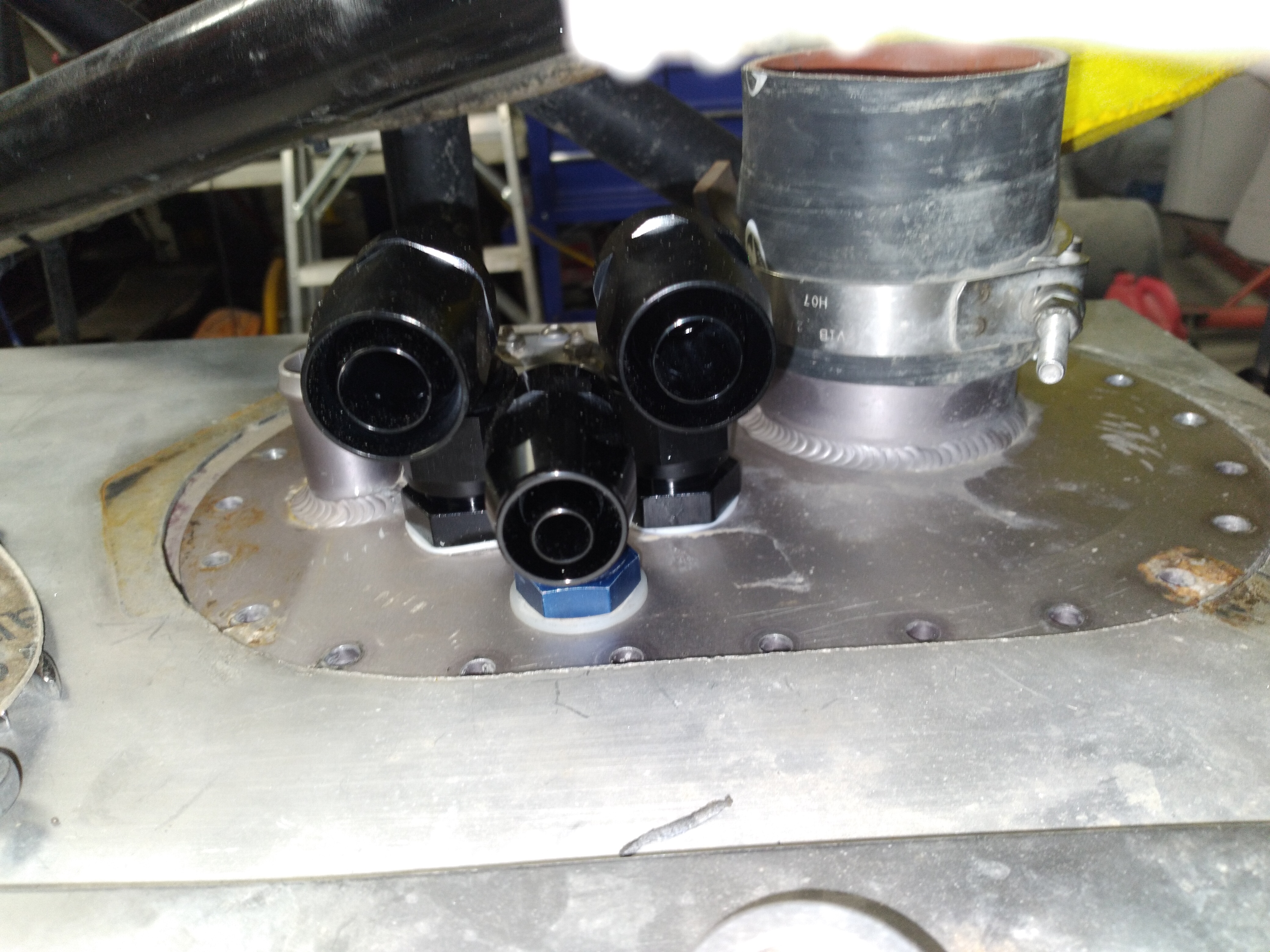

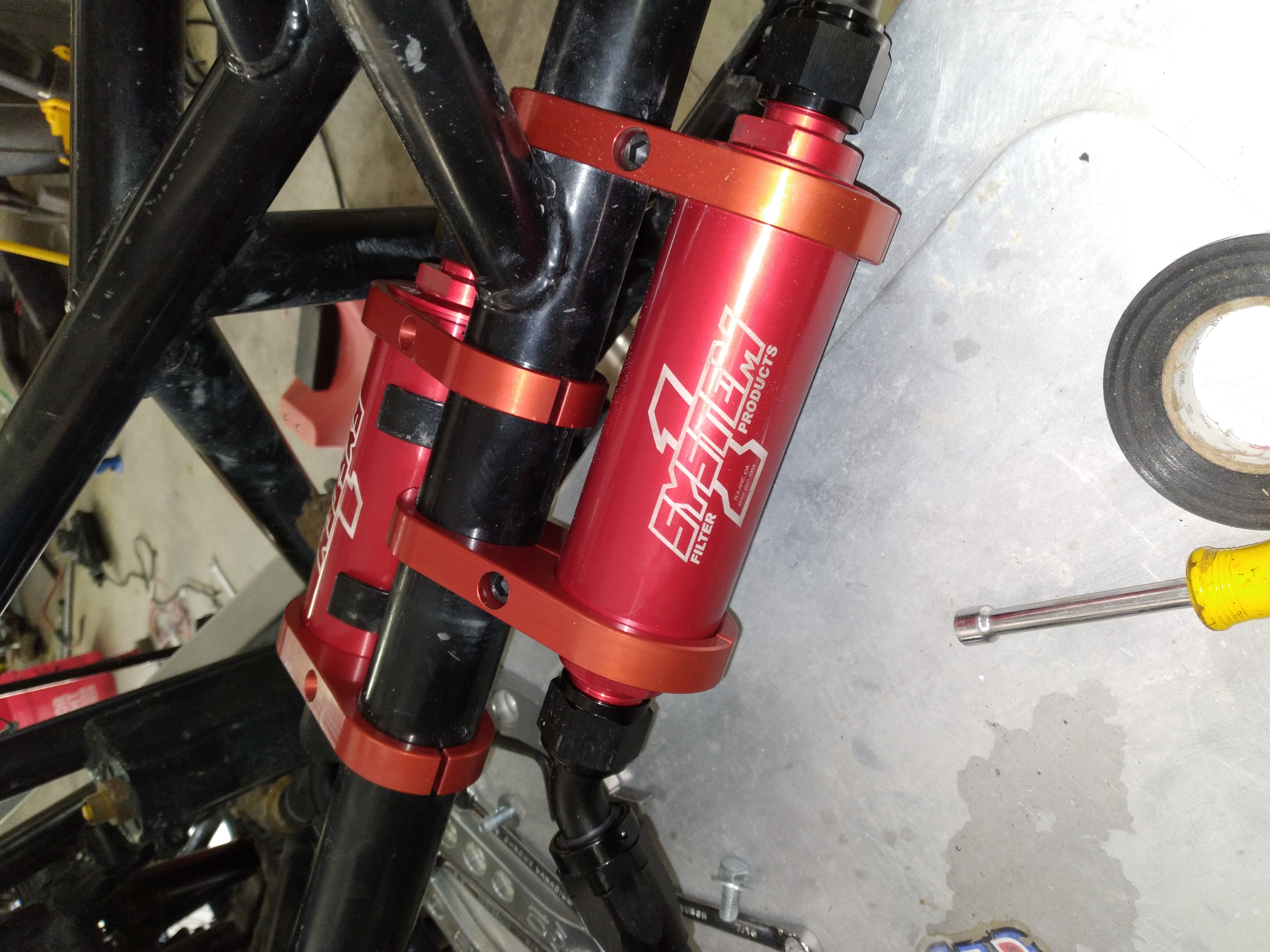

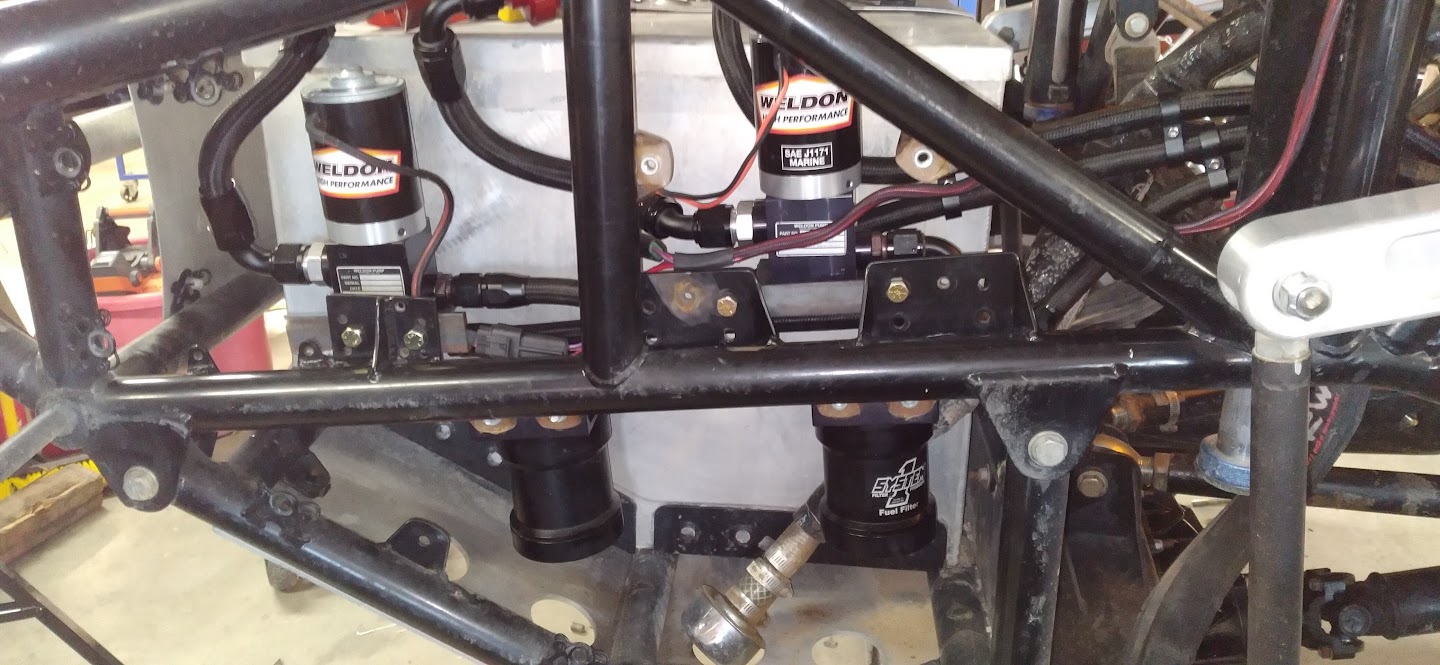

I couldn't find another db2015 so the backup pump is an overneeded db2025



[In-Tech]


[vlad01]

What cam has it got? I just noticed they look like hydr ones as the yella rockers aren't adjustable. This engine looks too serious to be using a hydr cam?
