aldl usb drivers vr v8 man

160 And 8192 Baud Aldl
Post Reply
2inil8
Posts: 56
Joined: Fri Jul 02, 2010 8:12 pm
cars: 1991 VN SS

aldl usb drivers vr v8 man

Post by 2inil8 »

hi guys havving a few dramas setting up my usb interface it was working on another laptop
but cant find the drivers to get it to work im using tp5 btw.
need help asap!
User avatar
VL400
Posts: 4991
Joined: Sun Mar 01, 2009 2:54 pm
cars: VL Calais and Toyota Landcruiser. Plus some toys :)
Location: Perth, WA
Contact:

Re: aldl usb drivers vr v8 man

Post by VL400 »

I pressume its one of the ones I sell? If so it uses the FTDI drivers from here .. http://www.ftdichip.com/Drivers/VCP.htm

Should then show up as a virtual com port under the device manager, provided its below com 10 TP can use it. If its higher than 10 you will need to use this tool to remove all FTDI drivers from the system .. http://www.ftdichip.com/Support/Utiliti ... r_v1.4.zip . Then re-install the drivers.
2inil8
Posts: 56
Joined: Fri Jul 02, 2010 8:12 pm
cars: 1991 VN SS

Re: aldl usb drivers vr v8 man

Post by 2inil8 »

hey i downloaded but no go its a new laptop with windows 7
looked up com port and it only got 1 i think
and its on com port 4.
nothing saying virtual com port.
User avatar
VL400
Posts: 4991
Joined: Sun Mar 01, 2009 2:54 pm
cars: VL Calais and Toyota Landcruiser. Plus some toys :)
Location: Perth, WA
Contact:

Re: aldl usb drivers vr v8 man

Post by VL400 »

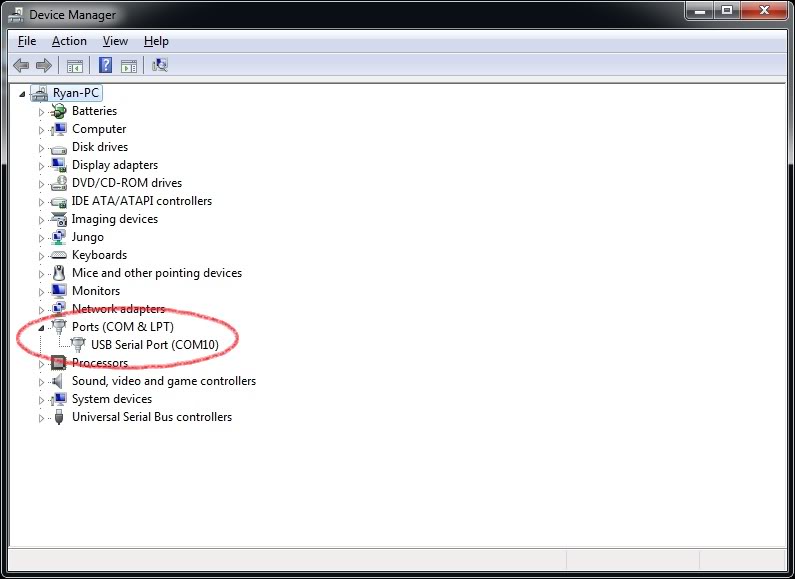

If the drivers are installed will see something like this once the board is plugged in...

If not, remove the drivers using the utility above. Then re-install them - extract them to a folder on your PC (download the windows 7 driver for 32 or 64bit depending on your system), then plug in the USB board. When it asks to install drivers point the wizzard to the location on your PC of the extracted drivers. Once finished will say the hardware is ready for use.
2inil8
Posts: 56
Joined: Fri Jul 02, 2010 8:12 pm
cars: 1991 VN SS

Re: aldl usb drivers vr v8 man

Post by 2inil8 »

i uninstalled then re installed and its on com port 3 but still nothing
could i be using the wrong definition file?
ecu is 16183082 vr man.i tried vr 12 v103 adx but no go did work on my old lap top.
User avatar
VL400
Posts: 4991
Joined: Sun Mar 01, 2009 2:54 pm
cars: VL Calais and Toyota Landcruiser. Plus some toys :)
Location: Perth, WA
Contact:

Re: aldl usb drivers vr v8 man

Post by VL400 »

Are the LEDs on the USB board flashing - should see a solid blue for power and the red and green flash with data when connecting. Should have echo set in the plugin preferences or in the ADX if not using plugin. Have you tried the flashtool?
2inil8
Posts: 56
Joined: Fri Jul 02, 2010 8:12 pm
cars: 1991 VN SS

Re: aldl usb drivers vr v8 man

Post by 2inil8 »

ah wrong com port setting in tuner pro it does have 2 rpm displys? missing timing....
but its working now.
User avatar
VL400
Posts: 4991
Joined: Sun Mar 01, 2009 2:54 pm
cars: VL Calais and Toyota Landcruiser. Plus some toys :)
Location: Perth, WA
Contact:

Re: aldl usb drivers vr v8 man

Post by VL400 »

Try downloading it again and use the TP5 adx in the zip, the one your using is for scannerpro so have converted it now and added to the zip.
2inil8
Posts: 56
Joined: Fri Jul 02, 2010 8:12 pm
cars: 1991 VN SS

Re: aldl usb drivers vr v8 man

Post by 2inil8 »

ok its all working now thank for the help appreciate very much.
cheers. :D
User avatar
VL400
Posts: 4991
Joined: Sun Mar 01, 2009 2:54 pm
cars: VL Calais and Toyota Landcruiser. Plus some toys :)
Location: Perth, WA
Contact:

Re: aldl usb drivers vr v8 man

Post by VL400 »

No probs glad its working now, the move from scanerpro to tunerpro will take some time for all ADX's to get converted - TP5 actually does convert most of it just misses the send/receive macro normally.
