VX VY Commodore Flashing on Bench

cfautos · Post by **cfautos** » Sun Dec 01, 2024 10:03 pm

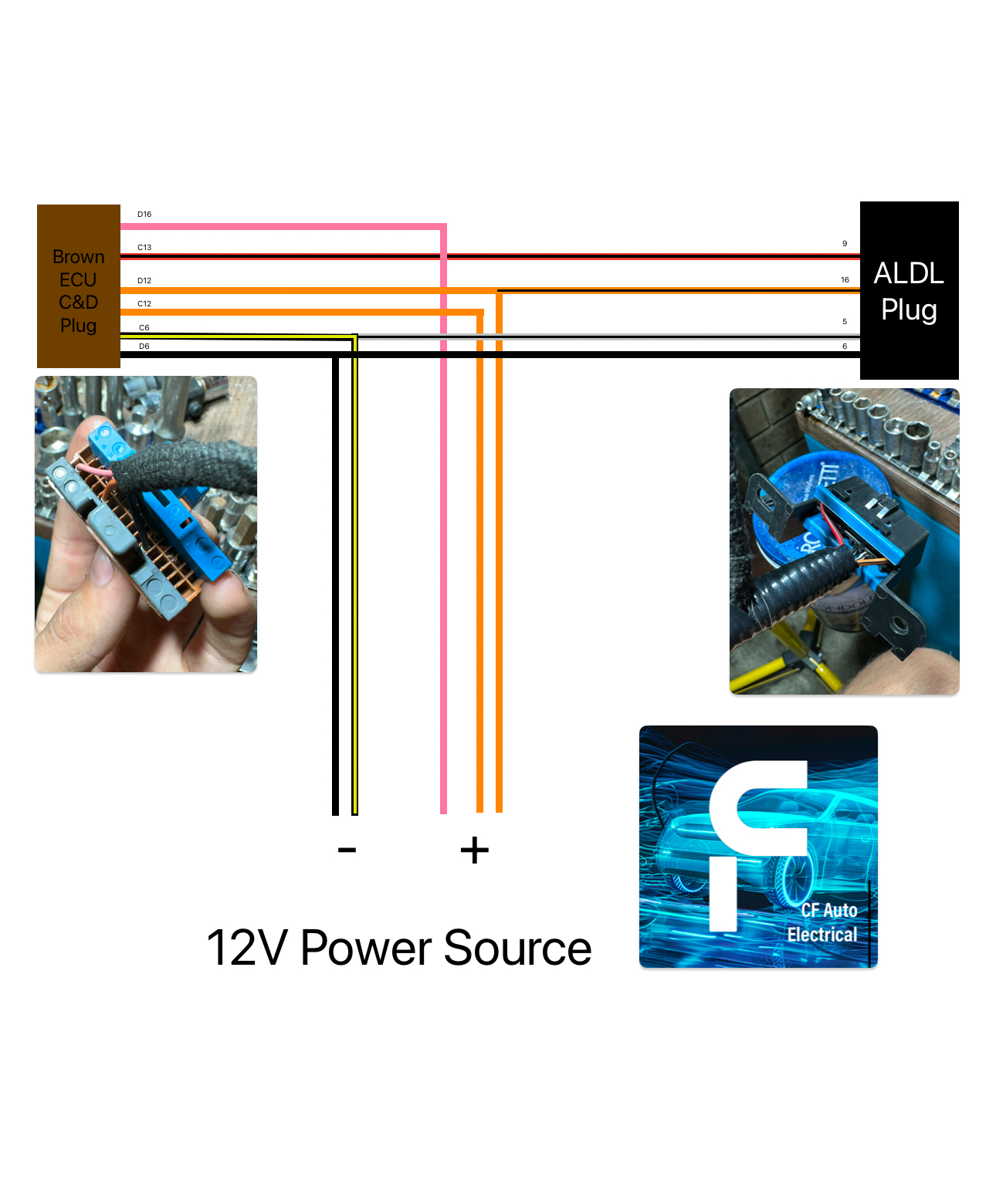

Good evening Fellas, I know it’s very old knowledge for a lot of you but wanted to post this schematic I whipped up labeling a super simple way to make up a working and tested bench harness for the flash based VX/VY computers. Hope it can help someone out!

Rhysk94 · Post by **Rhysk94** » Mon Dec 02, 2024 1:20 am

Video on youtube showing how to do this mate

cfautos · Post by **cfautos** » Mon Dec 02, 2024 10:03 am

Sorry mate just been and watched your video, Hadn’t seen it prior to posting this. Interesting to see that you’d found the same as me in that the earths from the other plugs weren’t necessary and you can get away with just the C&D plug. I figured that I’d post this just on the off chance it was helpful to someone and tried to replicate the stock coloured wires I’d found in the plugs I used just to make it as simple as I could for someone.

Ps quality video mate!

Post by **Gareth** » Mon Dec 02, 2024 10:06 am

It's very helpful, thanks for posting

Wade · Post by **Wade** » Tue Dec 03, 2024 12:10 am

Awesome cheers mate
