Re: PCM Hammer 98/99 Black Box Support

Post by antus »

A bit more work has been done on this and I am happy to call it a success. The loose ends are mostly tidied up and its working reliably on my hardware. Service Numbers 9366810 and 16263494 are in, and according to ebay advertisement interchange data I still have some to go, but thats just churning through known OSID lists to get them detected.

Thanks Solitaire for your bin posted here viewtopic.php?p=118986#p118986
I didn't have a lot of BlackBox files around and was able to use your image to test a flash that updates enough sectors that I could consider it a fair test of the flash kernel.
[01:15:00:897] PCM Hammer (16/07/2024, 1:13 PM)
[01:15:00:906] Tuesday, July 16 2024 @01:15:00:90
[01:15:00:988] AVT 852 Reset OK
[01:15:01:008] Thanks for using PCM Hammer.
[01:15:01:014] AVT Firmware 1.5
[01:15:13:661] S:\bins\blackbox\gmc yukon_ab28f400bx_99_ori_byteswap.bin
[01:15:13:737] Identifying 512kb file.
[01:15:13:742] File is Vortec BlackBox 512Kb.
[01:15:13:749] File operating system ID: 9365085
[01:15:13:753] File is Vortec BlackBox 512Kb.
[01:15:13:757] Start End Stored Needed Verdict Segment Name
[01:15:13:763] 20002 668CF 4DF6 4DF6 Good Operating system
[01:15:13:768] 08002 0E651 0473 0473 Good Engine calibration
[01:15:13:774] 0E654 0EF93 2487 2487 Good Engine diagnostics.
[01:15:13:780] 0EF96 0F0D1 44C2 44C2 Good Transmission calibration
[01:15:13:786] 0F0D4 0F109 75E4 75E4 Good Transmission diagnostics
[01:15:13:794] Requesting operating system ID...
[01:15:13:934] File is Vortec BlackBox 512Kb.
[01:15:13:941] PCM and file are both for the same Hardware BlackBox
[01:15:13:948] File is Vortec BlackBox 512Kb.
[01:15:13:955] PCM and file are both operating system 9365085
[01:15:14:121] Unlock succeeded.
[01:15:14:192] Attempting switch to VPW 4x
[01:15:14:221] Module 0x10 (engine controller) has agreed to enter high-speed mode.
[01:15:17:937] Kernel upload 100% complete.
[01:15:19:067] Kernel Version: 82400200
[01:15:19:084] Kernel uploaded to PCM succesfully.
[01:15:19:174] File is Vortec BlackBox 512Kb.
[01:15:19:181] PCM and image file are both operating system 9365085
[01:15:19:252] Flash chip: Intel 28F400B, 512kb
[01:15:19:263] Calculating CRCs from file.
[01:15:19:274] Requesting CRCs from PCM.
[01:15:19:281] Range File CRC PCM CRC Verdict Purpose
[01:15:22:524] 060000-07FFFF F1FE7882 2B5D35B4 Different General
[01:15:25:781] 040000-05FFFF 7F2C45F4 7F2C45F4 Same General
[01:15:29:020] 020000-03FFFF F45CAD6A F45CAD6A Same General
[01:15:31:504] 008000-01FFFF 1206014E DE58A712 Different General
[01:15:31:860] 006000-007FFF 85B5BB36 85B5BB36 Same General
[01:15:32:214] 004000-005FFF 85B5BB36 27A978EB Different General
[01:15:32:757] 000000-003FFF EF6FF421 EF6FF421 Same General
[01:15:32:784] Processing range 060000-07FFFF
[01:15:32:801] Erasing.
[01:15:34:204] Writing...
[01:16:45:002] Processing range 008000-01FFFF
[01:16:45:014] Erasing.
[01:16:46:258] Writing...
[01:17:39:390] Processing range 004000-005FFF
[01:17:39:402] Erasing.
[01:17:40:243] Writing...
[01:17:44:707] Calculating CRCs from file.
[01:17:44:725] Requesting CRCs from PCM.
[01:17:44:736] Range File CRC PCM CRC Verdict Purpose
[01:17:47:975] 060000-07FFFF F1FE7882 F1FE7882 Same General
[01:17:51:247] 040000-05FFFF 7F2C45F4 7F2C45F4 Same General
[01:17:54:522] 020000-03FFFF F45CAD6A F45CAD6A Same General
[01:17:57:008] 008000-01FFFF 1206014E 1206014E Same General
[01:17:57:364] 006000-007FFF 85B5BB36 85B5BB36 Same General
[01:17:57:700] 004000-005FFF 85B5BB36 85B5BB36 Same General
[01:17:58:231] 000000-003FFF EF6FF421 EF6FF421 Same General
[01:17:58:293] All relevant ranges are identical.
[01:17:58:321] All write-request messages succeeded on the first try. You have an excellent connection to the PCM.
[01:17:58:333] Flash successful!
[01:17:58:411] Clearing trouble codes.
[01:17:59:540] Elapsed time 00:02:45.4132919
Have you read the FAQ? For lots of information and links to significant threads see here: http://pcmhacking.net/forums/viewtopic.php?f=7&t=1396
Top
User avatar
antus
Site Admin
Posts: 8642
Joined: Sat Feb 28, 2009 8:34 pm
cars: TX Gemini 2L Twincam
TX Gemini SR20 18psi
Datsun 1200 Ute
Subaru Blitzen '06 EZ30 4th gen, 3.0R Spec B
Contact:
Contact antus

Re: PCM Hammer 98/99 Black Box Support

Post by antus »

If anyone has a 4 connector black box on the bench and would like to help test this version, send me a PM.
Have you read the FAQ? For lots of information and links to significant threads see here: http://pcmhacking.net/forums/viewtopic.php?f=7&t=1396
Top
User avatar
Tazzi
Posts: 3499
Joined: Thu May 17, 2012 8:53 pm
cars: VE SS Ute
Location: WA
Contact:
Contact Tazzi

Re: PCM Hammer 98/99 Black Box Support

Post by Tazzi »

antus wrote: ↑Tue Jul 16, 2024 12:45 am
[12:12:54:092] Flash successful!
[12:12:54:169] Clearing trouble codes.
[12:12:55:284] Elapsed time 00:00:36.0231198
Someones been a busy bee!!!
Awesome work!!!!!
Your Local Aussie Reverse Engineer
Contact for Software/Hardware development and Reverse Engineering
Site:https://www.envyouscustoms.com
Mob:+61406 140 726
Top
User avatar
antus
Site Admin
Posts: 8642
Joined: Sat Feb 28, 2009 8:34 pm
cars: TX Gemini 2L Twincam
TX Gemini SR20 18psi
Datsun 1200 Ute
Subaru Blitzen '06 EZ30 4th gen, 3.0R Spec B
Contact:
Contact antus

Re: PCM Hammer 98/99 Black Box Support

Post by antus »

Thanks! Im actually ready to move P04_256k, P04, P08, E54, BlackBox in to develop with this merge request. If NSFW approves, he has a chance to put the hanging exception code in (or not - its a branch he has ready but not merged), then I think its time to build a release candidate and ask for some public testing, then get all this stuff out there! https://github.com/LegacyNsfw/PcmHacks/pull/346/files

I also have a P05b thats in this country, but not in my hands yet. I know thats dual protocol, I think it should not be too hard to get it implemented on the VPW side, so there is a chance that'll get in the next pcmhammer release depending on how things go.
Have you read the FAQ? For lots of information and links to significant threads see here: http://pcmhacking.net/forums/viewtopic.php?f=7&t=1396
Top
User avatar
antus
Site Admin
Posts: 8642
Joined: Sat Feb 28, 2009 8:34 pm
cars: TX Gemini 2L Twincam
TX Gemini SR20 18psi
Datsun 1200 Ute
Subaru Blitzen '06 EZ30 4th gen, 3.0R Spec B
Contact:
Contact antus

Re: PCM Hammer 98/99 Black Box Support

Post by antus »

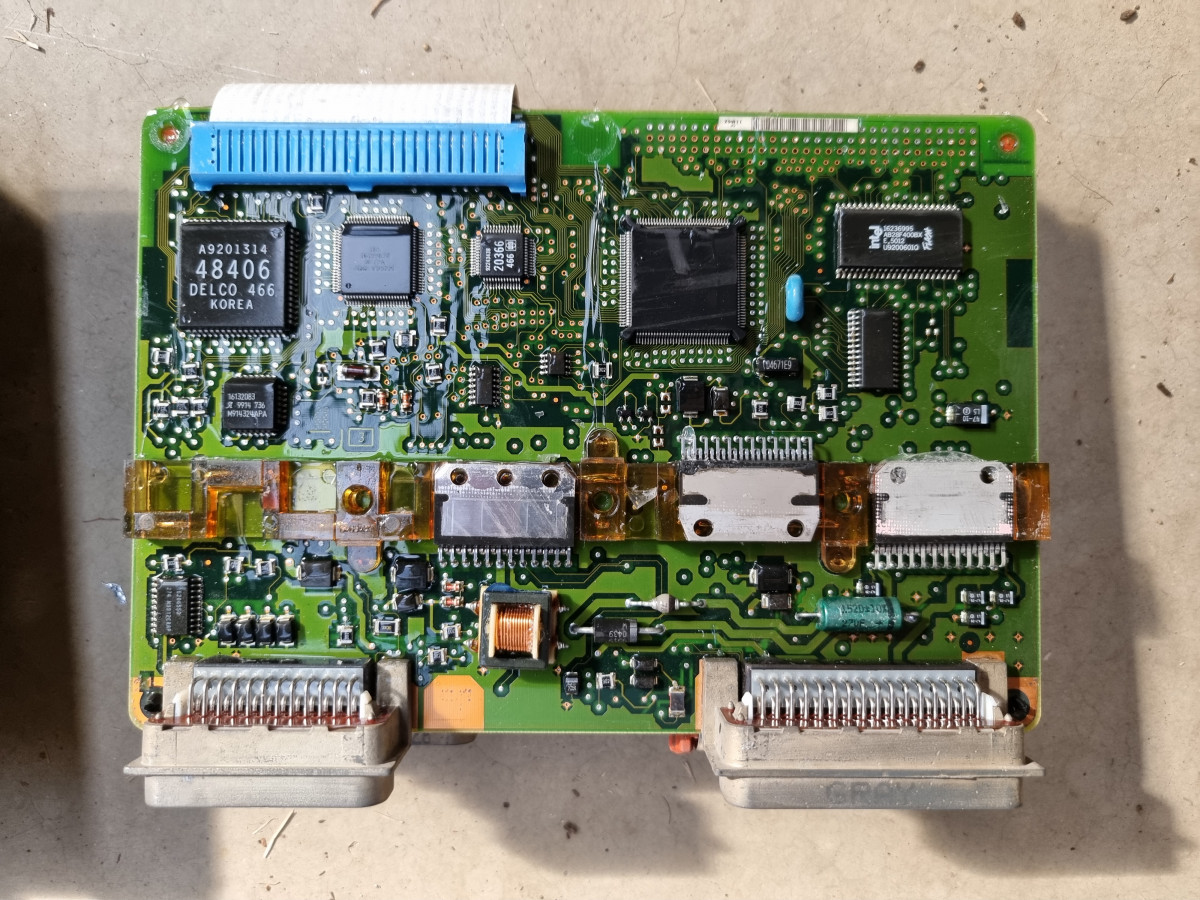

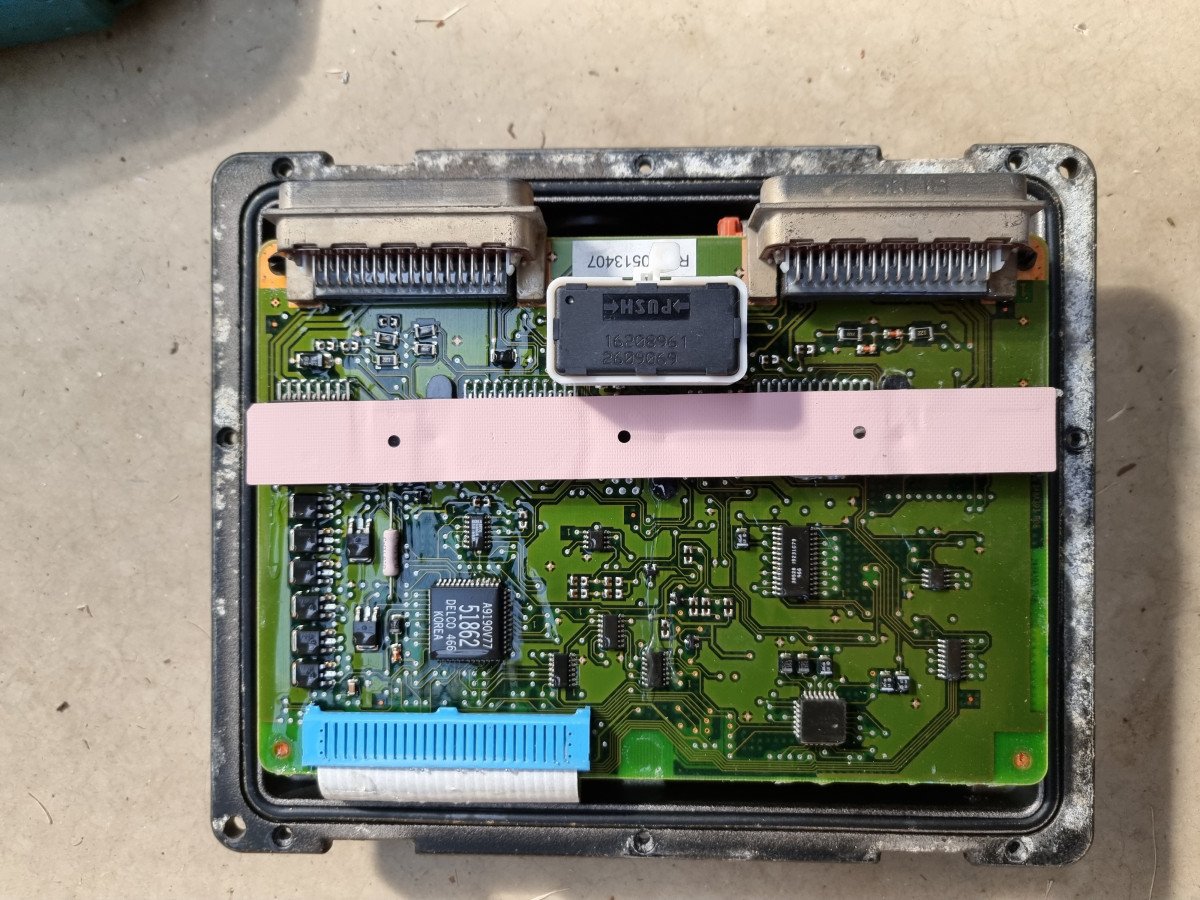

Another forum member just asked me for pics of the 4 connector black box boards, so I'll also post here.
